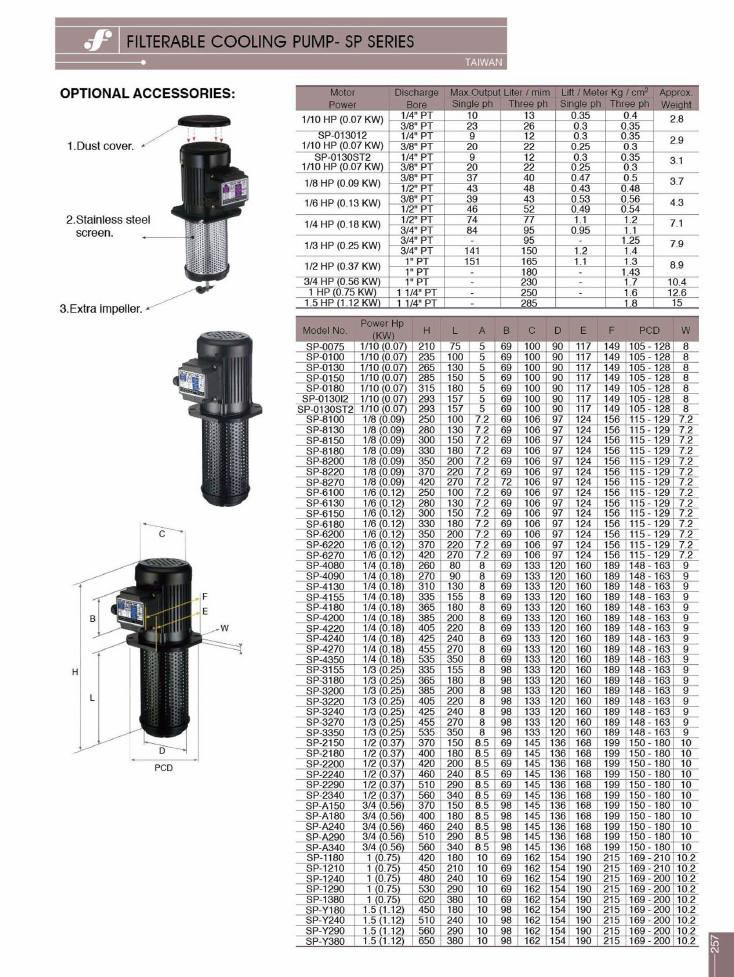

Frejoth accessory catalogue · Page 260

FILTERABLE COOLING PUMP- SP SERIES

Models on this page

SP-0075SP-0100SP-0130SP-0130I2SP-0130ST2SP-0150SP-0180SP-1180SP-1210SP-1240SP-1290SP-1380SP-2150SP-2180SP-2200SP-2240SP-2290SP-2340SP-3155SP-3180SP-3200SP-3220SP-3240SP-3270SP-3350SP-4080SP-4090SP-4130SP-4155SP-4180SP-4200SP-4220SP-4240SP-4270SP-4350SP-6100SP-6130SP-6150SP-6180SP-6200SP-6220SP-6270SP-8100SP-8130SP-8150SP-8180SP-8200SP-8220SP-8270SP-A150SP-A180SP-A240SP-A290SP-A340SP-Y180SP-Y240SP-Y290SP-Y380

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

FILTERABLE COOLING PUMP - SP SERIES

SP · Taiwan

Dust cover.
Stainless steel screen.
Extra impeller.

motor_performance (mixed)
motor_power	discharge_bore	max_output_liter_min_single_ph	max_output_liter_min_three_ph	lift_meter_kg_cm2_single_ph	lift_meter_kg_cm2_three_ph	approx_weight_kg
1/10 HP (0.07 KW)	1/4" PT	10	13	0.35	0.4	2.8
1/10 HP (0.07 KW)	3/8" PT	23	26	0.3	0.35	2.8
SP-013012 1/10 HP (0.07 KW)	1/4" PT	9	12	0.3	0.35	2.9
SP-013012 1/10 HP (0.07 KW)	3/8" PT	20	22	0.25	0.3	2.9
SP-0130ST2 1/10 HP (0.07 KW)	1/4" PT	9	12	0.3	0.35	3.1
SP-0130ST2 1/10 HP (0.07 KW)	3/8" PT	20	22	0.25	0.3	3.1
1/8 HP (0.09 KW)	3/8" PT	37	40	0.47	0.5	3.7
1/8 HP (0.09 KW)	1/2" PT	43	48	0.43	0.48	3.7
1/6 HP (0.13 KW)	3/8" PT	39	43	0.53	0.56	4.3
1/6 HP (0.13 KW)	1/2" PT	46	52	0.49	0.54	4.3
1/4 HP (0.18 KW)	1/2" PT	74	77	1.1	1.2	7.1
1/4 HP (0.18 KW)	3/4" PT	84	95	0.95	1.1	7.1
1/3 HP (0.25 KW)	3/4" PT	—	95	—	1.25	7.9
1/3 HP (0.25 KW)	3/4" PT	141	150	1.2	1.4	7.9
1/2 HP (0.37 KW)	1" PT	151	165	1.1	1.3	8.9
1/2 HP (0.37 KW)	1" PT	—	180	—	1.43	8.9
3/4 HP (0.56 KW)	1" PT	—	230	—	1.7	10.4
1 HP (0.75 KW)	1 1/4" PT	—	250	—	1.6	12.6
1.5 HP (1.12 KW)	1 1/4" PT	—	285	—	1.8	15

dimensions (mm)
model_no	power_hp_kw	h	l	a	b	c	d	e	f	pcd	w
SP-0075	1/10 (0.07)	210	75	5	69	100	90	117	149	105 - 128	8
SP-0100	1/10 (0.07)	235	100	5	69	100	90	117	149	105 - 128	8
SP-0130	1/10 (0.07)	265	130	5	69	100	90	117	149	105 - 128	8
SP-0150	1/10 (0.07)	285	150	5	69	100	90	117	149	105 - 128	8
SP-0180	1/10 (0.07)	315	180	5	69	100	90	117	149	105 - 128	8
SP-0130I2	1/10 (0.07)	293	157	5	69	100	90	117	149	105 - 128	8
SP-0130ST2	1/10 (0.07)	293	157	5	69	100	90	117	149	105 - 128	8
SP-8100	1/8 (0.09)	250	100	7.2	69	106	97	124	156	115 - 129	7.2
SP-8130	1/8 (0.09)	280	130	7.2	69	106	97	124	156	115 - 129	7.2
SP-8150	1/8 (0.09)	300	150	7.2	69	106	97	124	156	115 - 129	7.2
SP-8180	1/8 (0.09)	330	180	7.2	69	106	97	124	156	115 - 129	7.2
SP-8200	1/8 (0.09)	350	200	7.2	69	106	97	124	156	115 - 129	7.2
SP-8220	1/8 (0.09)	370	220	7.2	69	106	97	124	156	115 - 129	7.2
SP-8270	1/8 (0.09)	420	270	7.2	72	106	97	124	156	115 - 129	7.2
SP-6100	1/6 (0.12)	250	100	7.2	69	106	97	124	156	115 - 129	7.2
SP-6130	1/6 (0.12)	280	130	7.2	69	106	97	124	156	115 - 129	7.2
SP-6150	1/6 (0.12)	300	150	7.2	69	106	97	124	156	115 - 129	7.2
SP-6180	1/6 (0.12)	330	180	7.2	69	106	97	124	156	115 - 129	7.2
SP-6200	1/6 (0.12)	350	200	7.2	69	106	97	124	156	115 - 129	7.2
SP-6220	1/6 (0.12)	370	220	7.2	69	106	97	124	156	115 - 129	7.2
SP-6270	1/6 (0.12)	420	270	7.2	69	106	97	124	156	115 - 129	7.2
SP-4080	1/4 (0.18)	260	80	8	69	133	120	160	189	148 - 163	9
SP-4090	1/4 (0.18)	270	90	8	69	133	120	160	189	148 - 163	9
SP-4130	1/4 (0.18)	310	130	8	69	133	120	160	189	148 - 163	9
SP-4155	1/4 (0.18)	335	155	8	69	133	120	160	189	148 - 163	9
SP-4180	1/4 (0.18)	365	180	8	69	133	120	160	189	148 - 163	9
SP-4200	1/4 (0.18)	385	200	8	69	133	120	160	189	148 - 163	9
SP-4220	1/4 (0.18)	405	220	8	69	133	120	160	189	148 - 163	9
SP-4240	1/4 (0.18)	425	240	8	69	133	120	160	189	148 - 163	9
SP-4270	1/4 (0.18)	455	270	8	69	133	120	160	189	148 - 163	9
SP-4350	1/4 (0.18)	535	350	8	69	133	120	160	189	148 - 163	9
SP-3155	1/3 (0.25)	335	155	8	98	133	120	160	189	148 - 163	9
SP-3180	1/3 (0.25)	365	180	8	98	133	120	160	189	148 - 163	9
SP-3200	1/3 (0.25)	385	200	8	98	133	120	160	189	148 - 163	9
SP-3220	1/3 (0.25)	405	220	8	98	133	120	160	189	148 - 163	9
SP-3240	1/3 (0.25)	425	240	8	98	133	120	160	189	148 - 163	9
SP-3270	1/3 (0.25)	455	270	8	98	133	120	160	189	148 - 163	9
SP-3350	1/3 (0.25)	535	350	8	98	133	120	160	189	148 - 163	9
SP-2150	1/2 (0.37)	370	150	8.5	69	145	136	168	199	150 - 180	10
SP-2180	1/2 (0.37)	400	180	8.5	69	145	136	168	199	150 - 180	10
SP-2200	1/2 (0.37)	420	200	8.5	69	145	136	168	199	150 - 180	10
SP-2240	1/2 (0.37)	460	240	8.5	69	145	136	168	199	150 - 180	10
SP-2290	1/2 (0.37)	510	290	8.5	69	145	136	168	199	150 - 180	10
SP-2340	1/2 (0.37)	560	340	8.5	69	145	136	168	199	150 - 180	10
SP-A150	3/4 (0.56)	370	150	8.5	98	145	136	168	199	150 - 180	10
SP-A180	3/4 (0.56)	400	180	8.5	98	145	136	168	199	150 - 180	10
SP-A240	3/4 (0.56)	460	240	8.5	98	145	136	168	199	150 - 180	10
SP-A290	3/4 (0.56)	510	290	8.5	98	145	136	168	199	150 - 180	10
SP-A340	3/4 (0.56)	560	340	8.5	98	145	136	168	199	150 - 180	10
SP-1180	1 (0.75)	420	180	10	69	162	154	190	215	169 - 210	10.2
SP-1210	1 (0.75)	450	210	10	69	162	154	190	215	169 - 210	10.2
SP-1240	1 (0.75)	480	240	10	69	162	154	190	215	169 - 200	10.2
SP-1290	1 (0.75)	530	290	10	69	162	154	190	215	169 - 200	10.2
SP-1380	1 (0.75)	620	380	10	69	162	154	190	215	169 - 200	10.2
SP-Y180	1.5 (1.12)	450	180	10	98	162	154	190	215	169 - 200	10.2
SP-Y240	1.5 (1.12)	510	240	10	98	162	154	190	215	169 - 200	10.2
SP-Y290	1.5 (1.12)	560	290	10	98	162	154	190	215	169 - 200	10.2
SP-Y380	1.5 (1.12)	650	380	10	98	162	154	190	215	169 - 200	10.2

Order references
Code	Model
on request	SP-0150
on request	SP-0075
on request	SP-0100
on request	SP-0130
on request	SP-0180
on request	SP-0130I2
on request	SP-0130ST2
on request	SP-8100
on request	SP-8130
on request	SP-8150
on request	SP-8180
on request	SP-8200
on request	SP-8220
on request	SP-8270
on request	SP-6100
on request	SP-6130
on request	SP-6150
on request	SP-6180
on request	SP-6200
on request	SP-6220
on request	SP-6270
on request	SP-4080
on request	SP-4090
on request	SP-4130
on request	SP-4155
on request	SP-4180
on request	SP-4200
on request	SP-4220
on request	SP-4240
on request	SP-4270
on request	SP-4350
on request	SP-3155
on request	SP-3180
on request	SP-3200
on request	SP-3220
on request	SP-3240
on request	SP-3270
on request	SP-3350
on request	SP-2150
on request	SP-2180
on request	SP-2200
on request	SP-2240
on request	SP-2290
on request	SP-2340
on request	SP-A150
on request	SP-A180
on request	SP-A240
on request	SP-A290
on request	SP-A340
on request	SP-1180
on request	SP-1210
on request	SP-1240
on request	SP-1290
on request	SP-1380
on request	SP-Y180
on request	SP-Y240
on request	SP-Y290
on request	SP-Y380

The three features listed are printed on this page under the heading 'OPTIONAL ACCESSORIES:'.
