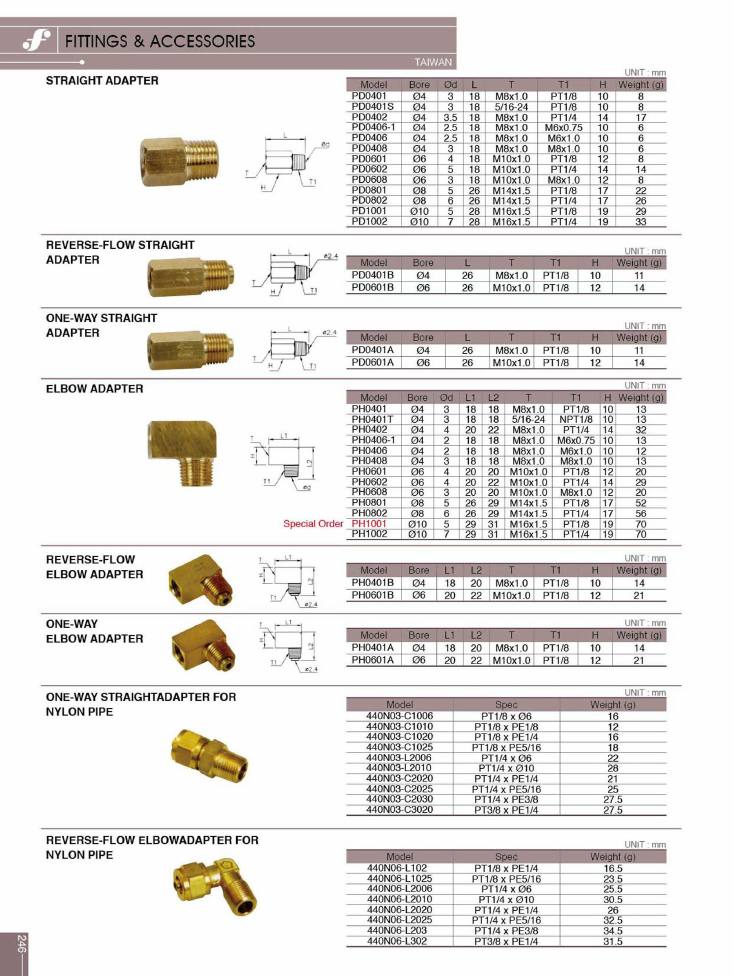

Frejoth accessory catalogue · Page 249
FITTINGS & ACCESSORIES
Models on this page
440N03-C1006440N03-C1010440N03-C1020440N03-C1025440N03-C2020440N03-C2025440N03-C2030440N03-C3020440N03-L2006440N03-L2010440N06-L102440N06-L1025440N06-L2006440N06-L2010440N06-L2020440N06-L2025440N06-L203440N06-L302PD0401PD0401APD0401BPD0401SPD0402PD0406PD0406-1PD0408PD0601PD0601APD0601BPD0602PD0608PD0801PD0802PD1001PD1002PH0401PH0401APH0401BPH0401TPH0402PH0406PH0406-1PH0408PH0601PH0601APH0601BPH0602PH0608PH0801PH0802PH1001PH1002
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
STRAIGHT ADAPTER
TAIWAN
| model | bore | od | l | t | t1 | h | weight_g |
|---|---|---|---|---|---|---|---|
| PD0401 | Ø4 | 3 | 18 | M8x1.0 | PT1/8 | 10 | 8 |
| PD0401S | Ø4 | 3 | 18 | 5/16-24 | PT1/8 | 10 | 8 |
| PD0402 | Ø4 | 3.5 | 18 | M8x1.0 | PT1/4 | 14 | 17 |
| PD0406-1 | Ø4 | 2.5 | 18 | M8x1.0 | M6x0.75 | 10 | 6 |
| PD0406 | Ø4 | 2.5 | 18 | M8x1.0 | M6x1.0 | 10 | 6 |
| PD0408 | Ø4 | 3 | 18 | M8x1.0 | M8x1.0 | 10 | 6 |
| PD0601 | Ø6 | 4 | 18 | M10x1.0 | PT1/8 | 12 | 8 |
| PD0602 | Ø6 | 5 | 18 | M10x1.0 | PT1/4 | 14 | 14 |
| PD0608 | Ø6 | 3 | 18 | M10x1.0 | M8x1.0 | 12 | 8 |
| PD0801 | Ø8 | 5 | 26 | M14x1.5 | PT1/8 | 17 | 22 |
| PD0802 | Ø8 | 6 | 26 | M14x1.5 | PT1/4 | 17 | 26 |
| PD1001 | Ø10 | 5 | 28 | M16x1.5 | PT1/8 | 19 | 29 |
| PD1002 | Ø10 | 7 | 28 | M16x1.5 | PT1/4 | 19 | 33 |
| Code | Model |
|---|---|
| on request | PD0801 |
| on request | PD0401 |
| on request | PD0401S |
| on request | PD0402 |
| on request | PD0406-1 |
| on request | PD0406 |
| on request | PD0408 |
| on request | PD0601 |
| on request | PD0602 |
| on request | PD0608 |
| on request | PD0802 |
| on request | PD1001 |
| on request | PD1002 |
REVERSE-FLOW STRAIGHT ADAPTER
TAIWAN
| model | bore | l | t | t1 | h | weight_g |
|---|---|---|---|---|---|---|
| PD0401B | Ø4 | 26 | M8x1.0 | PT1/8 | 10 | 11 |
| PD0601B | Ø6 | 26 | M10x1.0 | PT1/8 | 12 | 14 |
| Code | Model |
|---|---|
| on request | PD0401B |
| on request | PD0601B |
ONE-WAY STRAIGHT ADAPTER
TAIWAN
| model | bore | l | t | t1 | h | weight_g |
|---|---|---|---|---|---|---|
| PD0401A | Ø4 | 26 | M8x1.0 | PT1/8 | 10 | 11 |
| PD0601A | Ø6 | 26 | M10x1.0 | PT1/8 | 12 | 14 |
| Code | Model |
|---|---|
| on request | PD0401A |
| on request | PD0601A |
ELBOW ADAPTER
TAIWAN
| model | bore | od | l1 | l2 | t | t1 | h | weight_g |
|---|---|---|---|---|---|---|---|---|
| PH0401 | Ø4 | 3 | 18 | 18 | M8x1.0 | PT1/8 | 10 | 13 |
| PH0401T | Ø4 | 3 | 18 | 18 | 5/16-24 | NPT1/8 | 10 | 13 |
| PH0402 | Ø4 | 4 | 20 | 22 | M8x1.0 | PT1/4 | 14 | 32 |
| PH0406-1 | Ø4 | 2 | 18 | 18 | M8x1.0 | M6x0.75 | 10 | 13 |
| PH0406 | Ø4 | 2 | 18 | 18 | M8x1.0 | M6x1.0 | 10 | 12 |
| PH0408 | Ø4 | 3 | 18 | 18 | M8x1.0 | M8x1.0 | 10 | 13 |
| PH0601 | Ø6 | 4 | 20 | 20 | M10x1.0 | PT1/8 | 12 | 20 |
| PH0602 | Ø6 | 4 | 20 | 22 | M10x1.0 | PT1/4 | 14 | 29 |
| PH0608 | Ø6 | 3 | 20 | 20 | M10x1.0 | M8x1.0 | 12 | 20 |
| PH0801 | Ø8 | 5 | 26 | 29 | M14x1.5 | PT1/8 | 17 | 52 |
| PH0802 | Ø8 | 6 | 26 | 29 | M14x1.5 | PT1/4 | 17 | 56 |
| PH1001 | Ø10 | 5 | 29 | 31 | M16x1.5 | PT1/8 | 19 | 70 |
| PH1002 | Ø10 | 7 | 29 | 31 | M16x1.5 | PT1/4 | 19 | 70 |
| Code | Model |
|---|---|
| on request | PH0401 |
| on request | PH0401T |
| on request | PH0402 |
| on request | PH0406-1 |
| on request | PH0406 |
| on request | PH0408 |
| on request | PH0601 |
| on request | PH0602 |
| on request | PH0608 |
| on request | PH0801 |
| on request | PH0802 |
| on request | PH1001 |
| on request | PH1002 |
PH1001 is annotated "Special Order" in red to the left of the table.
REVERSE-FLOW ELBOW ADAPTER
TAIWAN
| model | bore | l1 | l2 | t | t1 | h | weight_g |
|---|---|---|---|---|---|---|---|
| PH0401B | Ø4 | 18 | 20 | M8x1.0 | PT1/8 | 10 | 14 |
| PH0601B | Ø6 | 20 | 22 | M10x1.0 | PT1/8 | 12 | 21 |
| Code | Model |
|---|---|
| on request | PH0401B |
| on request | PH0601B |
ONE-WAY ELBOW ADAPTER
TAIWAN
| model | bore | l1 | l2 | t | t1 | h | weight_g |
|---|---|---|---|---|---|---|---|
| PH0401A | Ø4 | 18 | 20 | M8x1.0 | PT1/8 | 10 | 14 |
| PH0601A | Ø6 | 20 | 22 | M10x1.0 | PT1/8 | 12 | 21 |
| Code | Model |
|---|---|
| on request | PH0401A |
| on request | PH0601A |
ONE-WAY STRAIGHTADAPTER FOR NYLON PIPE
TAIWAN
| model | spec | weight_g |
|---|---|---|
| 440N03-C1006 | PT1/8 x Ø6 | 16 |
| 440N03-C1010 | PT1/8 x PE1/8 | 12 |
| 440N03-C1020 | PT1/8 x PE1/4 | 16 |
| 440N03-C1025 | PT1/8 x PE5/16 | 18 |
| 440N03-L2006 | PT1/4 x Ø6 | 22 |
| 440N03-L2010 | PT1/4 x Ø10 | 28 |
| 440N03-C2020 | PT1/4 x PE1/4 | 21 |
| 440N03-C2025 | PT1/4 x PE5/16 | 25 |
| 440N03-C2030 | PT1/4 x PE3/8 | 27.5 |
| 440N03-C3020 | PT3/8 x PE1/4 | 27.5 |
| Code | Model |
|---|---|
| on request | 440N03-C1006 |
| on request | 440N03-C1010 |
| on request | 440N03-C1020 |
| on request | 440N03-C1025 |
| on request | 440N03-L2006 |
| on request | 440N03-L2010 |
| on request | 440N03-C2020 |
| on request | 440N03-C2025 |
| on request | 440N03-C2030 |
| on request | 440N03-C3020 |
REVERSE-FLOW ELBOWADAPTER FOR NYLON PIPE
TAIWAN
| model | spec | weight_g |
|---|---|---|
| 440N06-L102 | PT1/8 x PE1/4 | 16.5 |
| 440N06-L1025 | PT1/8 x PE5/16 | 23.5 |
| 440N06-L2006 | PT1/4 x Ø6 | 25.5 |
| 440N06-L2010 | PT1/4 x Ø10 | 30.5 |
| 440N06-L2020 | PT1/4 x PE1/4 | 26 |
| 440N06-L2025 | PT1/4 x PE5/16 | 32.5 |
| 440N06-L203 | PT1/4 x PE3/8 | 34.5 |
| 440N06-L302 | PT3/8 x PE1/4 | 31.5 |
| Code | Model |
|---|---|
| on request | 440N06-L2006 |
| on request | 440N06-L2010 |
| on request | 440N06-L2020 |
| on request | 440N06-L102 |
| on request | 440N06-L1025 |
| on request | 440N06-L2025 |
| on request | 440N06-L203 |
| on request | 440N06-L302 |
