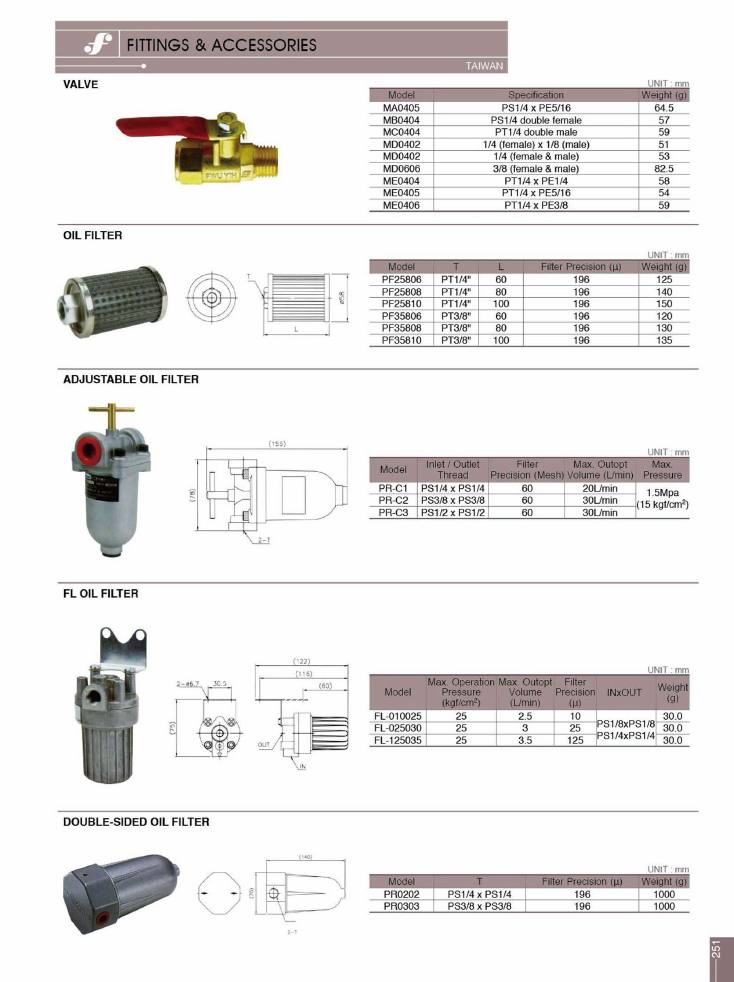

Frejoth accessory catalogue · Page 254
FITTINGS & ACCESSORIES
Models on this page
FL-010025FL-025030FL-125035MA0405MB0404MC0404MD0402MD0606ME0404ME0405ME0406PF25806PF25808PF25810PF35806PF35808PF35810PR-C1PR-C2PR-C3PR0202PR0303
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
VALVE
TAIWAN
| model | specification | weight_g |
|---|---|---|
| MA0405 | PS1/4 x PE5/16 | 64.5 |
| MB0404 | PS1/4 double female | 57 |
| MC0404 | PT1/4 double male | 59 |
| MD0402 | 1/4 (female) x 1/8 (male) | 51 |
| MD0402 | 1/4 (female & male) | 53 |
| MD0606 | 3/8 (female & male) | 82.5 |
| ME0404 | PT1/4 x PE1/4 | 58 |
| ME0405 | PT1/4 x PE5/16 | 54 |
| ME0406 | PT1/4 x PE3/8 | 59 |
| Code | Model |
|---|---|
| on request | MA0405 |
| on request | MB0404 |
| on request | MC0404 |
| on request | MD0402 |
| on request | MD0402 |
| on request | MD0606 |
| on request | ME0404 |
| on request | ME0405 |
| on request | ME0406 |
Photograph shows a brass ball valve with a red lever, branded FWU YIH.
OIL FILTER
TAIWAN
| model | t | l | filter_precision_u | weight_g |
|---|---|---|---|---|
| PF25806 | PT1/4" | 60 | 196 | 125 |
| PF25808 | PT1/4" | 80 | 196 | 140 |
| PF25810 | PT1/4" | 100 | 196 | 150 |
| PF35806 | PT3/8" | 60 | 196 | 120 |
| PF35808 | PT3/8" | 80 | 196 | 130 |
| PF35810 | PT3/8" | 100 | 196 | 135 |
| Code | Model |
|---|---|
| on request | PF25806 |
| on request | PF25808 |
| on request | PF25810 |
| on request | PF35806 |
| on request | PF35808 |
| on request | PF35810 |
Dimension drawing shows overall body diameter ø58 with length L.
ADJUSTABLE OIL FILTER
TAIWAN
| model | inlet_outlet_thread | filter_precision_mesh | max_outopt_volume_l_min | max_pressure |
|---|---|---|---|---|
| PR-C1 | PS1/4 x PS1/4 | 60 | 20L/min | 1.5Mpa (15 kgf/cm²) |
| PR-C2 | PS3/8 x PS3/8 | 60 | 30L/min | 1.5Mpa (15 kgf/cm²) |
| PR-C3 | PS1/2 x PS1/2 | 60 | 30L/min | 1.5Mpa (15 kgf/cm²) |
| Code | Model |
|---|---|
| on request | PR-C1 |
| on request | PR-C2 |
| on request | PR-C3 |
Dimension drawing shows (155) overall length, (78) height and a 2-T mounting detail. Max. Pressure is printed once as a cell merged across all three rows.
FL OIL FILTER
TAIWAN
| model | max_operation_pressure_kgf_cm2 | max_outopt_volume_l_min | filter_precision_u | inxout | weight_g |
|---|---|---|---|---|---|
| FL-010025 | 25 | 2.5 | 10 | — | 30 |
| FL-025030 | 25 | 3 | 25 | — | 30 |
| FL-125035 | 25 | 3.5 | 125 | — | 30 |
| Code | Model |
|---|---|
| on request | FL-010025 |
| on request | FL-025030 |
| on request | FL-125035 |
Dimension drawing shows (122) / (116) / (60) / (75) / 30.5 and a 2-ø6.7 mounting hole detail, with IN and OUT ports marked.
DOUBLE-SIDED OIL FILTER
TAIWAN
| model | t | filter_precision_u | weight_g |
|---|---|---|---|
| PR0202 | PS1/4 x PS1/4 | 196 | 1000 |
| PR0303 | PS3/8 x PS3/8 | 196 | 1000 |
| Code | Model |
|---|---|
| on request | PR0202 |
| on request | PR0303 |
Dimension drawing shows (140) overall length, (70) across the octagonal body and a 2-T port detail.
