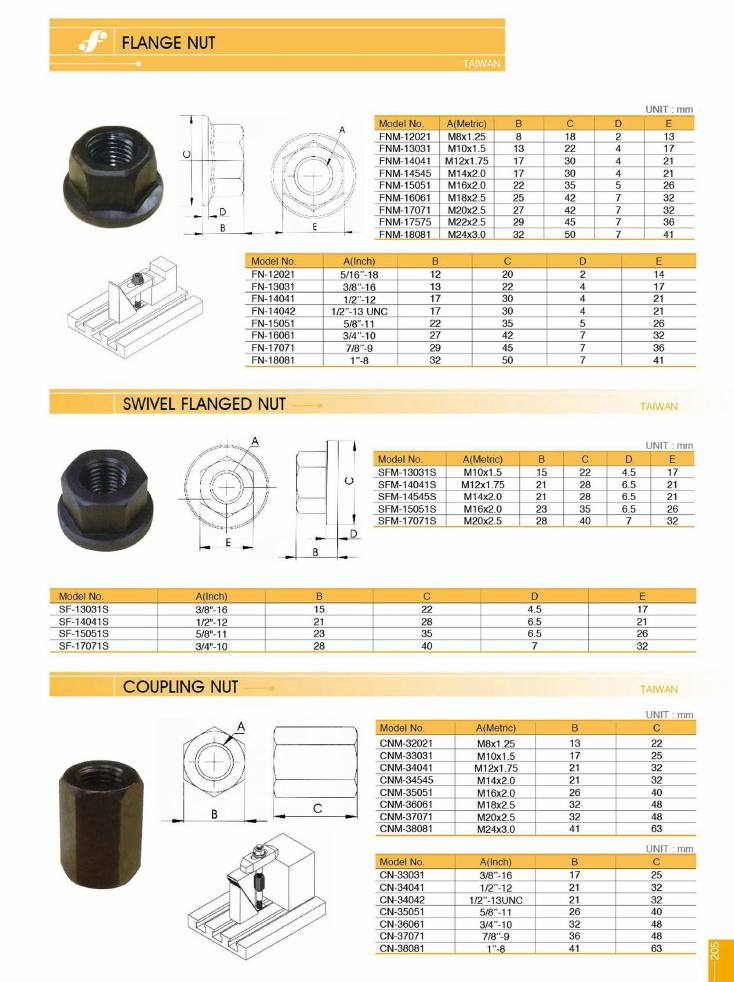

Frejoth accessory catalogue · Page 208
FLANGE NUT
Models on this page
CN-33031CN-34041CN-34042CN-35051CN-36061CN-37071CN-38081CNM-32021CNM-33031CNM-34041CNM-34545CNM-35051CNM-36061CNM-37071CNM-38081FN-12021FN-13031FN-14041FN-14042FN-15051FN-16061FN-17071FN-18081FNM-12021FNM-13031FNM-14041FNM-14545FNM-15051FNM-16061FNM-17071FNM-17575FNM-18081SF-13031SSF-14041SSF-15051SSF-17071SSFM-13031SSFM-14041SSFM-14545SSFM-15051SSFM-17071S
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
FLANGE NUT
FNM / FN · Taiwan
| model_no | a_metric | b | c | d | e |
|---|---|---|---|---|---|
| FNM-12021 | M8x1.25 | 8 | 18 | 2 | 13 |
| FNM-13031 | M10x1.5 | 13 | 22 | 4 | 17 |
| FNM-14041 | M12x1.75 | 17 | 30 | 4 | 21 |
| FNM-14545 | M14x2.0 | 17 | 30 | 4 | 21 |
| FNM-15051 | M16x2.0 | 22 | 35 | 5 | 26 |
| FNM-16061 | M18x2.5 | 25 | 42 | 7 | 32 |
| FNM-17071 | M20x2.5 | 27 | 42 | 7 | 32 |
| FNM-17575 | M22x2.5 | 29 | 45 | 7 | 36 |
| FNM-18081 | M24x3.0 | 32 | 50 | 7 | 41 |
| model_no | a_inch | b | c | d | e |
|---|---|---|---|---|---|
| FN-12021 | 5/16"-18 | 12 | 20 | 2 | 14 |
| FN-13031 | 3/8"-16 | 13 | 22 | 4 | 17 |
| FN-14041 | 1/2"-12 | 17 | 30 | 4 | 21 |
| FN-14042 | 1/2"-13 UNC | 17 | 30 | 4 | 21 |
| FN-15051 | 5/8"-11 | 22 | 35 | 5 | 26 |
| FN-16061 | 3/4"-10 | 27 | 42 | 7 | 32 |
| FN-17071 | 7/8"-9 | 29 | 45 | 7 | 36 |
| FN-18081 | 1"-8 | 32 | 50 | 7 | 41 |
| Code | Model |
|---|---|
| on request | FNM-12021 |
| on request | FNM-13031 |
| on request | FNM-14041 |
| on request | FNM-14545 |
| on request | FNM-15051 |
| on request | FNM-16061 |
| on request | FNM-17071 |
| on request | FNM-17575 |
| on request | FNM-18081 |
| on request | FN-12021 |
| on request | FN-13031 |
| on request | FN-14041 |
| on request | FN-14042 |
| on request | FN-15051 |
| on request | FN-16061 |
| on request | FN-17071 |
| on request | FN-18081 |
SWIVEL FLANGED NUT
SFM / SF · Taiwan
| model_no | a_metric | b | c | d | e |
|---|---|---|---|---|---|
| SFM-13031S | M10x1.5 | 15 | 22 | 4.5 | 17 |
| SFM-14041S | M12x1.75 | 21 | 28 | 6.5 | 21 |
| SFM-14545S | M14x2.0 | 21 | 28 | 6.5 | 21 |
| SFM-15051S | M16x2.0 | 23 | 35 | 6.5 | 26 |
| SFM-17071S | M20x2.5 | 28 | 40 | 7 | 32 |
| model_no | a_inch | b | c | d | e |
|---|---|---|---|---|---|
| SF-13031S | 3/8"-16 | 15 | 22 | 4.5 | 17 |
| SF-14041S | 1/2"-12 | 21 | 28 | 6.5 | 21 |
| SF-15051S | 5/8"-11 | 23 | 35 | 6.5 | 26 |
| SF-17071S | 3/4"-10 | 28 | 40 | 7 | 32 |
| Code | Model |
|---|---|
| on request | SFM-13031S |
| on request | SFM-14041S |
| on request | SFM-14545S |
| on request | SFM-15051S |
| on request | SFM-17071S |
| on request | SF-13031S |
| on request | SF-14041S |
| on request | SF-15051S |
| on request | SF-17071S |
COUPLING NUT
CNM / CN · Taiwan
| model_no | a_metric | b | c |
|---|---|---|---|
| CNM-32021 | M8x1.25 | 13 | 22 |
| CNM-33031 | M10x1.5 | 17 | 25 |
| CNM-34041 | M12x1.75 | 21 | 32 |
| CNM-34545 | M14x2.0 | 21 | 32 |
| CNM-35051 | M16x2.0 | 26 | 40 |
| CNM-36061 | M18x2.5 | 32 | 48 |
| CNM-37071 | M20x2.5 | 32 | 48 |
| CNM-38081 | M24x3.0 | 41 | 63 |
| model_no | a_inch | b | c |
|---|---|---|---|
| CN-33031 | 3/8"-16 | 17 | 25 |
| CN-34041 | 1/2"-12 | 21 | 32 |
| CN-34042 | 1/2"-13UNC | 21 | 32 |
| CN-35051 | 5/8"-11 | 26 | 40 |
| CN-36061 | 3/4"-10 | 32 | 48 |
| CN-37071 | 7/8"-9 | 36 | 48 |
| CN-38081 | 1"-8 | 41 | 63 |
| Code | Model |
|---|---|
| on request | CNM-35051 |
| on request | CNM-36061 |
| on request | CNM-37071 |
| on request | CNM-38081 |
| on request | CN-33031 |
| on request | CN-34041 |
| on request | CN-34042 |
| on request | CN-35051 |
| on request | CN-36061 |
| on request | CN-37071 |
| on request | CN-38081 |
| on request | CNM-32021 |
| on request | CNM-33031 |
| on request | CNM-34041 |
| on request | CNM-34545 |
