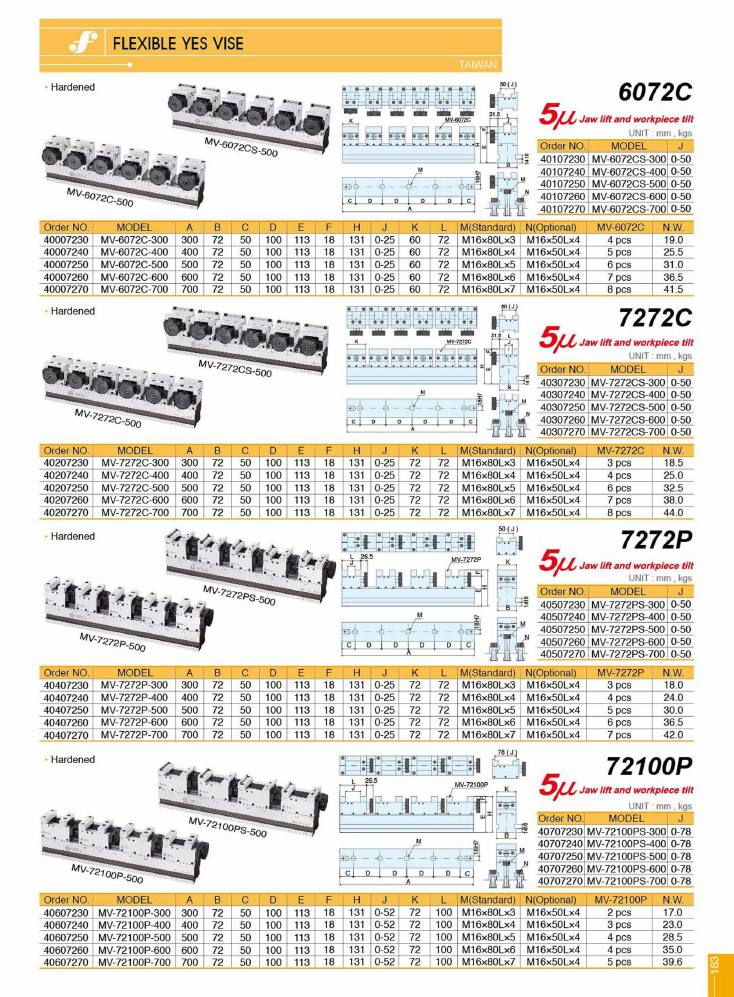

Frejoth accessory catalogue · Page 183

Flexible Yes Vise

Models on this page

MV-6072C-300MV-6072C-400MV-6072C-500MV-6072C-600MV-6072C-700MV-6072CS-300MV-6072CS-400MV-6072CS-500MV-6072CS-600MV-6072CS-700MV-72100P-300MV-72100P-400MV-72100P-500MV-72100P-600MV-72100P-700MV-72100PS-300MV-72100PS-400MV-72100PS-500MV-72100PS-600MV-72100PS-700MV-7272C-300MV-7272C-400MV-7272C-500MV-7272C-600MV-7272C-700MV-7272CS-300MV-7272CS-400MV-7272CS-500MV-7272CS-600MV-7272CS-700MV-7272P-300MV-7272P-400MV-7272P-500MV-7272P-600MV-7272P-700MV-7272PS-300MV-7272PS-400MV-7272PS-500MV-7272PS-600MV-7272PS-700

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Flexible Yes Vise 6072C

6072C · Taiwan

Hardened
5μ jaw lift and workpiece tilt

dimensions (mm)
order_no	model	a	b	c	d	e	f	h	j	k	l	m_standard	n_optional	mv_6072c	n_w
40007230	MV-6072C-300	300	72	50	100	113	18	131	0-25	60	72	M16x80Lx3	M16x50Lx4	4 pcs	19
40007240	MV-6072C-400	400	72	50	100	113	18	131	0-25	60	72	M16x80Lx4	M16x50Lx4	5 pcs	25.5
40007250	MV-6072C-500	500	72	50	100	113	18	131	0-25	60	72	M16x80Lx5	M16x50Lx4	6 pcs	31
40007260	MV-6072C-600	600	72	50	100	113	18	131	0-25	60	72	M16x80Lx6	M16x50Lx4	7 pcs	36.5
40007270	MV-6072C-700	700	72	50	100	113	18	131	0-25	60	72	M16x80Lx7	M16x50Lx4	8 pcs	41.5

s_type_models (mm)
order_no	model	j
40107230	MV-6072CS-300	0-50
40107240	MV-6072CS-400	0-50
40107250	MV-6072CS-500	0-50
40107260	MV-6072CS-600	0-50
40107270	MV-6072CS-700	0-50

Order references
Code	Model
40107250	MV-6072CS-500
40107260	MV-6072CS-600
40107270	MV-6072CS-700
40007230	MV-6072C-300
40007240	MV-6072C-400
40007250	MV-6072C-500
40007260	MV-6072C-600
40007270	MV-6072C-700
40107230	MV-6072CS-300
40107240	MV-6072CS-400

Units: mm, kgs. Column 'MV_6072C' gives the number of vise units on the rail. The 'S' variant table lists the MV-6072CS models (jaw opening J only; remaining dimensions are not printed for them).

Flexible Yes Vise 7272C

7272C · Taiwan

Hardened
5μ jaw lift and workpiece tilt

dimensions (mm)
order_no	model	a	b	c	d	e	f	h	j	k	l	m_standard	n_optional	mv_7272c	n_w
40207230	MV-7272C-300	300	72	50	100	113	18	131	0-25	72	72	M16x80Lx3	M16x50Lx4	3 pcs	18.5
40207240	MV-7272C-400	400	72	50	100	113	18	131	0-25	72	72	M16x80Lx4	M16x50Lx4	4 pcs	25
40207250	MV-7272C-500	500	72	50	100	113	18	131	0-25	72	72	M16x80Lx5	M16x50Lx4	6 pcs	32.5
40207260	MV-7272C-600	600	72	50	100	113	18	131	0-25	72	72	M16x80Lx6	M16x50Lx4	7 pcs	38
40207270	MV-7272C-700	700	72	50	100	113	18	131	0-25	72	72	M16x80Lx7	M16x50Lx4	8 pcs	44

s_type_models (mm)
order_no	model	j
40307230	MV-7272CS-300	0-50
40307240	MV-7272CS-400	0-50
40307250	MV-7272CS-500	0-50
40307260	MV-7272CS-600	0-50
40307270	MV-7272CS-700	0-50

Order references
Code	Model
40207230	MV-7272C-300
40207240	MV-7272C-400
40207250	MV-7272C-500
40207260	MV-7272C-600
40207270	MV-7272C-700
40307230	MV-7272CS-300
40307240	MV-7272CS-400
40307250	MV-7272CS-500
40307260	MV-7272CS-600
40307270	MV-7272CS-700

Units: mm, kgs. Column 'MV_7272C' gives the number of vise units on the rail. The 'S' variant table lists the MV-7272CS models (jaw opening J only; remaining dimensions are not printed for them).

Flexible Yes Vise 7272P

7272P · Taiwan

Hardened
5μ jaw lift and workpiece tilt

dimensions (mm)
order_no	model	a	b	c	d	e	f	h	j	k	l	m_standard	n_optional	mv_7272p	n_w
40407230	MV-7272P-300	300	72	50	100	113	18	131	0-25	72	72	M16x80Lx3	M16x50Lx4	3 pcs	18
40407240	MV-7272P-400	400	72	50	100	113	18	131	0-25	72	72	M16x80Lx4	M16x50Lx4	4 pcs	24
40407250	MV-7272P-500	500	72	50	100	113	18	131	0-25	72	72	M16x80Lx5	M16x50Lx4	5 pcs	30
40407260	MV-7272P-600	600	72	50	100	113	18	131	0-25	72	72	M16x80Lx6	M16x50Lx4	6 pcs	36.5
40407270	MV-7272P-700	700	72	50	100	113	18	131	0-25	72	72	M16x80Lx7	M16x50Lx4	7 pcs	42

s_type_models (mm)
order_no	model	j
40507230	MV-7272PS-300	0-50
40507240	MV-7272PS-400	0-50
40507250	MV-7272PS-500	0-50
40507260	MV-7272PS-600	0-50
40507270	MV-7272PS-700	0-50

Order references
Code	Model
40407230	MV-7272P-300
40407240	MV-7272P-400
40407250	MV-7272P-500
40407260	MV-7272P-600
40407270	MV-7272P-700
40507230	MV-7272PS-300
40507240	MV-7272PS-400
40507250	MV-7272PS-500
40507260	MV-7272PS-600
40507270	MV-7272PS-700

Units: mm, kgs. Column 'MV_7272P' gives the number of vise units on the rail. The 'S' variant table lists the MV-7272PS models (jaw opening J only; remaining dimensions are not printed for them).

Flexible Yes Vise 72100P

72100P · Taiwan

Hardened
5μ jaw lift and workpiece tilt

dimensions (mm)
order_no	model	a	b	c	d	e	f	h	j	k	l	m_standard	n_optional	mv_72100p	n_w
40607230	MV-72100P-300	300	72	50	100	113	18	131	0-52	72	100	M16x80Lx3	M16x50Lx4	2 pcs	17
40607240	MV-72100P-400	400	72	50	100	113	18	131	0-52	72	100	M16x80Lx4	M16x50Lx4	3 pcs	23
40607250	MV-72100P-500	500	72	50	100	113	18	131	0-52	72	100	M16x80Lx5	M16x50Lx4	4 pcs	28.5
40607260	MV-72100P-600	600	72	50	100	113	18	131	0-52	72	100	M16x80Lx6	M16x50Lx4	4 pcs	35
40607270	MV-72100P-700	700	72	50	100	113	18	131	0-52	72	100	M16x80Lx7	M16x50Lx4	5 pcs	39.6

s_type_models (mm)
order_no	model	j
40707230	MV-72100PS-300	0-78
40707240	MV-72100PS-400	0-78
40707250	MV-72100PS-500	0-78
40707260	MV-72100PS-600	0-78
40707270	MV-72100PS-700	0-78

Order references
Code	Model
40707270	MV-72100PS-700
40607230	MV-72100P-300
40607240	MV-72100P-400
40607250	MV-72100P-500
40607260	MV-72100P-600
40607270	MV-72100P-700
40707230	MV-72100PS-300
40707240	MV-72100PS-400
40707250	MV-72100PS-500
40707260	MV-72100PS-600

Units: mm, kgs. Column 'MV_72100P' gives the number of vise units on the rail. The 'S' variant table lists the MV-72100PS models (jaw opening J only; remaining dimensions are not printed for them).
