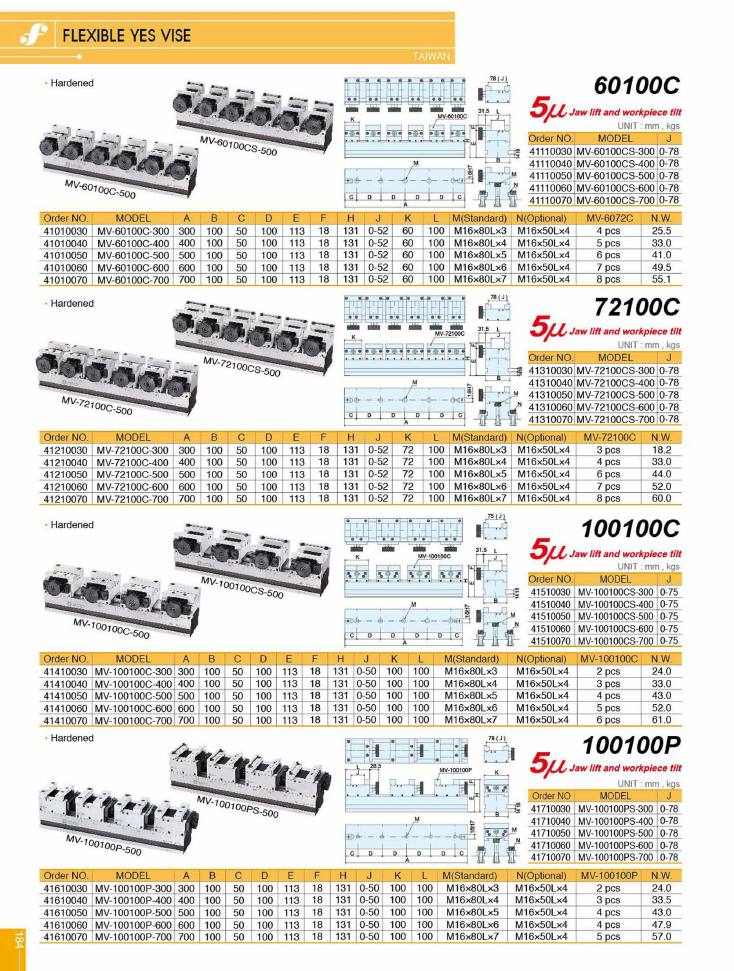

Frejoth accessory catalogue · Page 184

Flexible Yes Vise

Models on this page

MV-100100C-300MV-100100C-400MV-100100C-500MV-100100C-600MV-100100C-700MV-100100CS-300MV-100100CS-400MV-100100CS-500MV-100100CS-600MV-100100CS-700MV-100100P-300MV-100100P-400MV-100100P-500MV-100100P-600MV-100100P-700MV-100100PS-300MV-100100PS-400MV-100100PS-500MV-100100PS-600MV-100100PS-700MV-60100C-300MV-60100C-400MV-60100C-500MV-60100C-600MV-60100C-700MV-60100CS-300MV-60100CS-400MV-60100CS-500MV-60100CS-600MV-60100CS-700MV-72100C-300MV-72100C-400MV-72100C-500MV-72100C-600MV-72100C-700MV-72100CS-300MV-72100CS-400MV-72100CS-500MV-72100CS-600MV-72100CS-700

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Flexible Yes Vise 60100C

60100C · Taiwan

Hardened
5μ jaw lift and workpiece tilt

dimensions (mm)
order_no	model	a	b	c	d	e	f	h	j	k	l	m_standard	n_optional	mv_6072c	n_w
41010030	MV-60100C-300	300	100	50	100	113	18	131	0-52	60	100	M16x80Lx3	M16x50Lx4	4 pcs	25.5
41010040	MV-60100C-400	400	100	50	100	113	18	131	0-52	60	100	M16x80Lx4	M16x50Lx4	5 pcs	33
41010050	MV-60100C-500	500	100	50	100	113	18	131	0-52	60	100	M16x80Lx5	M16x50Lx4	6 pcs	41
41010060	MV-60100C-600	600	100	50	100	113	18	131	0-52	60	100	M16x80Lx6	M16x50Lx4	7 pcs	49.5
41010070	MV-60100C-700	700	100	50	100	113	18	131	0-52	60	100	M16x80Lx7	M16x50Lx4	8 pcs	55.1

s_type_models (mm)
order_no	model	j
41110030	MV-60100CS-300	0-78
41110040	MV-60100CS-400	0-78
41110050	MV-60100CS-500	0-78
41110060	MV-60100CS-600	0-78
41110070	MV-60100CS-700	0-78

Order references
Code	Model
41010030	MV-60100C-300
41010040	MV-60100C-400
41010050	MV-60100C-500
41010060	MV-60100C-600
41010070	MV-60100C-700
41110030	MV-60100CS-300
41110040	MV-60100CS-400
41110050	MV-60100CS-500
41110060	MV-60100CS-600
41110070	MV-60100CS-700

Units: mm, kgs. The second-to-last column holds a piece count (number of vise units on the rail). The 'S' variant table lists the MV-60100CS models (jaw opening J only).

Flexible Yes Vise 72100C

72100C · Taiwan

Hardened
5μ jaw lift and workpiece tilt

dimensions (mm)
order_no	model	a	b	c	d	e	f	h	j	k	l	m_standard	n_optional	mv_72100c	n_w
41210030	MV-72100C-300	300	100	50	100	113	18	131	0-52	72	100	M16x80Lx3	M16x50Lx4	3 pcs	18.2
41210040	MV-72100C-400	400	100	50	100	113	18	131	0-52	72	100	M16x80Lx4	M16x50Lx4	4 pcs	33
41210050	MV-72100C-500	500	100	50	100	113	18	131	0-52	72	100	M16x80Lx5	M16x50Lx4	6 pcs	44
41210060	MV-72100C-600	600	100	50	100	113	18	131	0-52	72	100	M16x80Lx6	M16x50Lx4	7 pcs	52
41210070	MV-72100C-700	700	100	50	100	113	18	131	0-52	72	100	M16x80Lx7	M16x50Lx4	8 pcs	60

s_type_models (mm)
order_no	model	j
41310030	MV-72100CS-300	0-78
41310040	MV-72100CS-400	0-78
41310050	MV-72100CS-500	0-78
41310060	MV-72100CS-600	0-78
41310070	MV-72100CS-700	0-78

Order references
Code	Model
41210030	MV-72100C-300
41210040	MV-72100C-400
41210050	MV-72100C-500
41210060	MV-72100C-600
41210070	MV-72100C-700
41310030	MV-72100CS-300
41310040	MV-72100CS-400
41310050	MV-72100CS-500
41310060	MV-72100CS-600
41310070	MV-72100CS-700

Units: mm, kgs. The second-to-last column holds a piece count (number of vise units on the rail). The 'S' variant table lists the MV-72100CS models (jaw opening J only).

Flexible Yes Vise 100100C

100100C · Taiwan

Hardened
5μ jaw lift and workpiece tilt

dimensions (mm)
order_no	model	a	b	c	d	e	f	h	j	k	l	m_standard	n_optional	mv_100100c	n_w
41410030	MV-100100C-300	300	100	50	100	113	18	131	0-50	100	100	M16x80Lx3	M16x50Lx4	2 pcs	24
41410040	MV-100100C-400	400	100	50	100	113	18	131	0-50	100	100	M16x80Lx4	M16x50Lx4	3 pcs	33
41410050	MV-100100C-500	500	100	50	100	113	18	131	0-50	100	100	M16x80Lx5	M16x50Lx4	4 pcs	43
41410060	MV-100100C-600	600	100	50	100	113	18	131	0-50	100	100	M16x80Lx6	M16x50Lx4	5 pcs	52
41410070	MV-100100C-700	700	100	50	100	113	18	131	0-50	100	100	M16x80Lx7	M16x50Lx4	6 pcs	61

s_type_models (mm)
order_no	model	j
41510030	MV-100100CS-300	0-75
41510040	MV-100100CS-400	0-75
41510050	MV-100100CS-500	0-75
41510060	MV-100100CS-600	0-75
41510070	MV-100100CS-700	0-75

Order references
Code	Model
41510070	MV-100100CS-700
41410030	MV-100100C-300
41410040	MV-100100C-400
41410050	MV-100100C-500
41410060	MV-100100C-600
41410070	MV-100100C-700
41510030	MV-100100CS-300
41510040	MV-100100CS-400
41510050	MV-100100CS-500
41510060	MV-100100CS-600

Units: mm, kgs. The second-to-last column holds a piece count (number of vise units on the rail). The 'S' variant table lists the MV-100100CS models (jaw opening J only).

Flexible Yes Vise 100100P

100100P · Taiwan

Hardened
5μ jaw lift and workpiece tilt

dimensions (mm)
order_no	model	a	b	c	d	e	f	h	j	k	l	m_standard	n_optional	mv_100100p	n_w
41610030	MV-100100P-300	300	100	50	100	113	18	131	0-50	100	100	M16x80Lx3	M16x50Lx4	2 pcs	24
41610040	MV-100100P-400	400	100	50	100	113	18	131	0-50	100	100	M16x80Lx4	M16x50Lx4	3 pcs	33.5
41610050	MV-100100P-500	500	100	50	100	113	18	131	0-50	100	100	M16x80Lx5	M16x50Lx4	4 pcs	43
41610060	MV-100100P-600	600	100	50	100	113	18	131	0-50	100	100	M16x80Lx6	M16x50Lx4	4 pcs	47.9
41610070	MV-100100P-700	700	100	50	100	113	18	131	0-50	100	100	M16x80Lx7	M16x50Lx4	5 pcs	57

s_type_models (mm)
order_no	model	j
41710030	MV-100100PS-300	0-78
41710040	MV-100100PS-400	0-78
41710050	MV-100100PS-500	0-78
41710060	MV-100100PS-600	0-78
41710070	MV-100100PS-700	0-78

Order references
Code	Model
41610030	MV-100100P-300
41610040	MV-100100P-400
41610050	MV-100100P-500
41610060	MV-100100P-600
41610070	MV-100100P-700
41710030	MV-100100PS-300
41710040	MV-100100PS-400
41710050	MV-100100PS-500
41710060	MV-100100PS-600
41710070	MV-100100PS-700

Units: mm, kgs. The second-to-last column holds a piece count (number of vise units on the rail). The 'S' variant table lists the MV-100100PS models (jaw opening J only).
