Flood Type Coolant Pumps / Super Flexible Couplings
Models on this page
MC-8P-13L-UMC-8P-13L-WMC-8P-17L-WNM-112NM-128NM-148NM-168NM-194NM-214NM-50NM-67NM-82NM-97SP-OP-13L-USP-OP-13L-WSP-OP-17L-W
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Flood Type Coolant Pumps
MC-8 / SP-O · Taiwan
- Tank Capacity - 5300-1326 - 3.25 Gallon, - 5300-1425 - 4.25 Gallon
- Coolant pump motor - 1/8 HP
- With neoprence hose
- With modular coolant hose
- With electrical cord and push button switch
| model_no | a | b | c | d | e | f | tank_capacity_liter | g_w |
|---|---|---|---|---|---|---|---|---|
| MC-8P-13L-W | 315 | 95 | 160 | 170 | 370 | 245 | 13 / White | 6.42 kg |
| MC-8P-13L-U | 315 | 95 | 160 | 170 | 370 | 245 | 13 / Blue | 6.42 kg |
| MC-8P-17L-W | 315 | 95 | 160 | 170 | 465 | 245 | 17 / White | 6.52 kg |
| SP-OP-13L-W | 305 | 70 | 150 | 170 | 370 | 245 | 13 / White | 3.34 kg |
| SP-OP-13L-U | 305 | 70 | 150 | 170 | 370 | 245 | 13 / Blue | 3.34 kg |
| SP-OP-17L-W | 305 | 70 | 150 | 170 | 465 | 245 | 17 / White | 3.49 kg |
| Code | Model |
|---|---|
| on request | MC-8P-13L-W |
| on request | MC-8P-13L-U |
| on request | MC-8P-17L-W |
| on request | SP-OP-13L-W |
| on request | SP-OP-13L-U |
| on request | SP-OP-17L-W |

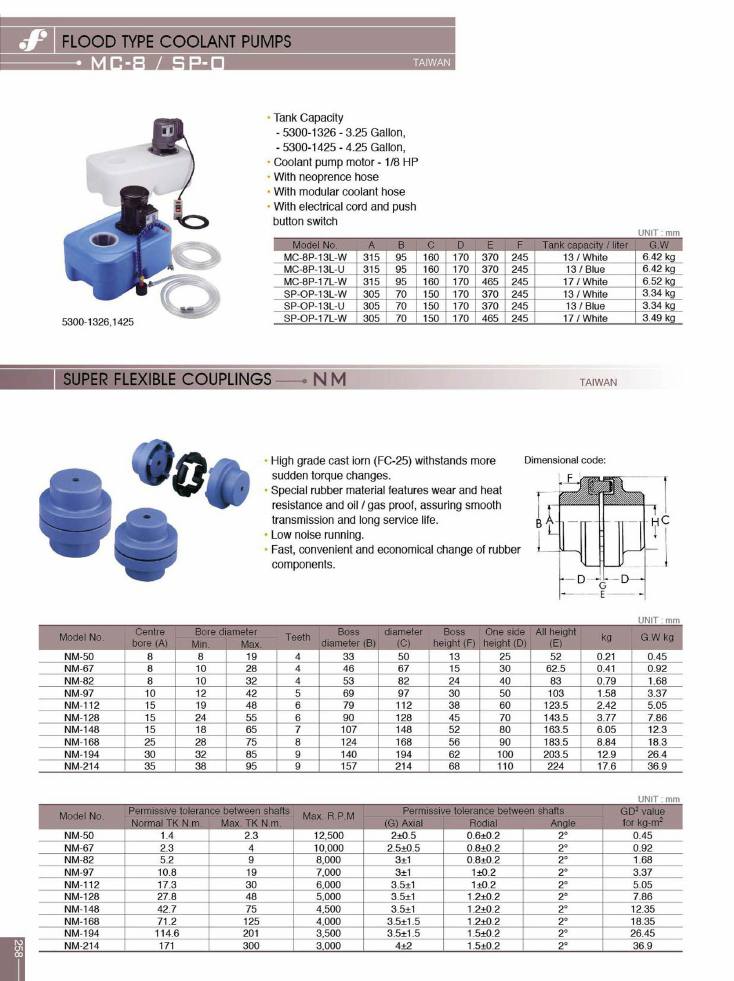

Photograph captioned 5300-1326, 1425.
Super Flexible Couplings
NM · Taiwan
- High grade cast iorn (FC-25) withstands more sudden torque changes.
- Special rubber material features wear and heat resistance and oil / gas proof, assuring smooth transmission and long service life.
- Low noise running.
- Fast, convenient and economical change of rubber components.
| model_no | centre_bore_a | bore_diameter_min | bore_diameter_max | teeth | boss_diameter_b | diameter_c | boss_height_f | one_side_height_d | all_height_e | kg | g_w_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|
| NM-50 | 8 | 8 | 19 | 4 | 33 | 50 | 13 | 25 | 52 | 0.21 | 0.45 |
| NM-67 | 8 | 10 | 28 | 4 | 46 | 67 | 15 | 30 | 62.5 | 0.41 | 0.92 |
| NM-82 | 8 | 10 | 32 | 4 | 53 | 82 | 24 | 40 | 83 | 0.79 | 1.68 |
| NM-97 | 10 | 12 | 42 | 5 | 69 | 97 | 30 | 50 | 103 | 1.58 | 3.37 |
| NM-112 | 15 | 19 | 48 | 6 | 79 | 112 | 38 | 60 | 123.5 | 2.42 | 5.05 |
| NM-128 | 15 | 24 | 55 | 6 | 90 | 128 | 45 | 70 | 143.5 | 3.77 | 7.86 |
| NM-148 | 15 | 18 | 65 | 7 | 107 | 148 | 52 | 80 | 163.5 | 6.05 | 12.3 |
| NM-168 | 25 | 28 | 75 | 8 | 124 | 168 | 56 | 90 | 183.5 | 8.84 | 18.3 |
| NM-194 | 30 | 32 | 85 | 9 | 140 | 194 | 62 | 100 | 203.5 | 12.9 | 26.4 |
| NM-214 | 35 | 38 | 95 | 9 | 157 | 214 | 68 | 110 | 224 | 17.6 | 36.9 |
| model_no | normal_tk_nm | max_tk_nm | max_rpm | g_axial | rodial | angle | gd2_value_for_kg_m2 |
|---|---|---|---|---|---|---|---|
| NM-50 | 1.4 | 2.3 | 12500 | 2±0.5 | 0.6±0.2 | 2° | 0.45 |
| NM-67 | 2.3 | 4 | 10000 | 2.5±0.5 | 0.8±0.2 | 2° | 0.92 |
| NM-82 | 5.2 | 9 | 8000 | 3±1 | 0.8±0.2 | 2° | 1.68 |
| NM-97 | 10.8 | 19 | 7000 | 3±1 | 1±0.2 | 2° | 3.37 |
| NM-112 | 17.3 | 30 | 6000 | 3.5±1 | 1±0.2 | 2° | 5.05 |
| NM-128 | 27.8 | 48 | 5000 | 3.5±1 | 1.2±0.2 | 2° | 7.86 |
| NM-148 | 42.7 | 75 | 4500 | 3.5±1 | 1.2±0.2 | 2° | 12.35 |
| NM-168 | 71.2 | 125 | 4000 | 3.5±1.5 | 1.2±0.2 | 2° | 18.35 |
| NM-194 | 114.6 | 201 | 3500 | 3.5±1.5 | 1.5±0.2 | 2° | 26.45 |
| NM-214 | 171 | 300 | 3000 | 4±2 | 1.5±0.2 | 2° | 36.9 |
| Code | Model |
|---|---|
| on request | NM-50 |
| on request | NM-67 |
| on request | NM-82 |
| on request | NM-97 |
| on request | NM-112 |
| on request | NM-128 |
| on request | NM-148 |
| on request | NM-168 |
| on request | NM-194 |
| on request | NM-214 |
Dimensional code drawing labels A, B, C, D, E, F.
