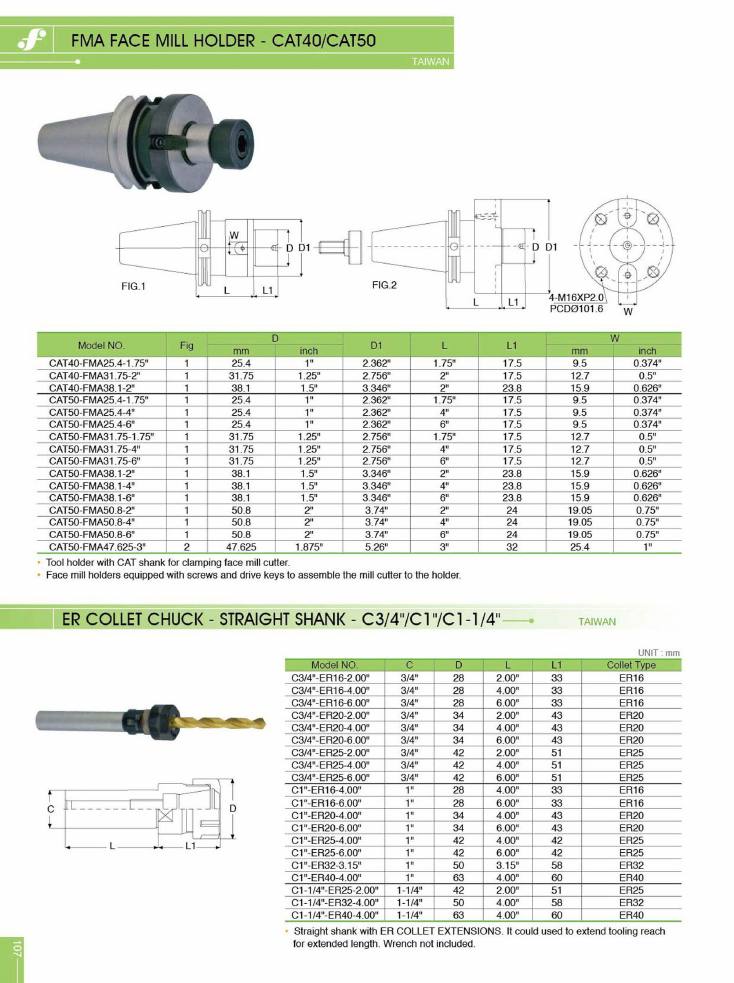

Frejoth accessory catalogue · Page 107
FMA Face Mill Holder - CAT40/CAT50
Models on this page
C1-1/4"-ER25-2.00"C1-1/4"-ER32-4.00"C1-1/4"-ER40-4.00"C1"-ER16-4.00"C1"-ER16-6.00"C1"-ER20-4.00"C1"-ER20-6.00"C1"-ER25-4.00"C1"-ER25-6.00"C1"-ER32-3.15"C1"-ER40-4.00"C3/4"-ER16-2.00"C3/4"-ER16-4.00"C3/4"-ER16-6.00"C3/4"-ER20-2.00"C3/4"-ER20-4.00"C3/4"-ER20-6.00"C3/4"-ER25-2.00"C3/4"-ER25-4.00"C3/4"-ER25-6.00"CAT40-FMA25.4-1.75"CAT40-FMA31.75-2"CAT40-FMA38.1-2"CAT50-FMA25.4-1.75"CAT50-FMA25.4-4"CAT50-FMA25.4-6"CAT50-FMA31.75-1.75"CAT50-FMA31.75-4"CAT50-FMA31.75-6"CAT50-FMA38.1-2"CAT50-FMA38.1-4"CAT50-FMA38.1-6"CAT50-FMA47.625-3"CAT50-FMA50.8-2"CAT50-FMA50.8-4"CAT50-FMA50.8-6"
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
FMA Face Mill Holder - CAT40/CAT50
FMA · Taiwan
- Tool holder with CAT shank for clamping face mill cutter.
- Face mill holders equipped with screws and drive keys to assemble the mill cutter to the holder.
| model_no | fig | d_mm | d_inch | d1 | l | l1 | w_mm | w_inch |
|---|---|---|---|---|---|---|---|---|
| CAT40-FMA25.4-1.75" | 1 | 25.4 | 1" | 2.362" | 1.75" | 17.5 | 9.5 | 0.374" |
| CAT40-FMA31.75-2" | 1 | 31.75 | 1.25" | 2.756" | 2" | 17.5 | 12.7 | 0.5" |
| CAT40-FMA38.1-2" | 1 | 38.1 | 1.5" | 3.346" | 2" | 23.8 | 15.9 | 0.626" |
| CAT50-FMA25.4-1.75" | 1 | 25.4 | 1" | 2.362" | 1.75" | 17.5 | 9.5 | 0.374" |
| CAT50-FMA25.4-4" | 1 | 25.4 | 1" | 2.362" | 4" | 17.5 | 9.5 | 0.374" |
| CAT50-FMA25.4-6" | 1 | 25.4 | 1" | 2.362" | 6" | 17.5 | 9.5 | 0.374" |
| CAT50-FMA31.75-1.75" | 1 | 31.75 | 1.25" | 2.756" | 1.75" | 17.5 | 12.7 | 0.5" |
| CAT50-FMA31.75-4" | 1 | 31.75 | 1.25" | 2.756" | 4" | 17.5 | 12.7 | 0.5" |
| CAT50-FMA31.75-6" | 1 | 31.75 | 1.25" | 2.756" | 6" | 17.5 | 12.7 | 0.5" |
| CAT50-FMA38.1-2" | 1 | 38.1 | 1.5" | 3.346" | 2" | 23.8 | 15.9 | 0.626" |
| CAT50-FMA38.1-4" | 1 | 38.1 | 1.5" | 3.346" | 4" | 23.8 | 15.9 | 0.626" |
| CAT50-FMA38.1-6" | 1 | 38.1 | 1.5" | 3.346" | 6" | 23.8 | 15.9 | 0.626" |
| CAT50-FMA50.8-2" | 1 | 50.8 | 2" | 3.74" | 2" | 24 | 19.05 | 0.75" |
| CAT50-FMA50.8-4" | 1 | 50.8 | 2" | 3.74" | 4" | 24 | 19.05 | 0.75" |
| CAT50-FMA50.8-6" | 1 | 50.8 | 2" | 3.74" | 6" | 24 | 19.05 | 0.75" |
| CAT50-FMA47.625-3" | 2 | 47.625 | 1.875" | 5.26" | 3" | 32 | 25.4 | 1" |
| Code | Model |
|---|---|
| on request | CAT40-FMA25.4-1.75" |
| on request | CAT40-FMA31.75-2" |
| on request | CAT40-FMA38.1-2" |
| on request | CAT50-FMA25.4-1.75" |
| on request | CAT50-FMA25.4-4" |
| on request | CAT50-FMA25.4-6" |
| on request | CAT50-FMA31.75-1.75" |
| on request | CAT50-FMA31.75-4" |
| on request | CAT50-FMA31.75-6" |
| on request | CAT50-FMA38.1-2" |
| on request | CAT50-FMA38.1-4" |
| on request | CAT50-FMA38.1-6" |
| on request | CAT50-FMA50.8-2" |
| on request | CAT50-FMA50.8-4" |
| on request | CAT50-FMA50.8-6" |
| on request | CAT50-FMA47.625-3" |
FIG.2 flange detail: 4-M16XP2.0, PCDØ101.6
