FMA face mill holder-inch
Models on this page
BT30-FMA25.4-45BT30-FMA25.4-60BT30-FMA31.75-45BT40-FMA25.4-125/150BT40-FMA25.4-45/60BT40-FMA25.4-90/105BT40-FMA31.75-45/60BT40-FMA31.75-90/105BT40-FMA38.1-45BT40-FMA38.1-60/90BT50-FMA25.4-105/125BT50-FMA25.4-105S/125SBT50-FMA25.4-150/200BT50-FMA25.4-150S/200SBT50-FMA25.4-250/300BT50-FMA25.4-250S/300SBT50-FMA25.4-350/400BT50-FMA25.4-45/75BT50-FMA25.4-45S/75SBT50-FMA31.75-105/125BT50-FMA31.75-150/200BT50-FMA31.75-250/300BT50-FMA31.75-45/75BT50-FMA38.1-125/150BT50-FMA38.1-175/200BT50-FMA38.1-45BT50-FMA38.1-75/105BT50-FMA47.625-105/200BT50-FMA47.625-75BT50-FMA50.8-150/200BT50-FMA50.8-45BT50-FMA50.8-75/105
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.

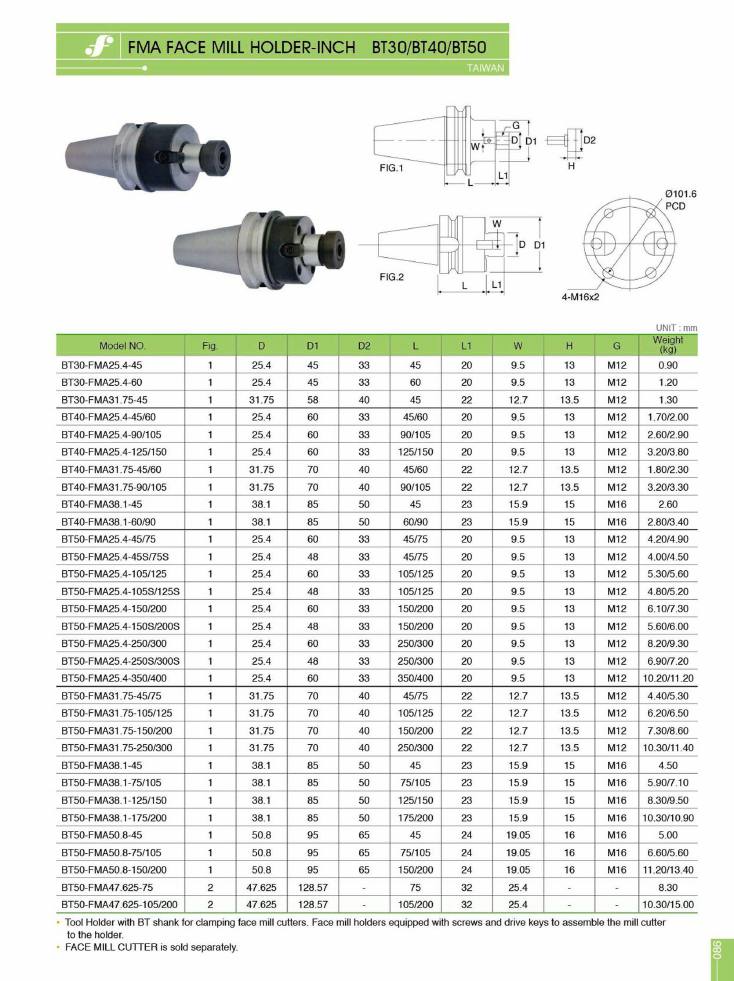

FMA Face Mill Holder - Inch - BT30/BT40/BT50
FMA · Taiwan
- Tool Holder with BT shank for clamping face mill cutters.
- Face mill holders equipped with screws and drive keys to assemble the mill cutter to the holder.
- FACE MILL CUTTER is sold separately.
| model_no | fig | d | d1 | d2 | l | l1 | w | h | g | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|
| BT30-FMA25.4-45 | 1 | 25.4 | 45 | 33 | 45 | 20 | 9.5 | 13 | M12 | 0.90 |
| BT30-FMA25.4-60 | 1 | 25.4 | 45 | 33 | 60 | 20 | 9.5 | 13 | M12 | 1.20 |
| BT30-FMA31.75-45 | 1 | 31.75 | 58 | 40 | 45 | 22 | 12.7 | 13.5 | M12 | 1.30 |
| BT40-FMA25.4-45/60 | 1 | 25.4 | 60 | 33 | 45/60 | 20 | 9.5 | 13 | M12 | 1.70/2.00 |
| BT40-FMA25.4-90/105 | 1 | 25.4 | 60 | 33 | 90/105 | 20 | 9.5 | 13 | M12 | 2.60/2.90 |
| BT40-FMA25.4-125/150 | 1 | 25.4 | 60 | 33 | 125/150 | 20 | 9.5 | 13 | M12 | 3.20/3.80 |
| BT40-FMA31.75-45/60 | 1 | 31.75 | 70 | 40 | 45/60 | 22 | 12.7 | 13.5 | M12 | 1.80/2.30 |
| BT40-FMA31.75-90/105 | 1 | 31.75 | 70 | 40 | 90/105 | 22 | 12.7 | 13.5 | M12 | 3.20/3.30 |
| BT40-FMA38.1-45 | 1 | 38.1 | 85 | 50 | 45 | 23 | 15.9 | 15 | M16 | 2.60 |
| BT40-FMA38.1-60/90 | 1 | 38.1 | 85 | 50 | 60/90 | 23 | 15.9 | 15 | M16 | 2.80/3.40 |
| BT50-FMA25.4-45/75 | 1 | 25.4 | 60 | 33 | 45/75 | 20 | 9.5 | 13 | M12 | 4.20/4.90 |
| BT50-FMA25.4-45S/75S | 1 | 25.4 | 48 | 33 | 45/75 | 20 | 9.5 | 13 | M12 | 4.00/4.50 |
| BT50-FMA25.4-105/125 | 1 | 25.4 | 60 | 33 | 105/125 | 20 | 9.5 | 13 | M12 | 5.30/5.60 |
| BT50-FMA25.4-105S/125S | 1 | 25.4 | 48 | 33 | 105/125 | 20 | 9.5 | 13 | M12 | 4.80/5.20 |
| BT50-FMA25.4-150/200 | 1 | 25.4 | 60 | 33 | 150/200 | 20 | 9.5 | 13 | M12 | 6.10/7.30 |
| BT50-FMA25.4-150S/200S | 1 | 25.4 | 48 | 33 | 150/200 | 20 | 9.5 | 13 | M12 | 5.60/6.00 |
| BT50-FMA25.4-250/300 | 1 | 25.4 | 60 | 33 | 250/300 | 20 | 9.5 | 13 | M12 | 8.20/9.30 |
| BT50-FMA25.4-250S/300S | 1 | 25.4 | 48 | 33 | 250/300 | 20 | 9.5 | 13 | M12 | 6.90/7.20 |
| BT50-FMA25.4-350/400 | 1 | 25.4 | 60 | 33 | 350/400 | 20 | 9.5 | 13 | M12 | 10.20/11.20 |
| BT50-FMA31.75-45/75 | 1 | 31.75 | 70 | 40 | 45/75 | 22 | 12.7 | 13.5 | M12 | 4.40/5.30 |
| BT50-FMA31.75-105/125 | 1 | 31.75 | 70 | 40 | 105/125 | 22 | 12.7 | 13.5 | M12 | 6.20/6.50 |
| BT50-FMA31.75-150/200 | 1 | 31.75 | 70 | 40 | 150/200 | 22 | 12.7 | 13.5 | M12 | 7.30/8.60 |
| BT50-FMA31.75-250/300 | 1 | 31.75 | 70 | 40 | 250/300 | 22 | 12.7 | 13.5 | M12 | 10.30/11.40 |
| BT50-FMA38.1-45 | 1 | 38.1 | 85 | 50 | 45 | 23 | 15.9 | 15 | M16 | 4.50 |
| BT50-FMA38.1-75/105 | 1 | 38.1 | 85 | 50 | 75/105 | 23 | 15.9 | 15 | M16 | 5.90/7.10 |
| BT50-FMA38.1-125/150 | 1 | 38.1 | 85 | 50 | 125/150 | 23 | 15.9 | 15 | M16 | 8.30/9.50 |
| BT50-FMA38.1-175/200 | 1 | 38.1 | 85 | 50 | 175/200 | 23 | 15.9 | 15 | M16 | 10.30/10.90 |
| BT50-FMA50.8-45 | 1 | 50.8 | 95 | 65 | 45 | 24 | 19.05 | 16 | M16 | 5.00 |
| BT50-FMA50.8-75/105 | 1 | 50.8 | 95 | 65 | 75/105 | 24 | 19.05 | 16 | M16 | 6.60/5.60 |
| BT50-FMA50.8-150/200 | 1 | 50.8 | 95 | 65 | 150/200 | 24 | 19.05 | 16 | M16 | 11.20/13.40 |
| BT50-FMA47.625-75 | 2 | 47.625 | 128.57 | — | 75 | 32 | 25.4 | — | — | 8.30 |
| BT50-FMA47.625-105/200 | 2 | 47.625 | 128.57 | — | 105/200 | 32 | 25.4 | — | — | 10.30/15.00 |
| Code | Model |
|---|---|
| on request | BT30-FMA25.4-45 |
| on request | BT30-FMA25.4-60 |
| on request | BT30-FMA31.75-45 |
| on request | BT40-FMA25.4-45/60 |
| on request | BT40-FMA25.4-90/105 |
| on request | BT40-FMA25.4-125/150 |
| on request | BT40-FMA31.75-45/60 |
| on request | BT40-FMA31.75-90/105 |
| on request | BT40-FMA38.1-45 |
| on request | BT40-FMA38.1-60/90 |
| on request | BT50-FMA25.4-45/75 |
| on request | BT50-FMA25.4-45S/75S |
| on request | BT50-FMA25.4-105/125 |
| on request | BT50-FMA25.4-105S/125S |
| on request | BT50-FMA25.4-150/200 |
| on request | BT50-FMA25.4-150S/200S |
| on request | BT50-FMA25.4-250/300 |
| on request | BT50-FMA25.4-250S/300S |
| on request | BT50-FMA25.4-350/400 |
| on request | BT50-FMA31.75-45/75 |
| on request | BT50-FMA31.75-105/125 |
| on request | BT50-FMA31.75-150/200 |
| on request | BT50-FMA31.75-250/300 |
| on request | BT50-FMA38.1-45 |
| on request | BT50-FMA38.1-75/105 |
| on request | BT50-FMA38.1-125/150 |
| on request | BT50-FMA38.1-175/200 |
| on request | BT50-FMA50.8-45 |
| on request | BT50-FMA50.8-75/105 |
| on request | BT50-FMA50.8-150/200 |
| on request | BT50-FMA47.625-75 |
| on request | BT50-FMA47.625-105/200 |
Fig.1 is the standard body; Fig.2 is the large-flange type with a Ø101.6 PCD and 4-M16x2 mounting holes.
