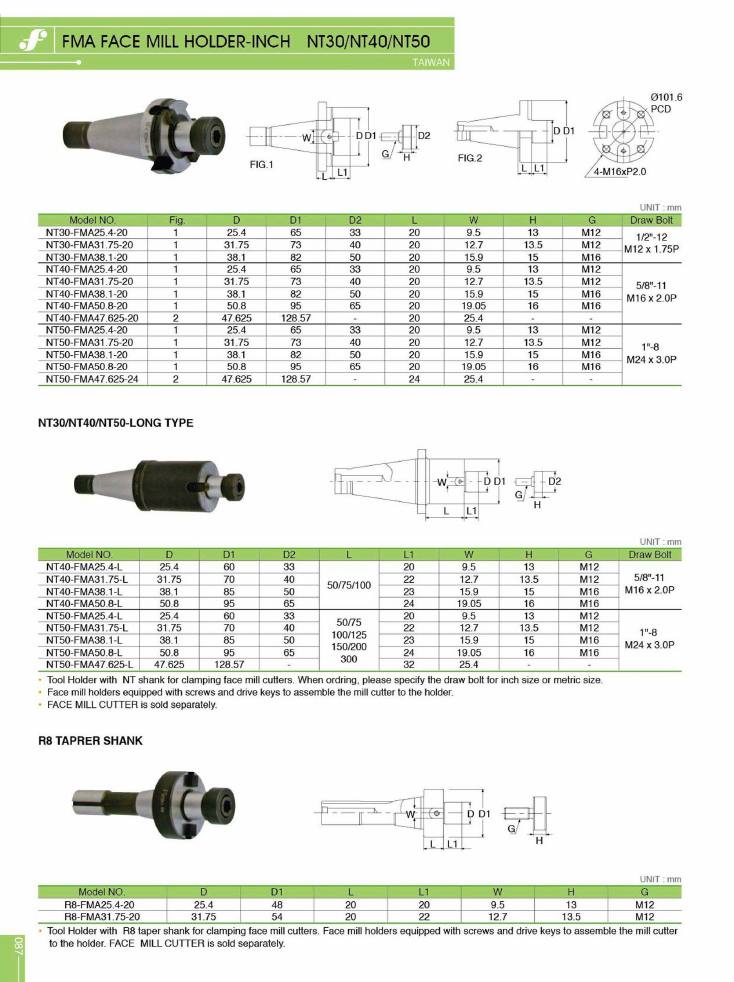

Frejoth accessory catalogue · Page 87
FMA face mill holder-inch
Models on this page
NT30-FMA25.4-20NT30-FMA31.75-20NT30-FMA38.1-20NT40-FMA25.4-20NT40-FMA25.4-LNT40-FMA31.75-20NT40-FMA31.75-LNT40-FMA38.1-20NT40-FMA38.1-LNT40-FMA47.625-20NT40-FMA50.8-20NT40-FMA50.8-LNT50-FMA25.4-20NT50-FMA25.4-LNT50-FMA31.75-20NT50-FMA31.75-LNT50-FMA38.1-20NT50-FMA38.1-LNT50-FMA47.625-24NT50-FMA47.625-LNT50-FMA50.8-20NT50-FMA50.8-LR8-FMA25.4-20R8-FMA31.75-20
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
FMA Face Mill Holder - Inch - NT30/NT40/NT50
FMA · Taiwan
- Tool Holder with NT shank for clamping face mill cutters. When ordering, please specify the draw bolt for inch size or metric size.
- Face mill holders equipped with screws and drive keys to assemble the mill cutter to the holder.
- FACE MILL CUTTER is sold separately.
| model_no | fig | d | d1 | d2 | l | w | h | g | draw_bolt |
|---|---|---|---|---|---|---|---|---|---|
| NT30-FMA25.4-20 | 1 | 25.4 | 65 | 33 | 20 | 9.5 | 13 | M12 | 1/2"-12 or M12 x 1.75P |
| NT30-FMA31.75-20 | 1 | 31.75 | 73 | 40 | 20 | 12.7 | 13.5 | M12 | 1/2"-12 or M12 x 1.75P |
| NT30-FMA38.1-20 | 1 | 38.1 | 82 | 50 | 20 | 15.9 | 15 | M16 | 1/2"-12 or M12 x 1.75P |
| NT40-FMA25.4-20 | 1 | 25.4 | 65 | 33 | 20 | 9.5 | 13 | M12 | 5/8"-11 or M16 x 2.0P |
| NT40-FMA31.75-20 | 1 | 31.75 | 73 | 40 | 20 | 12.7 | 13.5 | M12 | 5/8"-11 or M16 x 2.0P |
| NT40-FMA38.1-20 | 1 | 38.1 | 82 | 50 | 20 | 15.9 | 15 | M16 | 5/8"-11 or M16 x 2.0P |
| NT40-FMA50.8-20 | 1 | 50.8 | 95 | 65 | 20 | 19.05 | 16 | M16 | 5/8"-11 or M16 x 2.0P |
| NT40-FMA47.625-20 | 2 | 47.625 | 128.57 | — | 20 | 25.4 | — | — | 5/8"-11 or M16 x 2.0P |
| NT50-FMA25.4-20 | 1 | 25.4 | 65 | 33 | 20 | 9.5 | 13 | M12 | 1"-8 or M24 x 3.0P |
| NT50-FMA31.75-20 | 1 | 31.75 | 73 | 40 | 20 | 12.7 | 13.5 | M12 | 1"-8 or M24 x 3.0P |
| NT50-FMA38.1-20 | 1 | 38.1 | 82 | 50 | 20 | 15.9 | 15 | M16 | 1"-8 or M24 x 3.0P |
| NT50-FMA50.8-20 | 1 | 50.8 | 95 | 65 | 20 | 19.05 | 16 | M16 | 1"-8 or M24 x 3.0P |
| NT50-FMA47.625-24 | 2 | 47.625 | 128.57 | — | 24 | 25.4 | — | — | 1"-8 or M24 x 3.0P |
| Code | Model |
|---|---|
| on request | NT30-FMA25.4-20 |
| on request | NT30-FMA31.75-20 |
| on request | NT30-FMA38.1-20 |
| on request | NT40-FMA25.4-20 |
| on request | NT40-FMA31.75-20 |
| on request | NT40-FMA38.1-20 |
| on request | NT40-FMA50.8-20 |
| on request | NT40-FMA47.625-20 |
| on request | NT50-FMA25.4-20 |
| on request | NT50-FMA31.75-20 |
| on request | NT50-FMA38.1-20 |
| on request | NT50-FMA50.8-20 |
| on request | NT50-FMA47.625-24 |
Fig.1 is the standard body; Fig.2 is the large-flange type with a Ø101.6 PCD and 4-M16xP2.0 mounting holes.
FMA Face Mill Holder - Inch - NT30/NT40/NT50 Long Type
FMA · Taiwan
- Tool Holder with NT shank for clamping face mill cutters. When ordering, please specify the draw bolt for inch size or metric size.
- Face mill holders equipped with screws and drive keys to assemble the mill cutter to the holder.
- FACE MILL CUTTER is sold separately.
| model_no | d | d1 | d2 | l | l1 | w | h | g | draw_bolt |
|---|---|---|---|---|---|---|---|---|---|
| NT40-FMA25.4-L | 25.4 | 60 | 33 | 50/75/100 | 20 | 9.5 | 13 | M12 | 5/8"-11 or M16 x 2.0P |
| NT40-FMA31.75-L | 31.75 | 70 | 40 | 50/75/100 | 22 | 12.7 | 13.5 | M12 | 5/8"-11 or M16 x 2.0P |
| NT40-FMA38.1-L | 38.1 | 85 | 50 | 50/75/100 | 23 | 15.9 | 15 | M16 | 5/8"-11 or M16 x 2.0P |
| NT40-FMA50.8-L | 50.8 | 95 | 65 | 50/75/100 | 24 | 19.05 | 16 | M16 | 5/8"-11 or M16 x 2.0P |
| NT50-FMA25.4-L | 25.4 | 60 | 33 | 50/75/100/125/150/200/300 | 20 | 9.5 | 13 | M12 | 1"-8 or M24 x 3.0P |
| NT50-FMA31.75-L | 31.75 | 70 | 40 | 50/75/100/125/150/200/300 | 22 | 12.7 | 13.5 | M12 | 1"-8 or M24 x 3.0P |
| NT50-FMA38.1-L | 38.1 | 85 | 50 | 50/75/100/125/150/200/300 | 23 | 15.9 | 15 | M16 | 1"-8 or M24 x 3.0P |
| NT50-FMA50.8-L | 50.8 | 95 | 65 | 50/75/100/125/150/200/300 | 24 | 19.05 | 16 | M16 | 1"-8 or M24 x 3.0P |
| NT50-FMA47.625-L | 47.625 | 128.57 | — | 50/75/100/125/150/200/300 | 32 | 25.4 | — | — | 1"-8 or M24 x 3.0P |
| Code | Model |
|---|---|
| on request | NT40-FMA25.4-L |
| on request | NT40-FMA31.75-L |
| on request | NT40-FMA38.1-L |
| on request | NT40-FMA50.8-L |
| on request | NT50-FMA25.4-L |
| on request | NT50-FMA31.75-L |
| on request | NT50-FMA38.1-L |
| on request | NT50-FMA50.8-L |
| on request | NT50-FMA47.625-L |
FMA Face Mill Holder - Inch - R8 Taper Shank
FMA · Taiwan
- Tool Holder with R8 taper shank for clamping face mill cutters.
- Face mill holders equipped with screws and drive keys to assemble the mill cutter to the holder.
- FACE MILL CUTTER is sold separately.
| model_no | d | d1 | l | l1 | w | h | g |
|---|---|---|---|---|---|---|---|
| R8-FMA25.4-20 | 25.4 | 48 | 20 | 20 | 9.5 | 13 | M12 |
| R8-FMA31.75-20 | 31.75 | 54 | 20 | 22 | 12.7 | 13.5 | M12 |
| Code | Model |
|---|---|
| on request | R8-FMA25.4-20 |
| on request | R8-FMA31.75-20 |
