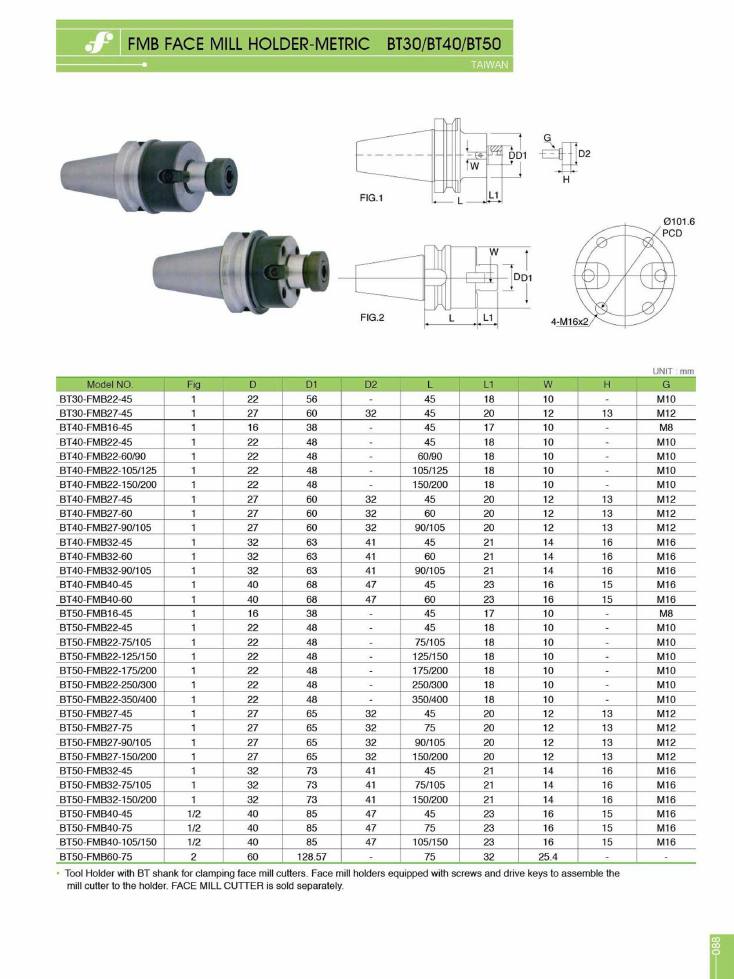

Source Frejoth catalogue page 88 — FMB face mill holder-metric

Open full-size source page

Frejoth accessory catalogue · Page 88

FMB face mill holder-metric

Models on this page

BT30-FMB22-45BT30-FMB27-45BT40-FMB16-45BT40-FMB22-105/125BT40-FMB22-150/200BT40-FMB22-45BT40-FMB22-60/90BT40-FMB27-45BT40-FMB27-60BT40-FMB27-90/105BT40-FMB32-45BT40-FMB32-60BT40-FMB32-90/105BT40-FMB40-45BT40-FMB40-60BT50-FMB16-45BT50-FMB22-125/150BT50-FMB22-175/200BT50-FMB22-250/300BT50-FMB22-350/400BT50-FMB22-45BT50-FMB22-75/105BT50-FMB27-150/200BT50-FMB27-45BT50-FMB27-75BT50-FMB27-90/105BT50-FMB32-150/200BT50-FMB32-45BT50-FMB32-75/105BT50-FMB40-105/150BT50-FMB40-45BT50-FMB40-75BT50-FMB60-75

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

FMB Face Mill Holder-Metric BT30/BT40/BT50

FMB · Taiwan

dimensions (mm)
model_no	fig	d	d1	d2	l	l1	w	h	g
BT30-FMB22-45	1	22	56	—	45	18	10	—	M10
BT30-FMB27-45	1	27	60	32	45	20	12	13	M12
BT40-FMB16-45	1	16	38	—	45	17	10	—	M8
BT40-FMB22-45	1	22	48	—	45	18	10	—	M10
BT40-FMB22-60/90	1	22	48	—	60/90	18	10	—	M10
BT40-FMB22-105/125	1	22	48	—	105/125	18	10	—	M10
BT40-FMB22-150/200	1	22	48	—	150/200	18	10	—	M10
BT40-FMB27-45	1	27	60	32	45	20	12	13	M12
BT40-FMB27-60	1	27	60	32	60	20	12	13	M12
BT40-FMB27-90/105	1	27	60	32	90/105	20	12	13	M12
BT40-FMB32-45	1	32	63	41	45	21	14	16	M16
BT40-FMB32-60	1	32	63	41	60	21	14	16	M16
BT40-FMB32-90/105	1	32	63	41	90/105	21	14	16	M16
BT40-FMB40-45	1	40	68	47	45	23	16	15	M16
BT40-FMB40-60	1	40	68	47	60	23	16	15	M16
BT50-FMB16-45	1	16	38	—	45	17	10	—	M8
BT50-FMB22-45	1	22	48	—	45	18	10	—	M10
BT50-FMB22-75/105	1	22	48	—	75/105	18	10	—	M10
BT50-FMB22-125/150	1	22	48	—	125/150	18	10	—	M10
BT50-FMB22-175/200	1	22	48	—	175/200	18	10	—	M10
BT50-FMB22-250/300	1	22	48	—	250/300	18	10	—	M10
BT50-FMB22-350/400	1	22	48	—	350/400	18	10	—	M10
BT50-FMB27-45	1	27	65	32	45	20	12	13	M12
BT50-FMB27-75	1	27	65	32	75	20	12	13	M12
BT50-FMB27-90/105	1	27	65	32	90/105	20	12	13	M12
BT50-FMB27-150/200	1	27	65	32	150/200	20	12	13	M12
BT50-FMB32-45	1	32	73	41	45	21	14	16	M16
BT50-FMB32-75/105	1	32	73	41	75/105	21	14	16	M16
BT50-FMB32-150/200	1	32	73	41	150/200	21	14	16	M16
BT50-FMB40-45	1/2	40	85	47	45	23	16	15	M16
BT50-FMB40-75	1/2	40	85	47	75	23	16	15	M16
BT50-FMB40-105/150	1/2	40	85	47	105/150	23	16	15	M16
BT50-FMB60-75	2	60	128.57	—	75	32	25.4	—	—

Order references
Code	Model
on request	BT30-FMB22-45
on request	BT30-FMB27-45
on request	BT40-FMB16-45
on request	BT40-FMB22-45
on request	BT40-FMB22-60/90
on request	BT40-FMB22-105/125
on request	BT40-FMB22-150/200
on request	BT40-FMB27-45
on request	BT40-FMB27-60
on request	BT40-FMB27-90/105
on request	BT40-FMB32-45
on request	BT40-FMB32-60
on request	BT40-FMB32-90/105
on request	BT40-FMB40-45
on request	BT40-FMB40-60
on request	BT50-FMB16-45
on request	BT50-FMB22-45
on request	BT50-FMB22-75/105
on request	BT50-FMB22-125/150
on request	BT50-FMB22-175/200
on request	BT50-FMB22-250/300
on request	BT50-FMB22-350/400
on request	BT50-FMB27-45
on request	BT50-FMB27-75
on request	BT50-FMB27-90/105
on request	BT50-FMB27-150/200
on request	BT50-FMB32-45
on request	BT50-FMB32-75/105
on request	BT50-FMB32-150/200
on request	BT50-FMB40-45
on request	BT50-FMB40-75
on request	BT50-FMB40-105/150
on request	BT50-FMB60-75

Tool holder with BT shank for clamping face mill cutters. Face mill holders equipped with screws and drive keys to assemble the mill cutter to the holder. FACE MILL CUTTER is sold separately. Drawing notes: ø101.6 PCD, 4-M16x2.
