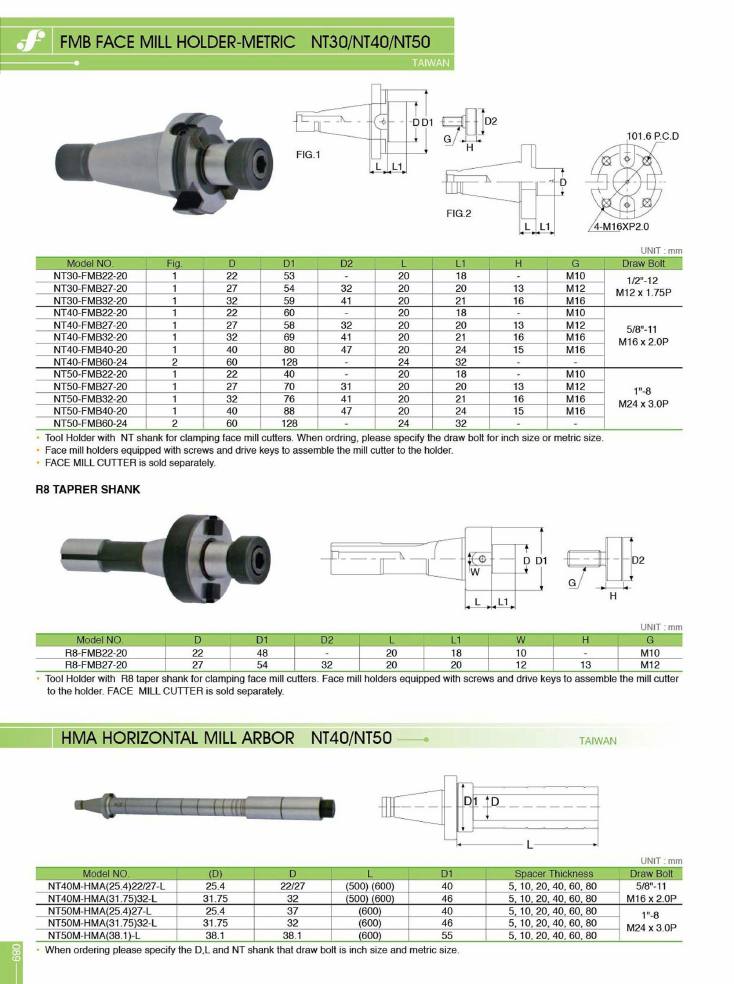

Frejoth accessory catalogue · Page 89
FMB face mill holder-metric / HMA horizontal mill arbor
Models on this page
NT30-FMB22-20NT30-FMB27-20NT30-FMB32-20NT40-FMB22-20NT40-FMB27-20NT40-FMB32-20NT40-FMB40-20NT40-FMB60-24NT40M-HMA(25.4)22/27-LNT40M-HMA(31.75)32-LNT50-FMB22-20NT50-FMB27-20NT50-FMB32-20NT50-FMB40-20NT50-FMB60-24NT50M-HMA(25.4)27-LNT50M-HMA(31.75)32-LNT50M-HMA(38.1)-LR8-FMB22-20R8-FMB27-20
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
FMB Face Mill Holder - Metric - NT30/NT40/NT50
FMB · Taiwan
- Tool Holder with NT shank for clamping face mill cutters. When ordering, please specify the draw bolt for inch size or metric size.
- Face mill holders equipped with screws and drive keys to assemble the mill cutter to the holder.
- FACE MILL CUTTER is sold separately.
| model_no | fig | d | d1 | d2 | l | l1 | h | g | draw_bolt |
|---|---|---|---|---|---|---|---|---|---|
| NT30-FMB22-20 | 1 | 22 | 53 | — | 20 | 18 | — | M10 | 1/2"-12 or M12 x 1.75P |
| NT30-FMB27-20 | 1 | 27 | 54 | 32 | 20 | 20 | 13 | M12 | 1/2"-12 or M12 x 1.75P |
| NT30-FMB32-20 | 1 | 32 | 59 | 41 | 20 | 21 | 16 | M16 | 1/2"-12 or M12 x 1.75P |
| NT40-FMB22-20 | 1 | 22 | 60 | — | 20 | 18 | — | M10 | 5/8"-11 or M16 x 2.0P |
| NT40-FMB27-20 | 1 | 27 | 58 | 32 | 20 | 20 | 13 | M12 | 5/8"-11 or M16 x 2.0P |
| NT40-FMB32-20 | 1 | 32 | 69 | 41 | 20 | 21 | 16 | M16 | 5/8"-11 or M16 x 2.0P |
| NT40-FMB40-20 | 1 | 40 | 80 | 47 | 20 | 24 | 15 | M16 | 5/8"-11 or M16 x 2.0P |
| NT40-FMB60-24 | 2 | 60 | 128 | — | 24 | 32 | — | — | 5/8"-11 or M16 x 2.0P |
| NT50-FMB22-20 | 1 | 22 | 40 | — | 20 | 18 | — | M10 | 1"-8 or M24 x 3.0P |
| NT50-FMB27-20 | 1 | 27 | 70 | 31 | 20 | 20 | 13 | M12 | 1"-8 or M24 x 3.0P |
| NT50-FMB32-20 | 1 | 32 | 76 | 41 | 20 | 21 | 16 | M16 | 1"-8 or M24 x 3.0P |
| NT50-FMB40-20 | 1 | 40 | 88 | 47 | 20 | 24 | 15 | M16 | 1"-8 or M24 x 3.0P |
| NT50-FMB60-24 | 2 | 60 | 128 | — | 24 | 32 | — | — | 1"-8 or M24 x 3.0P |
| Code | Model |
|---|---|
| on request | NT30-FMB22-20 |
| on request | NT30-FMB27-20 |
| on request | NT30-FMB32-20 |
| on request | NT40-FMB22-20 |
| on request | NT40-FMB27-20 |
| on request | NT40-FMB32-20 |
| on request | NT40-FMB40-20 |
| on request | NT40-FMB60-24 |
| on request | NT50-FMB22-20 |
| on request | NT50-FMB27-20 |
| on request | NT50-FMB32-20 |
| on request | NT50-FMB40-20 |
| on request | NT50-FMB60-24 |
Fig.1 is the standard body; Fig.2 is the large-flange type with a 101.6 P.C.D and 4-M16XP2.0 mounting holes.
