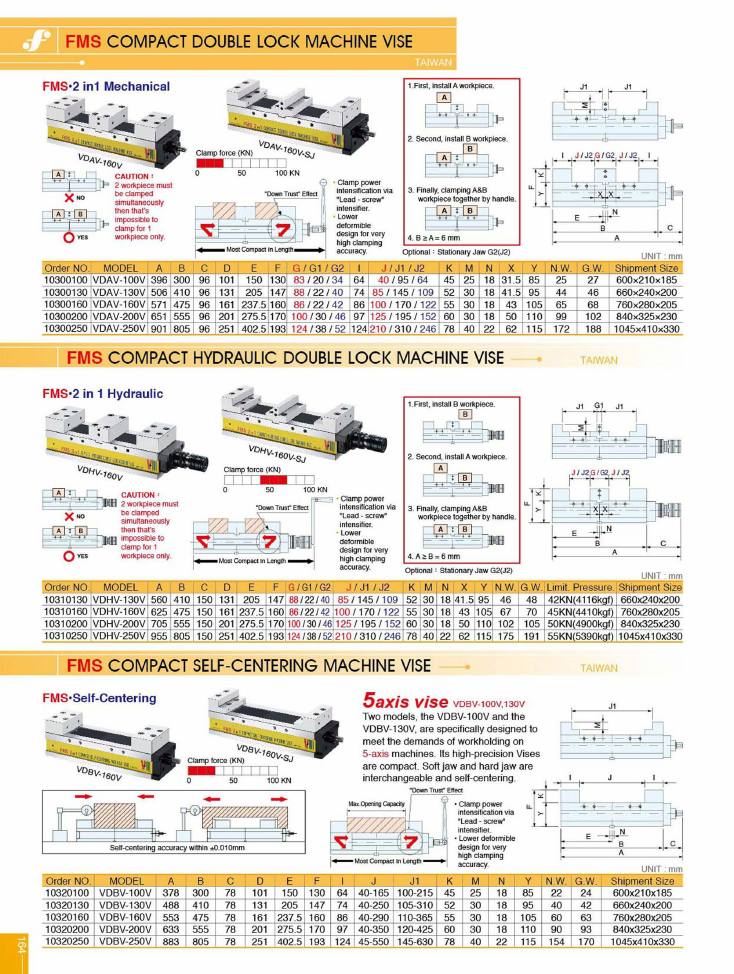

FMS Compact Double Lock Machine Vise
- Clamp power intensification via "Lead-screw" intensifier.
- Lower deformible design for very high clamping accuracy.
- "Down Trust" Effect.
- Most Compact In Length.
| order_no | model | a | b | c | d | e | f | g_g1_g2 | i | j_j1_j2 | k | m | n | x | y | n_w | g_w | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10300100 | VDAV-100V | 396 | 300 | 96 | 101 | 150 | 130 | 83 / 20 / 34 | 64 | 40 / 95 / 64 | 45 | 25 | 18 | 31.5 | 85 | 25 | 27 | 600x210x185 |
| 10300130 | VDAV-130V | 506 | 410 | 96 | 131 | 205 | 147 | 88 / 22 / 40 | 74 | 85 / 145 / 109 | 52 | 30 | 18 | 41.5 | 95 | 44 | 46 | 660x240x200 |
| 10300160 | VDAV-160V | 571 | 475 | 96 | 161 | 237.5 | 160 | 86 / 22 / 42 | 86 | 100 / 170 / 122 | 55 | 30 | 18 | 43 | 105 | 65 | 68 | 760x280x205 |
| 10300200 | VDAV-200V | 651 | 555 | 96 | 201 | 275.5 | 170 | 100 / 30 / 46 | 97 | 125 / 195 / 152 | 60 | 30 | 18 | 50 | 110 | 99 | 102 | 840x325x230 |
| 10300250 | VDAV-250V | 901 | 805 | 96 | 251 | 402.5 | 193 | 124 / 38 / 52 | 124 | 210 / 310 / 246 | 78 | 40 | 22 | 62 | 115 | 172 | 188 | 1045x410x330 |
| Code | Model |
|---|---|
| 10300100 | VDAV-100V |
| 10300130 | VDAV-130V |
| 10300160 | VDAV-160V |
| 10300200 | VDAV-200V |
| 10300250 | VDAV-250V |
CAUTION: 2 workpiece must be clamped simultaneously then that's impossible to clamp for 1 workpiece only. Operating sequence: 1. First, install A workpiece. 2. Second, install B workpiece. 3. Finally, clamping A&B workpiece together by handle. 4. B >= A = 6 mm. Optional: Stationary Jaw G2(J2). Clamp force scale indicates approximately 10-25 KN.
FMS Compact Hydraulic Double Lock Machine Vise
- Clamp power intensification via "Lead-screw" intensifier.
- Lower deformible design for very high clamping accuracy.
- "Down Trust" Effect.
- Most Compact In Length.
| order_no | model | a | b | c | d | e | f | g_g1_g2 | j_j1_j2 | k | m | n | x | y | n_w | g_w | limit_pressure | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10310130 | VDHV-130V | 560 | 410 | 150 | 131 | 205 | 147 | 88 / 22 / 40 | 85 / 145 / 109 | 52 | 30 | 18 | 41.5 | 95 | 46 | 48 | 42KN(4116kgf) | 660x240x200 |
| 10310160 | VDHV-160V | 625 | 475 | 150 | 161 | 237.5 | 160 | 86 / 22 / 42 | 100 / 170 / 122 | 55 | 30 | 18 | 43 | 105 | 67 | 70 | 45KN(4410kgf) | 760x280x205 |
| 10310200 | VDHV-200V | 705 | 555 | 150 | 201 | 275.5 | 170 | 100 / 30 / 46 | 125 / 195 / 152 | 60 | 30 | 18 | 50 | 110 | 102 | 105 | 50KN(4900kgf) | 840x325x230 |
| 10310250 | VDHV-250V | 955 | 805 | 150 | 251 | 402.5 | 193 | 124 / 38 / 52 | 210 / 310 / 246 | 78 | 40 | 22 | 62 | 115 | 175 | 191 | 55KN(5390kgf) | 1045x410x330 |
| Code | Model |
|---|---|
| 10310130 | VDHV-130V |
| 10310160 | VDHV-160V |
| 10310200 | VDHV-200V |
| 10310250 | VDHV-250V |
CAUTION: 2 workpiece must be clamped simultaneously then that's impossible to clamp for 1 workpiece only. Operating sequence: 1. First, install B workpiece. 2. Second, install A workpiece. 3. Finally, clamping A&B workpiece together by handle. 4. A >= B = 6 mm. Optional: Stationary Jaw G2(J2). Clamp force scale indicates approximately 40-65 KN.
FMS Compact Self-Centering Machine Vise
- Self-centering accuracy within +/-0.010mm.
- Clamp power intensification via "Lead-screw" intensifier.
- Lower deformible design for very high clamping accuracy.
- "Down Trust" Effect.
- Most Compact In Length.
| order_no | model | a | b | c | d | e | f | i | j | j1 | k | m | n | y | n_w | g_w | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10320100 | VDBV-100V | 378 | 300 | 78 | 101 | 150 | 130 | 64 | 40-165 | 100-215 | 45 | 25 | 18 | 85 | 22 | 24 | 600x210x185 |
| 10320130 | VDBV-130V | 488 | 410 | 78 | 131 | 205 | 147 | 74 | 40-250 | 105-310 | 52 | 30 | 18 | 95 | 40 | 42 | 660x240x200 |
| 10320160 | VDBV-160V | 553 | 475 | 78 | 161 | 237.5 | 160 | 86 | 40-290 | 110-365 | 55 | 30 | 18 | 105 | 60 | 63 | 760x280x205 |
| 10320200 | VDBV-200V | 633 | 555 | 78 | 201 | 275.5 | 170 | 97 | 40-350 | 120-425 | 60 | 30 | 18 | 110 | 90 | 93 | 840x325x230 |
| 10320250 | VDBV-250V | 883 | 805 | 78 | 251 | 402.5 | 193 | 124 | 45-550 | 145-630 | 78 | 40 | 22 | 115 | 154 | 170 | 1045x410x330 |
| Code | Model |
|---|---|
| 10320100 | VDBV-100V |
| 10320130 | VDBV-130V |
| 10320160 | VDBV-160V |
| 10320200 | VDBV-200V |
| 10320250 | VDBV-250V |
5axis vise VDBV-100V, 130V: Two models, the VDBV-100V and the VDBV-130V, are specifically designed to meet the demands of workholding on 5-axis machines. Its high-precision Vises are compact. Soft jaw and hard jaw are interchangeable and self-centering. Clamp force scale indicates approximately 10-20 KN.
