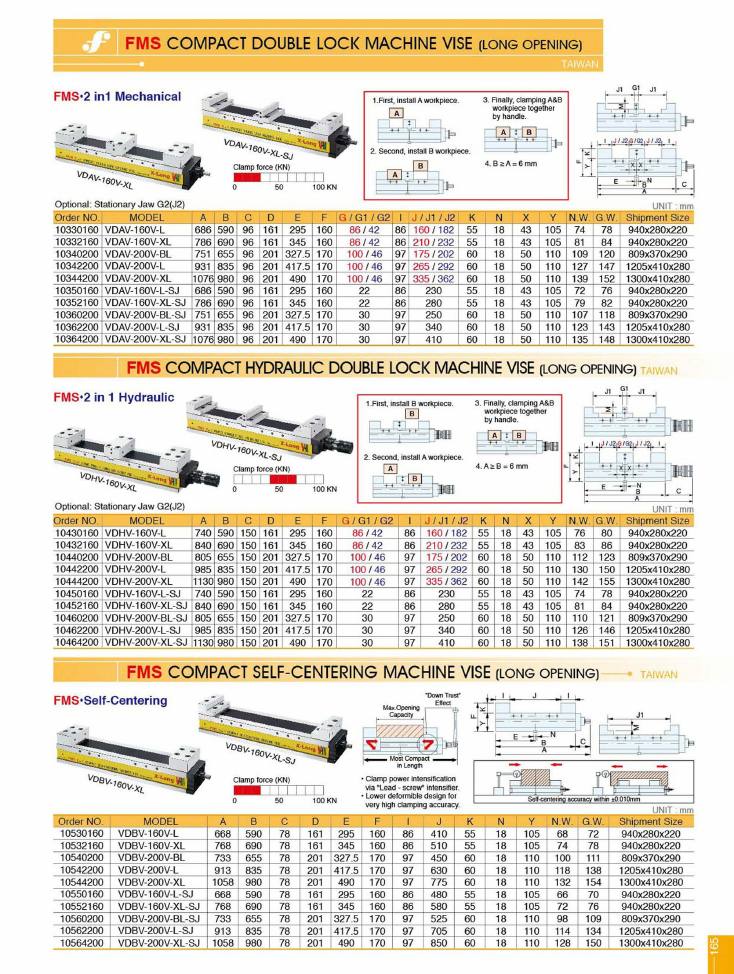

Frejoth accessory catalogue · Page 165

FMS Compact Double Lock Machine Vise (Long Opening)

Models on this page

VDAV-160V-LVDAV-160V-L-SJVDAV-160V-XLVDAV-160V-XL-SJVDAV-200V-BLVDAV-200V-BL-SJVDAV-200V-LVDAV-200V-L-SJVDAV-200V-XLVDAV-200V-XL-SJVDBV-160V-LVDBV-160V-L-SJVDBV-160V-XLVDBV-160V-XL-SJVDBV-200V-BLVDBV-200V-BL-SJVDBV-200V-LVDBV-200V-L-SJVDBV-200V-XLVDBV-200V-XL-SJVDHV-160V-LVDHV-160V-L-SJVDHV-160V-XLVDHV-160V-XL-SJVDHV-200V-BLVDHV-200V-BL-SJVDHV-200V-LVDHV-200V-L-SJVDHV-200V-XLVDHV-200V-XL-SJ

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

FMS Compact Double Lock Machine Vise (Long Opening)

FMS·2 in 1 Mechanical · Taiwan

specifications (mm)
order_no	model	a	b	c	d	e	f	g_g1_g2	i	j_j1_j2	k	n	x	y	n_w	g_w	shipment_size
10330160	VDAV-160V-L	686	590	96	161	295	160	86 / 42	86	160 / 182	55	18	43	105	74	78	940x280x220
10332160	VDAV-160V-XL	786	690	96	161	345	160	86 / 42	86	210 / 232	55	18	43	105	81	84	940x280x220
10340200	VDAV-200V-BL	751	655	96	201	327.5	170	100 / 46	97	175 / 202	60	18	50	110	109	120	809x370x290
10342200	VDAV-200V-L	931	835	96	201	417.5	170	100 / 46	97	265 / 292	60	18	50	110	127	147	1205x410x280
10344200	VDAV-200V-XL	1076	980	96	201	490	170	100 / 46	97	335 / 362	60	18	50	110	139	152	1300x410x280
10350160	VDAV-160V-L-SJ	686	590	96	161	295	160	22	86	230	55	18	43	105	72	76	940x280x220
10352160	VDAV-160V-XL-SJ	786	690	96	161	345	160	22	86	280	55	18	43	105	79	82	940x280x220
10360200	VDAV-200V-BL-SJ	751	655	96	201	327.5	170	30	97	250	60	18	50	110	107	118	809x370x290
10362200	VDAV-200V-L-SJ	931	835	96	201	417.5	170	30	97	340	60	18	50	110	123	143	1205x410x280
10364200	VDAV-200V-XL-SJ	1076	980	96	201	490	170	30	97	410	60	18	50	110	135	148	1300x410x280

Order references
Code	Model
10330160	VDAV-160V-L
10332160	VDAV-160V-XL
10340200	VDAV-200V-BL
10342200	VDAV-200V-L
10344200	VDAV-200V-XL
10350160	VDAV-160V-L-SJ
10352160	VDAV-160V-XL-SJ
10360200	VDAV-200V-BL-SJ
10362200	VDAV-200V-L-SJ
10364200	VDAV-200V-XL-SJ

Operating sequence: 1. First, install A workpiece. 2. Second, install B workpiece. 3. Finally, clamping A&B workpiece together by handle. 4. B >= A = 6 mm. Optional: Stationary Jaw G2(J2). Clamp force scale indicates approximately 10-25 KN.

FMS Compact Hydraulic Double Lock Machine Vise (Long Opening)

FMS·2 in 1 Hydraulic · Taiwan

specifications (mm)
order_no	model	a	b	c	d	e	f	g_g1_g2	i	j_j1_j2	k	n	x	y	n_w	g_w	shipment_size
10430160	VDHV-160V-L	740	590	150	161	295	160	86 / 42	86	160 / 182	55	18	43	105	76	80	940x280x220
10432160	VDHV-160V-XL	840	690	150	161	345	160	86 / 42	86	210 / 232	55	18	43	105	83	86	940x280x220
10440200	VDHV-200V-BL	805	655	150	201	327.5	170	100 / 46	97	175 / 202	60	18	50	110	112	123	809x370x290
10442200	VDHV-200V-L	985	835	150	201	417.5	170	100 / 46	97	265 / 292	60	18	50	110	130	150	1205x410x280
10444200	VDHV-200V-XL	1130	980	150	201	490	170	100 / 46	97	335 / 362	60	18	50	110	142	155	1300x410x280
10450160	VDHV-160V-L-SJ	740	590	150	161	295	160	22	86	230	55	18	43	105	74	78	940x280x220
10452160	VDHV-160V-XL-SJ	840	690	150	161	345	160	22	86	280	55	18	43	105	81	84	940x280x220
10460200	VDHV-200V-BL-SJ	805	655	150	201	327.5	170	30	97	250	60	18	50	110	110	121	809x370x290
10462200	VDHV-200V-L-SJ	985	835	150	201	417.5	170	30	97	340	60	18	50	110	126	146	1205x410x280
10464200	VDHV-200V-XL-SJ	1130	980	150	201	490	170	30	97	410	60	18	50	110	138	151	1300x410x280

Order references
Code	Model
10430160	VDHV-160V-L
10432160	VDHV-160V-XL
10440200	VDHV-200V-BL
10442200	VDHV-200V-L
10444200	VDHV-200V-XL
10450160	VDHV-160V-L-SJ
10452160	VDHV-160V-XL-SJ
10460200	VDHV-200V-BL-SJ
10462200	VDHV-200V-L-SJ
10464200	VDHV-200V-XL-SJ

Operating sequence: 1. First, install B workpiece. 2. Second, install A workpiece. 3. Finally, clamping A&B workpiece together by handle. 4. A >= B = 6 mm. Optional: Stationary Jaw G2(J2). Clamp force scale indicates approximately 40-65 KN.

FMS Compact Self-Centering Machine Vise (Long Opening)

FMS·Self-Centering · Taiwan

Clamp power intensification via "Lead-screw" intensifier.
Lower deformible design for very high clamping accuracy.
Self-centering accuracy within +/-0.010mm.
"Down Trust" Effect.
Most Compact In Length.

specifications (mm)
order_no	model	a	b	c	d	e	f	i	j	k	n	y	n_w	g_w	shipment_size
10530160	VDBV-160V-L	668	590	78	161	295	160	86	410	55	18	105	68	72	940x280x220
10532160	VDBV-160V-XL	768	690	78	161	345	160	86	510	55	18	105	74	78	940x280x220
10540200	VDBV-200V-BL	733	655	78	201	327.5	170	97	450	60	18	110	100	111	809x370x290
10542200	VDBV-200V-L	913	835	78	201	417.5	170	97	630	60	18	110	118	138	1205x410x280
10544200	VDBV-200V-XL	1058	980	78	201	490	170	97	775	60	18	110	132	154	1300x410x280
10550160	VDBV-160V-L-SJ	668	590	78	161	295	160	86	480	55	18	105	66	70	940x280x220
10552160	VDBV-160V-XL-SJ	768	690	78	161	345	160	86	580	55	18	105	72	76	940x280x220
10560200	VDBV-200V-BL-SJ	733	655	78	201	327.5	170	97	525	60	18	110	98	109	809x370x290
10562200	VDBV-200V-L-SJ	913	835	78	201	417.5	170	97	705	60	18	110	114	134	1205x410x280
10564200	VDBV-200V-XL-SJ	1058	980	78	201	490	170	97	850	60	18	110	128	150	1300x410x280

Order references
Code	Model
10532160	VDBV-160V-XL
10530160	VDBV-160V-L
10540200	VDBV-200V-BL
10542200	VDBV-200V-L
10544200	VDBV-200V-XL
10550160	VDBV-160V-L-SJ
10552160	VDBV-160V-XL-SJ
10560200	VDBV-200V-BL-SJ
10562200	VDBV-200V-L-SJ
10564200	VDBV-200V-XL-SJ

Clamp force scale indicates approximately 10-20 KN.
