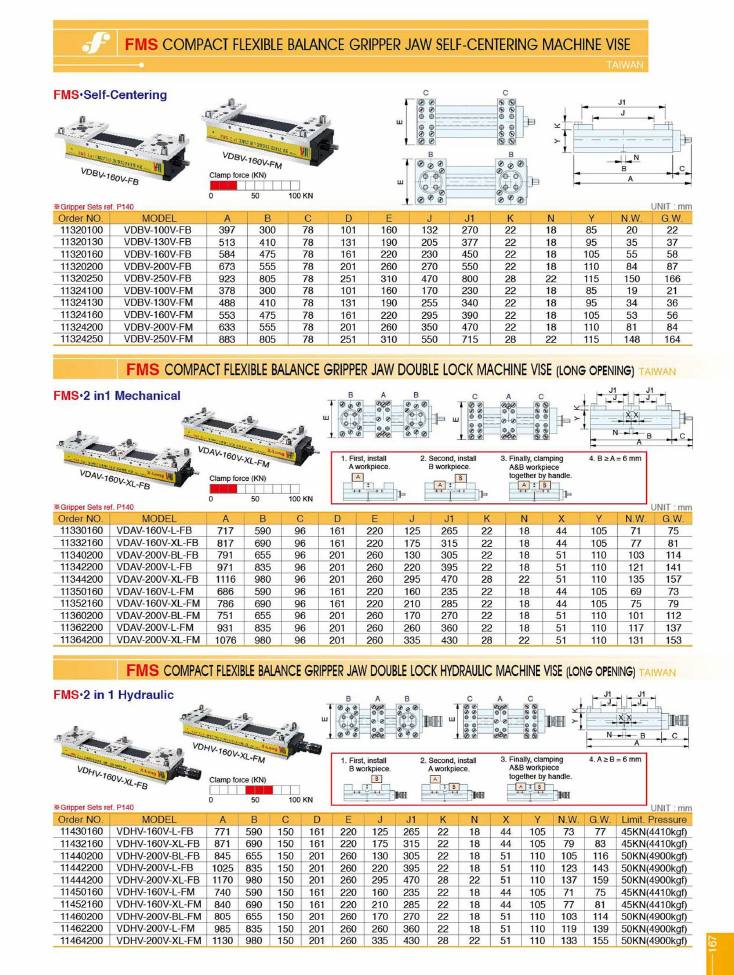

FMS Compact Flexible Balance Gripper Jaw Self-Centering Machine Vise
Models on this page
VDAV-160V-L-FBVDAV-160V-L-FMVDAV-160V-XL-FBVDAV-160V-XL-FMVDAV-200V-BL-FBVDAV-200V-BL-FMVDAV-200V-L-FBVDAV-200V-L-FMVDAV-200V-XL-FBVDAV-200V-XL-FMVDBV-100V-FBVDBV-100V-FMVDBV-130V-FBVDBV-130V-FMVDBV-160V-FBVDBV-160V-FMVDBV-200V-FBVDBV-200V-FMVDBV-250V-FBVDBV-250V-FMVDHV-160V-L-FBVDHV-160V-L-FMVDHV-160V-XL-FBVDHV-160V-XL-FMVDHV-200V-BL-FBVDHV-200V-BL-FMVDHV-200V-L-FBVDHV-200V-L-FMVDHV-200V-XL-FBVDHV-200V-XL-FM
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
FMS Compact Flexible Balance Gripper Jaw Self-Centering Machine Vise
FMS·Self-Centering · Taiwan
| order_no | model | a | b | c | d | e | j | j1 | k | n | y | n_w | g_w |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11320100 | VDBV-100V-FB | 397 | 300 | 78 | 101 | 160 | 132 | 270 | 22 | 18 | 85 | 20 | 22 |
| 11320130 | VDBV-130V-FB | 513 | 410 | 78 | 131 | 190 | 205 | 377 | 22 | 18 | 95 | 35 | 37 |
| 11320160 | VDBV-160V-FB | 584 | 475 | 78 | 161 | 220 | 230 | 450 | 22 | 18 | 105 | 55 | 58 |
| 11320200 | VDBV-200V-FB | 673 | 555 | 78 | 201 | 260 | 270 | 550 | 22 | 18 | 110 | 84 | 87 |
| 11320250 | VDBV-250V-FB | 923 | 805 | 78 | 251 | 310 | 470 | 800 | 28 | 22 | 115 | 150 | 166 |
| 11324100 | VDBV-100V-FM | 378 | 300 | 78 | 101 | 160 | 170 | 230 | 22 | 18 | 85 | 19 | 21 |
| 11324130 | VDBV-130V-FM | 488 | 410 | 78 | 131 | 190 | 255 | 340 | 22 | 18 | 95 | 34 | 36 |
| 11324160 | VDBV-160V-FM | 553 | 475 | 78 | 161 | 220 | 295 | 390 | 22 | 18 | 105 | 53 | 56 |
| 11324200 | VDBV-200V-FM | 633 | 555 | 78 | 201 | 260 | 350 | 470 | 22 | 18 | 110 | 81 | 84 |
| 11324250 | VDBV-250V-FM | 883 | 805 | 78 | 251 | 310 | 550 | 715 | 28 | 22 | 115 | 148 | 164 |
| Code | Model |
|---|---|
| 11320100 | VDBV-100V-FB |
| 11320130 | VDBV-130V-FB |
| 11320160 | VDBV-160V-FB |
| 11320200 | VDBV-200V-FB |
| 11320250 | VDBV-250V-FB |
| 11324100 | VDBV-100V-FM |
| 11324130 | VDBV-130V-FM |
| 11324160 | VDBV-160V-FM |
| 11324200 | VDBV-200V-FM |
| 11324250 | VDBV-250V-FM |
Gripper Sets ref. P140. Clamp force scale indicates approximately 10-20 KN. FB = flexible balance jaw, FM = flexible movable jaw.
FMS Compact Flexible Balance Gripper Jaw Double Lock Machine Vise (Long Opening)
FMS·2 in 1 Mechanical · Taiwan
| order_no | model | a | b | c | d | e | j | j1 | k | n | x | y | n_w | g_w |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11330160 | VDAV-160V-L-FB | 717 | 590 | 96 | 161 | 220 | 125 | 265 | 22 | 18 | 44 | 105 | 71 | 75 |
| 11332160 | VDAV-160V-XL-FB | 817 | 690 | 96 | 161 | 220 | 175 | 315 | 22 | 18 | 44 | 105 | 77 | 81 |
| 11340200 | VDAV-200V-BL-FB | 791 | 655 | 96 | 201 | 260 | 130 | 305 | 22 | 18 | 51 | 110 | 103 | 114 |
| 11342200 | VDAV-200V-L-FB | 971 | 835 | 96 | 201 | 260 | 220 | 395 | 22 | 18 | 51 | 110 | 121 | 141 |
| 11344200 | VDAV-200V-XL-FB | 1116 | 980 | 96 | 201 | 260 | 295 | 470 | 28 | 22 | 51 | 110 | 135 | 157 |
| 11350160 | VDAV-160V-L-FM | 686 | 590 | 96 | 161 | 220 | 160 | 235 | 22 | 18 | 44 | 105 | 69 | 73 |
| 11352160 | VDAV-160V-XL-FM | 786 | 690 | 96 | 161 | 220 | 210 | 285 | 22 | 18 | 44 | 105 | 75 | 79 |
| 11360200 | VDAV-200V-BL-FM | 751 | 655 | 96 | 201 | 260 | 170 | 270 | 22 | 18 | 51 | 110 | 101 | 112 |
| 11362200 | VDAV-200V-L-FM | 931 | 835 | 96 | 201 | 260 | 260 | 360 | 22 | 18 | 51 | 110 | 117 | 137 |
| 11364200 | VDAV-200V-XL-FM | 1076 | 980 | 96 | 201 | 260 | 335 | 430 | 28 | 22 | 51 | 110 | 131 | 153 |
| Code | Model |
|---|---|
| 11330160 | VDAV-160V-L-FB |
| 11332160 | VDAV-160V-XL-FB |
| 11340200 | VDAV-200V-BL-FB |
| 11342200 | VDAV-200V-L-FB |
| 11344200 | VDAV-200V-XL-FB |
| 11350160 | VDAV-160V-L-FM |
| 11352160 | VDAV-160V-XL-FM |
| 11360200 | VDAV-200V-BL-FM |
| 11362200 | VDAV-200V-L-FM |
| 11364200 | VDAV-200V-XL-FM |
Gripper Sets ref. P140. Operating sequence: 1. First, install A workpiece. 2. Second, install B workpiece. 3. Finally, clamping A&B workpiece together by handle. 4. B >= A = 6 mm. Clamp force scale indicates approximately 10-25 KN.
FMS Compact Flexible Balance Gripper Jaw Double Lock Hydraulic Machine Vise (Long Opening)
FMS·2 in 1 Hydraulic · Taiwan
| order_no | model | a | b | c | d | e | j | j1 | k | n | x | y | n_w | g_w | limit_pressure |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 11430160 | VDHV-160V-L-FB | 771 | 590 | 150 | 161 | 220 | 125 | 265 | 22 | 18 | 44 | 105 | 73 | 77 | 45KN(4410kgf) |
| 11432160 | VDHV-160V-XL-FB | 871 | 690 | 150 | 161 | 220 | 175 | 315 | 22 | 18 | 44 | 105 | 79 | 83 | 45KN(4410kgf) |
| 11440200 | VDHV-200V-BL-FB | 845 | 655 | 150 | 201 | 260 | 130 | 305 | 22 | 18 | 51 | 110 | 105 | 116 | 50KN(4900kgf) |
| 11442200 | VDHV-200V-L-FB | 1025 | 835 | 150 | 201 | 260 | 220 | 395 | 22 | 18 | 51 | 110 | 123 | 143 | 50KN(4900kgf) |
| 11444200 | VDHV-200V-XL-FB | 1170 | 980 | 150 | 201 | 260 | 295 | 470 | 28 | 22 | 51 | 110 | 137 | 159 | 50KN(4900kgf) |
| 11450160 | VDHV-160V-L-FM | 740 | 590 | 150 | 161 | 220 | 160 | 235 | 22 | 18 | 44 | 105 | 71 | 75 | 45KN(4410kgf) |
| 11452160 | VDHV-160V-XL-FM | 840 | 690 | 150 | 161 | 220 | 210 | 285 | 22 | 18 | 44 | 105 | 77 | 81 | 45KN(4410kgf) |
| 11460200 | VDHV-200V-BL-FM | 805 | 655 | 150 | 201 | 260 | 170 | 270 | 22 | 18 | 51 | 110 | 103 | 114 | 50KN(4900kgf) |
| 11462200 | VDHV-200V-L-FM | 985 | 835 | 150 | 201 | 260 | 260 | 360 | 22 | 18 | 51 | 110 | 119 | 139 | 50KN(4900kgf) |
| 11464200 | VDHV-200V-XL-FM | 1130 | 980 | 150 | 201 | 260 | 335 | 430 | 28 | 22 | 51 | 110 | 133 | 155 | 50KN(4900kgf) |
| Code | Model |
|---|---|
| 11430160 | VDHV-160V-L-FB |
| 11432160 | VDHV-160V-XL-FB |
| 11440200 | VDHV-200V-BL-FB |
| 11442200 | VDHV-200V-L-FB |
| 11444200 | VDHV-200V-XL-FB |
| 11450160 | VDHV-160V-L-FM |
| 11452160 | VDHV-160V-XL-FM |
| 11460200 | VDHV-200V-BL-FM |
| 11462200 | VDHV-200V-L-FM |
| 11464200 | VDHV-200V-XL-FM |
Gripper Sets ref. P140. Operating sequence: 1. First, install B workpiece. 2. Second, install A workpiece. 3. Finally, clamping A&B workpiece together by handle. 4. A >= B = 6 mm. Clamp force scale indicates approximately 40-65 KN.
