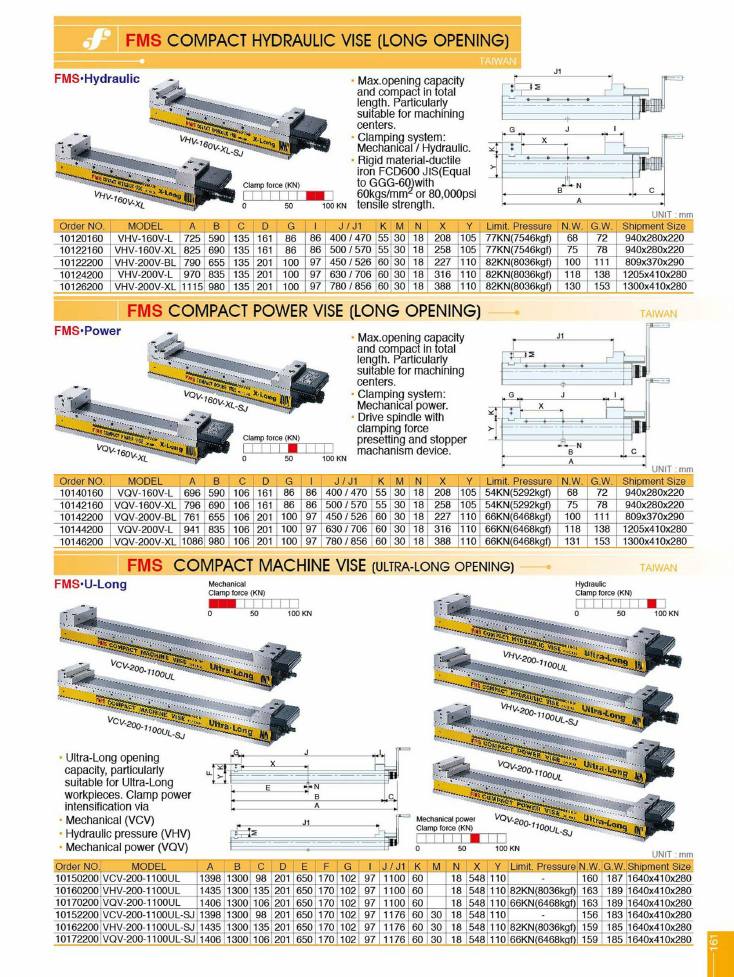

Frejoth accessory catalogue · Page 161
FMS Compact Hydraulic Vise (Long Opening)
Models on this page
VCV-200-1100ULVCV-200-1100UL-SJVHV-160V-LVHV-160V-XLVHV-200-1100ULVHV-200-1100UL-SJVHV-200V-BLVHV-200V-LVHV-200V-XLVQV-160V-LVQV-160V-XLVQV-200-1100ULVQV-200-1100UL-SJVQV-200V-BLVQV-200V-LVQV-200V-XL
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
FMS Compact Hydraulic Vise (Long Opening)
FMS·Hydraulic · Taiwan
- Max. opening capacity and compact in total length. Particularly suitable for machining centers.
- Clamping system: Mechanical / Hydraulic.
- Rigid material-ductile iron FCD600 JIS (Equal to GGG-60) with 60kgs/mm2 or 80,000psi tensile strength.
| order_no | model | a | b | c | d | g | i | j_j1 | k | m | n | x | y | limit_pressure | n_w | g_w | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10120160 | VHV-160V-L | 725 | 590 | 135 | 161 | 86 | 86 | 400 / 470 | 55 | 30 | 18 | 208 | 105 | 77KN(7546kgf) | 68 | 72 | 940x280x220 |
| 10122160 | VHV-160V-XL | 825 | 690 | 135 | 161 | 86 | 86 | 500 / 570 | 55 | 30 | 18 | 258 | 105 | 77KN(7546kgf) | 75 | 78 | 940x280x220 |
| 10122200 | VHV-200V-BL | 790 | 655 | 135 | 201 | 100 | 97 | 450 / 526 | 60 | 30 | 18 | 227 | 110 | 82KN(8036kgf) | 100 | 111 | 809x370x290 |
| 10124200 | VHV-200V-L | 970 | 835 | 135 | 201 | 100 | 97 | 630 / 706 | 60 | 30 | 18 | 316 | 110 | 82KN(8036kgf) | 118 | 138 | 1205x410x280 |
| 10126200 | VHV-200V-XL | 1115 | 980 | 135 | 201 | 100 | 97 | 780 / 856 | 60 | 30 | 18 | 388 | 110 | 82KN(8036kgf) | 130 | 153 | 1300x410x280 |
| Code | Model |
|---|---|
| 10120160 | VHV-160V-L |
| 10122160 | VHV-160V-XL |
| 10122200 | VHV-200V-BL |
| 10124200 | VHV-200V-L |
| 10126200 | VHV-200V-XL |
Clamp force scale on page indicates approximately 75-100 KN.
FMS Compact Power Vise (Long Opening)
FMS·Power · Taiwan
- Max. opening capacity and compact in total length. Particularly suitable for machining centers.
- Clamping system: Mechanical power.
- Drive spindle with clamping force presetting and stopper machanism device.
| order_no | model | a | b | c | d | g | i | j_j1 | k | m | n | x | y | limit_pressure | n_w | g_w | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10140160 | VQV-160V-L | 696 | 590 | 106 | 161 | 86 | 86 | 400 / 470 | 55 | 30 | 18 | 208 | 105 | 54KN(5292kgf) | 68 | 72 | 940x280x220 |
| 10142160 | VQV-160V-XL | 796 | 690 | 106 | 161 | 86 | 86 | 500 / 570 | 55 | 30 | 18 | 258 | 105 | 54KN(5292kgf) | 75 | 78 | 940x280x220 |
| 10142200 | VQV-200V-BL | 761 | 655 | 106 | 201 | 100 | 97 | 450 / 526 | 60 | 30 | 18 | 227 | 110 | 66KN(6468kgf) | 100 | 111 | 809x370x290 |
| 10144200 | VQV-200V-L | 941 | 835 | 106 | 201 | 100 | 97 | 630 / 706 | 60 | 30 | 18 | 316 | 110 | 66KN(6468kgf) | 118 | 138 | 1205x410x280 |
| 10146200 | VQV-200V-XL | 1086 | 980 | 106 | 201 | 100 | 97 | 780 / 856 | 60 | 30 | 18 | 388 | 110 | 66KN(6468kgf) | 131 | 153 | 1300x410x280 |
| Code | Model |
|---|---|
| 10140160 | VQV-160V-L |
| 10142160 | VQV-160V-XL |
| 10142200 | VQV-200V-BL |
| 10144200 | VQV-200V-L |
| 10146200 | VQV-200V-XL |
Clamp force scale on page indicates approximately 50 KN.
FMS Compact Machine Vise (Ultra-Long Opening)
FMS·U-Long · Taiwan
- Ultra-Long opening capacity, particularly suitable for Ultra-Long workpieces. Clamp power intensification via
- Mechanical (VCV)
- Hydraulic pressure (VHV)
- Mechanical power (VQV)
| order_no | model | a | b | c | d | e | f | g | i | j_j1 | k | m | n | x | y | limit_pressure | n_w | g_w | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10150200 | VCV-200-1100UL | 1398 | 1300 | 98 | 201 | 650 | 170 | 102 | 97 | 1100 | 60 | — | 18 | 548 | 110 | - | 160 | 187 | 1640x410x280 |
| 10160200 | VHV-200-1100UL | 1435 | 1300 | 135 | 201 | 650 | 170 | 102 | 97 | 1100 | 60 | — | 18 | 548 | 110 | 82KN(8036kgf) | 163 | 189 | 1640x410x280 |
| 10170200 | VQV-200-1100UL | 1406 | 1300 | 106 | 201 | 650 | 170 | 102 | 97 | 1100 | 60 | — | 18 | 548 | 110 | 66KN(6468kgf) | 163 | 189 | 1640x410x280 |
| 10152200 | VCV-200-1100UL-SJ | 1398 | 1300 | 98 | 201 | 650 | 170 | 102 | 97 | 1176 | 60 | 30 | 18 | 548 | 110 | - | 156 | 183 | 1640x410x280 |
| 10162200 | VHV-200-1100UL-SJ | 1435 | 1300 | 135 | 201 | 650 | 170 | 102 | 97 | 1176 | 60 | 30 | 18 | 548 | 110 | 82KN(8036kgf) | 159 | 185 | 1640x410x280 |
| 10172200 | VQV-200-1100UL-SJ | 1406 | 1300 | 106 | 201 | 650 | 170 | 102 | 97 | 1176 | 60 | 30 | 18 | 548 | 110 | 66KN(6468kgf) | 159 | 185 | 1640x410x280 |
| Code | Model |
|---|---|
| 10150200 | VCV-200-1100UL |
| 10160200 | VHV-200-1100UL |
| 10170200 | VQV-200-1100UL |
| 10152200 | VCV-200-1100UL-SJ |
| 10162200 | VHV-200-1100UL-SJ |
| 10172200 | VQV-200-1100UL-SJ |
Three clamp force scales are printed: Mechanical approx. 10-25 KN, Hydraulic approx. 75-100 KN, Mechanical power approx. 50 KN.
