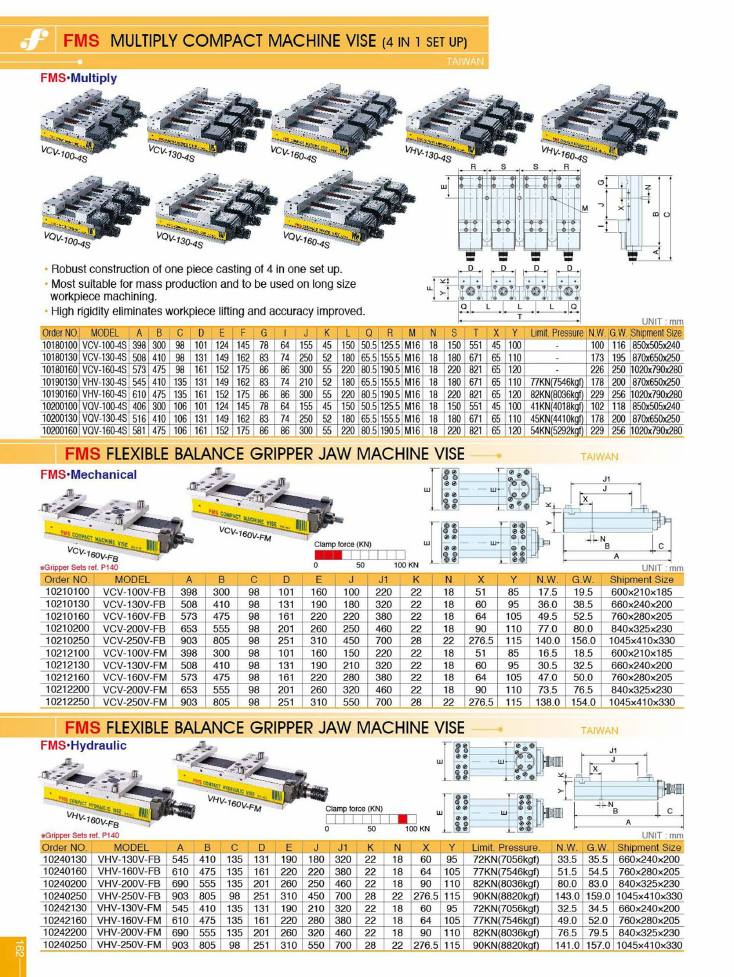

Frejoth accessory catalogue · Page 162
FMS machine vise
Models on this page
VCV-100-4SVCV-100V-FBVCV-100V-FMVCV-130-4SVCV-130V-FBVCV-130V-FMVCV-160-4SVCV-160V-FBVCV-160V-FMVCV-200V-FBVCV-200V-FMVCV-250V-FBVCV-250V-FMVHV-130-4SVHV-130V-FBVHV-130V-FMVHV-160-4SVHV-160V-FBVHV-160V-FMVHV-200V-FBVHV-200V-FMVHV-250V-FBVHV-250V-FMVQV-100-4SVQV-130-4SVQV-160-4S
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
FMS Multiply Compact Machine Vise (4 in 1 set up)
FMS·Multiply · Taiwan
- Robust construction of one piece casting of 4 in one set up.
- Most suitable for mass production and to be used on long size workpiece machining.
- High rigidity eliminates workpiece lifting and accuracy improved.
| order_no | model | A | B | C | D | E | F | G | I | J | K | L | Q | R | M | N | S | T | X | Y | limit_pressure | nw_kg | gw_kg | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10180100 | VCV-100-4S | 398 | 300 | 98 | 101 | 124 | 145 | 78 | 64 | 155 | 45 | 150 | 50.5 | 125.5 | M16 | 18 | 150 | 551 | 45 | 100 | — | 100 | 116 | 850x505x240 |
| 10180130 | VCV-130-4S | 508 | 410 | 98 | 131 | 149 | 162 | 83 | 74 | 250 | 52 | 180 | 65.5 | 155.5 | M16 | 18 | 180 | 671 | 65 | 110 | — | 173 | 195 | 870x650x250 |
| 10180160 | VCV-160-4S | 573 | 475 | 98 | 161 | 152 | 175 | 86 | 86 | 300 | 55 | 220 | 80.5 | 190.5 | M16 | 18 | 220 | 821 | 65 | 120 | — | 226 | 250 | 1020x790x260 |
| 10190130 | VHV-130-4S | 545 | 410 | 135 | 131 | 149 | 162 | 83 | 74 | 210 | 52 | 180 | 65.5 | 155.5 | M16 | 18 | 180 | 671 | 65 | 110 | 77KN(7546kgf) | 178 | 200 | 870x650x250 |
| 10190160 | VHV-160-4S | 610 | 475 | 135 | 161 | 152 | 175 | 86 | 86 | 300 | 55 | 220 | 80.5 | 190.5 | M16 | 18 | 220 | 821 | 65 | 120 | 82KN(8036kgf) | 229 | 256 | 1020x790x260 |
| 10200100 | VQV-100-4S | 406 | 300 | 106 | 101 | 124 | 145 | 78 | 64 | 155 | 45 | 150 | 50.5 | 125.5 | M16 | 18 | 150 | 551 | 45 | 100 | 41KN(4018kgf) | 102 | 118 | 850x505x240 |
| 10200130 | VQV-130-4S | 516 | 410 | 106 | 131 | 149 | 162 | 83 | 74 | 250 | 52 | 180 | 65.5 | 155.5 | M16 | 18 | 180 | 671 | 65 | 110 | 45KN(4410kgf) | 178 | 200 | 870x650x250 |
| 10200160 | VQV-160-4S | 581 | 475 | 106 | 161 | 152 | 175 | 86 | 86 | 300 | 55 | 220 | 80.5 | 190.5 | M16 | 18 | 220 | 821 | 65 | 120 | 54KN(5292kgf) | 229 | 256 | 1020x790x260 |
| Code | Model |
|---|---|
| 10180100 | VCV-100-4S |
| 10180130 | VCV-130-4S |
| 10180160 | VCV-160-4S |
| 10190130 | VHV-130-4S |
| 10190160 | VHV-160-4S |
| 10200100 | VQV-100-4S |
| 10200130 | VQV-130-4S |
| 10200160 | VQV-160-4S |
Models VCV-100/130/160-4S, VHV-130/160-4S, VQV-100/130/160-4S. Unit: mm.
FMS Flexible Balance Gripper Jaw Machine Vise (Mechanical)
FMS·Mechanical · Taiwan
| order_no | model | A | B | C | D | E | J | J1 | K | N | X | Y | nw_kg | gw_kg | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10210100 | VCV-100V-FB | 398 | 300 | 98 | 101 | 160 | 100 | 220 | 22 | 18 | 51 | 85 | 17.5 | 19.5 | 600x210x185 |
| 10210130 | VCV-130V-FB | 508 | 410 | 98 | 131 | 190 | 180 | 320 | 22 | 18 | 60 | 95 | 36 | 38.5 | 660x240x200 |
| 10210160 | VCV-160V-FB | 573 | 475 | 98 | 161 | 220 | 220 | 380 | 22 | 18 | 64 | 105 | 49.5 | 52.5 | 760x280x205 |
| 10210200 | VCV-200V-FB | 653 | 555 | 98 | 201 | 260 | 250 | 460 | 22 | 18 | 90 | 110 | 77 | 80 | 840x325x230 |
| 10210250 | VCV-250V-FB | 903 | 805 | 98 | 251 | 310 | 450 | 700 | 28 | 22 | 276.5 | 115 | 140 | 156 | 1045x410x330 |
| 10212100 | VCV-100V-FM | 398 | 300 | 98 | 101 | 160 | 150 | 220 | 22 | 18 | 51 | 85 | 16.5 | 18.5 | 600x210x185 |
| 10212130 | VCV-130V-FM | 508 | 410 | 98 | 131 | 190 | 210 | 320 | 22 | 18 | 60 | 95 | 30.5 | 32.5 | 660x240x200 |
| 10212160 | VCV-160V-FM | 573 | 475 | 98 | 161 | 220 | 280 | 380 | 22 | 18 | 64 | 105 | 47 | 50 | 760x280x205 |
| 10212200 | VCV-200V-FM | 653 | 555 | 98 | 201 | 260 | 320 | 460 | 22 | 18 | 90 | 110 | 73.5 | 76.5 | 840x325x230 |
| 10212250 | VCV-250V-FM | 903 | 805 | 98 | 251 | 310 | 550 | 700 | 28 | 22 | 276.5 | 115 | 138 | 154 | 1045x410x330 |
| Code | Model |
|---|---|
| 10210100 | VCV-100V-FB |
| 10210130 | VCV-130V-FB |
| 10210160 | VCV-160V-FB |
| 10210200 | VCV-200V-FB |
| 10210250 | VCV-250V-FB |
| 10212100 | VCV-100V-FM |
| 10212130 | VCV-130V-FM |
| 10212160 | VCV-160V-FM |
| 10212200 | VCV-200V-FM |
| 10212250 | VCV-250V-FM |
Models VCV-100/130/160/200/250V-FB and -FM. Gripper sets ref. P140. Clamp force scale printed 0-100 KN. Unit: mm.
FMS Flexible Balance Gripper Jaw Machine Vise (Hydraulic)
FMS·Hydraulic · Taiwan
| order_no | model | A | B | C | D | E | J | J1 | K | N | X | Y | limit_pressure | nw_kg | gw_kg | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10240130 | VHV-130V-FB | 545 | 410 | 135 | 131 | 190 | 180 | 320 | 22 | 18 | 60 | 95 | 72KN(7056kgf) | 33.5 | 35.5 | 660x240x200 |
| 10240160 | VHV-160V-FB | 610 | 475 | 135 | 161 | 220 | 220 | 380 | 22 | 18 | 64 | 105 | 77KN(7546kgf) | 51.5 | 54.5 | 760x280x205 |
| 10240200 | VHV-200V-FB | 690 | 555 | 135 | 201 | 260 | 250 | 460 | 22 | 18 | 90 | 110 | 82KN(8036kgf) | 80 | 83 | 840x325x230 |
| 10240250 | VHV-250V-FB | 903 | 805 | 98 | 251 | 310 | 450 | 700 | 28 | 22 | 276.5 | 115 | 90KN(8820kgf) | 143 | 159 | 1045x410x330 |
| 10242130 | VHV-130V-FM | 545 | 410 | 135 | 131 | 190 | 210 | 320 | 22 | 18 | 60 | 95 | 72KN(7056kgf) | 32.5 | 34.5 | 660x240x200 |
| 10242160 | VHV-160V-FM | 610 | 475 | 135 | 161 | 220 | 280 | 380 | 22 | 18 | 64 | 105 | 77KN(7546kgf) | 49 | 52 | 760x280x205 |
| 10242200 | VHV-200V-FM | 690 | 555 | 135 | 201 | 260 | 320 | 460 | 22 | 18 | 90 | 110 | 82KN(8036kgf) | 76.5 | 79.5 | 840x325x230 |
| 10240250 | VHV-250V-FM | 903 | 805 | 98 | 251 | 310 | 550 | 700 | 28 | 22 | 276.5 | 115 | 90KN(8820kgf) | 141 | 157 | 1045x410x330 |
| Code | Model |
|---|---|
| 10240130 | VHV-130V-FB |
| 10240160 | VHV-160V-FB |
| 10240200 | VHV-200V-FB |
| 10240250 | VHV-250V-FB |
| 10242130 | VHV-130V-FM |
| 10242160 | VHV-160V-FM |
| 10242200 | VHV-200V-FM |
| 10240250 | VHV-250V-FM |
Models VHV-130/160/200/250V-FB and -FM. Gripper sets ref. P140. Clamp force scale printed 0-100 KN. Unit: mm.
