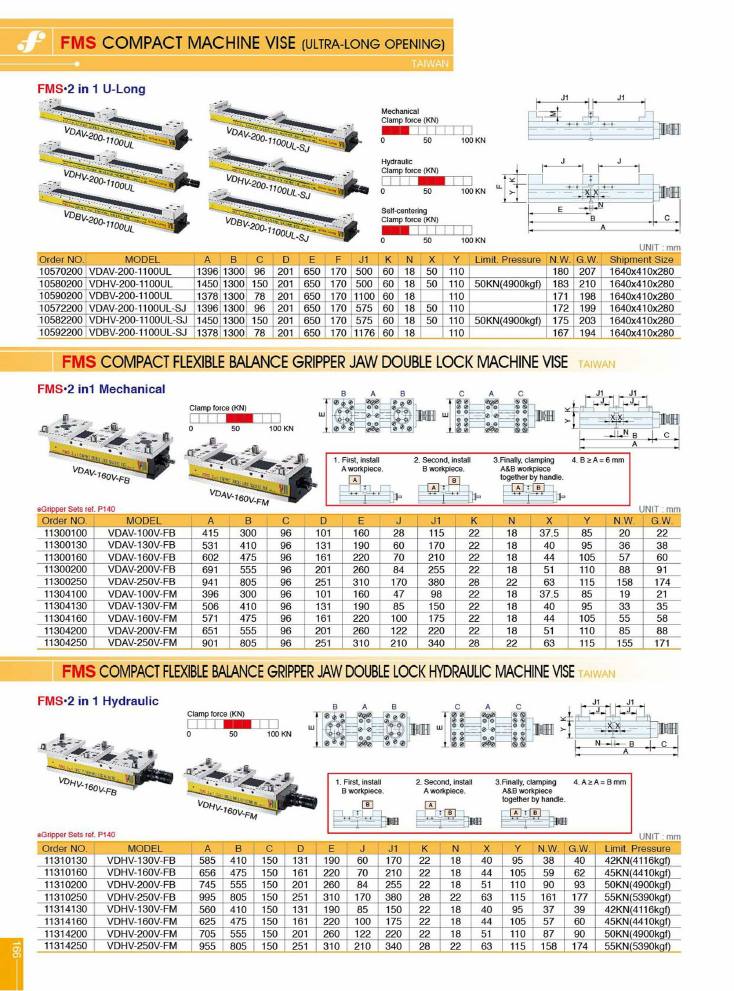

FMS machine vise

Models on this page

VDAV-100V-FBVDAV-100V-FMVDAV-130V-FBVDAV-130V-FMVDAV-160V-FBVDAV-160V-FMVDAV-200-1100ULVDAV-200-1100UL-SJVDAV-200V-FBVDAV-200V-FMVDAV-250V-FBVDAV-250V-FMVDBV-200-1100ULVDBV-200-1100UL-SJVDHV-130V-FBVDHV-130V-FMVDHV-160V-FBVDHV-160V-FMVDHV-200-1100ULVDHV-200-1100UL-SJVDHV-200V-FBVDHV-200V-FMVDHV-250V-FBVDHV-250V-FM

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

FMS Compact Machine Vise (Ultra-Long Opening)

FMS·2 in 1 U-Long · Taiwan

dimensions_and_specifications (mm)
order_no	model	A	B	C	D	E	F	J1	K	N	X	Y	limit_pressure	nw_kg	gw_kg	shipment_size
10570200	VDAV-200-1100UL	1396	1300	96	201	650	170	500	60	18	50	110	—	180	207	1640x410x280
10580200	VDHV-200-1100UL	1450	1300	150	201	650	170	500	60	18	50	110	50KN(4900kgf)	183	210	1640x410x280
10590200	VDBV-200-1100UL	1378	1300	78	201	650	170	1100	60	18	—	110	—	171	198	1640x410x280
10572200	VDAV-200-1100UL-SJ	1396	1300	96	201	650	170	575	60	18	50	110	—	172	199	1640x410x280
10582200	VDHV-200-1100UL-SJ	1450	1300	150	201	650	170	575	60	18	50	110	50KN(4900kgf)	175	203	1640x410x280
10592200	VDBV-200-1100UL-SJ	1378	1300	78	201	650	170	1176	60	18	—	110	—	167	194	1640x410x280

Order references
Code	Model
10570200	VDAV-200-1100UL
10580200	VDHV-200-1100UL
10590200	VDBV-200-1100UL
10572200	VDAV-200-1100UL-SJ
10582200	VDHV-200-1100UL-SJ
10592200	VDBV-200-1100UL-SJ

Models VDAV-200-1100UL (mechanical), VDHV-200-1100UL (hydraulic), VDBV-200-1100UL (self-centering), each also in -SJ variant. Clamp force bar graphs printed on a 0-100 KN scale for mechanical, hydraulic and self-centering types. Unit: mm.

FMS Compact Flexible Balance Gripper Jaw Double Lock Machine Vise (Mechanical)

FMS·2 in 1 Mechanical · Taiwan

dimensions (mm)
order_no	model	A	B	C	D	E	J	J1	K	N	X	Y	nw_kg	gw_kg
11300100	VDAV-100V-FB	415	300	96	101	160	28	115	22	18	37.5	85	20	22
11300130	VDAV-130V-FB	531	410	96	131	190	60	170	22	18	40	95	36	38
11300160	VDAV-160V-FB	602	475	96	161	220	70	210	22	18	44	105	57	60
11300200	VDAV-200V-FB	691	555	96	201	260	84	255	22	18	51	110	88	91
11300250	VDAV-250V-FB	941	805	96	251	310	170	380	28	22	63	115	158	174
11304100	VDAV-100V-FM	396	300	96	101	160	47	98	22	18	37.5	85	19	21
11304130	VDAV-130V-FM	506	410	96	131	190	85	150	22	18	40	95	33	35
11304160	VDAV-160V-FM	571	475	96	161	220	100	175	22	18	44	105	55	58
11304200	VDAV-200V-FM	651	555	96	201	260	122	220	22	18	51	110	85	88
11304250	VDAV-250V-FM	901	805	96	251	310	210	340	28	22	63	115	155	171

Order references
Code	Model
11304130	VDAV-130V-FM
11300100	VDAV-100V-FB
11300130	VDAV-130V-FB
11300160	VDAV-160V-FB
11300200	VDAV-200V-FB
11300250	VDAV-250V-FB
11304100	VDAV-100V-FM
11304160	VDAV-160V-FM
11304200	VDAV-200V-FM
11304250	VDAV-250V-FM

Models VDAV-100/130/160/200/250V-FB and -FM. Gripper sets ref. P140. Operating sequence printed on page: 1. First, install A workpiece. 2. Second, install B workpiece. 3. Finally, clamping A&B workpiece together by handle. 4. B >= A = 6 mm. Clamp force bar graph on a 0-100 KN scale. Unit: mm.

FMS Compact Flexible Balance Gripper Jaw Double Lock Hydraulic Machine Vise

FMS·2 in 1 Hydraulic · Taiwan

dimensions_and_specifications (mm)
order_no	model	A	B	C	D	E	J	J1	K	N	X	Y	nw_kg	gw_kg	limit_pressure
11310130	VDHV-130V-FB	585	410	150	131	190	60	170	22	18	40	95	38	40	42KN(4116kgf)
11310160	VDHV-160V-FB	656	475	150	161	220	70	210	22	18	44	105	59	62	45KN(4410kgf)
11310200	VDHV-200V-FB	745	555	150	201	260	84	255	22	18	51	110	90	93	50KN(4900kgf)
11310250	VDHV-250V-FB	995	805	150	251	310	170	380	28	22	63	115	161	177	55KN(5390kgf)
11314130	VDHV-130V-FM	560	410	150	131	190	85	150	22	18	40	95	37	39	42KN(4116kgf)
11314160	VDHV-160V-FM	625	475	150	161	220	100	175	22	18	44	105	57	60	45KN(4410kgf)
11314200	VDHV-200V-FM	705	555	150	201	260	122	220	22	18	51	110	87	90	50KN(4900kgf)
11314250	VDHV-250V-FM	955	805	150	251	310	210	340	28	22	63	115	158	174	55KN(5390kgf)

Order references
Code	Model
11310130	VDHV-130V-FB
11310160	VDHV-160V-FB
11310200	VDHV-200V-FB
11310250	VDHV-250V-FB
11314130	VDHV-130V-FM
11314160	VDHV-160V-FM
11314200	VDHV-200V-FM
11314250	VDHV-250V-FM

Models VDHV-130/160/200/250V-FB and -FM. Gripper sets ref. P140. Operating sequence printed on page: 1. First, install B workpiece. 2. Second, install A workpiece. 3. Finally, clamping A&B workpiece together by handle. 4. A >= A = 8 mm (as printed). Clamp force bar graph on a 0-100 KN scale. Unit: mm.
