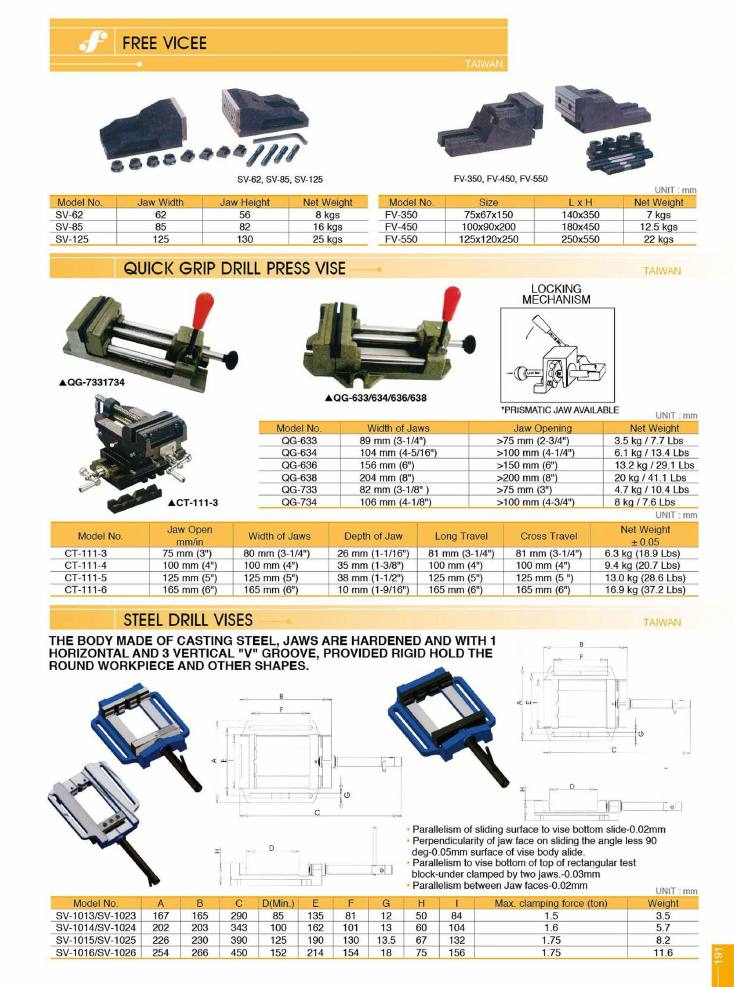

Frejoth accessory catalogue · Page 191
Free Vicee
Models on this page
CT-111-3CT-111-4CT-111-5CT-111-6FV-350FV-450FV-550QG-633QG-634QG-636QG-638QG-733QG-734SV-1013/SV-1023SV-1014/SV-1024SV-1015/SV-1025SV-1016/SV-1026SV-125SV-62SV-85
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Free Vicee
Taiwan
| model_no | jaw_width | jaw_height | net_weight |
|---|---|---|---|
| SV-62 | 62 | 56 | 8 kgs |
| SV-85 | 85 | 82 | 16 kgs |
| SV-125 | 125 | 130 | 25 kgs |
| model_no | size | l_x_h | net_weight |
|---|---|---|---|
| FV-350 | 75x67x150 | 140x350 | 7 kgs |
| FV-450 | 100x90x200 | 180x450 | 12.5 kgs |
| FV-550 | 125x120x250 | 250x550 | 22 kgs |
| Code | Model |
|---|---|
| on request | SV-62 |
| on request | SV-85 |
| on request | SV-125 |
| on request | FV-350 |
| on request | FV-450 |
| on request | FV-550 |
Two ranges shown: SV-62 / SV-85 / SV-125 and FV-350 / FV-450 / FV-550.
Quick Grip Drill Press Vise
QG · Taiwan
| model_no | width_of_jaws | jaw_opening | net_weight |
|---|---|---|---|
| QG-633 | 89 mm (3-1/4") | >75 mm (2-3/4") | 3.5 kg / 7.7 Lbs |
| QG-634 | 104 mm (4-5/16") | >100 mm (4-1/4") | 6.1 kg / 13.4 Lbs |
| QG-636 | 156 mm (6") | >150 mm (6") | 13.2 kg / 29.1 Lbs |
| QG-638 | 204 mm (8") | >200 mm (8") | 20 kg / 41.1 Lbs |
| QG-733 | 82 mm (3-1/8") | >75 mm (3") | 4.7 kg / 10.4 Lbs |
| QG-734 | 106 mm (4-1/8") | >100 mm (4-3/4") | 8 kg / 7.6 Lbs |
| Code | Model |
|---|---|
| on request | QG-734 |
| on request | QG-733 |
| on request | QG-633 |
| on request | QG-634 |
| on request | QG-636 |
| on request | QG-638 |
Illustrated as QG-733/734 and QG-633/634/636/638. Locking mechanism detail shown. Prismatic jaw available.
Quick Grip Drill Press Vise - Cross Slide (CT-111)
CT-111 · Taiwan
| model_no | jaw_open_mm_in | width_of_jaws | depth_of_jaw | long_travel | cross_travel | net_weight |
|---|---|---|---|---|---|---|
| CT-111-3 | 75 mm (3") | 80 mm (3-1/4") | 26 mm (1-1/16") | 81 mm (3-1/4") | 81 mm (3-1/4") | 6.3 kg (18.9 Lbs) |
| CT-111-4 | 100 mm (4") | 100 mm (4") | 35 mm (1-3/8") | 100 mm (4") | 100 mm (4") | 9.4 kg (20.7 Lbs) |
| CT-111-5 | 125 mm (5") | 125 mm (5") | 38 mm (1-1/2") | 125 mm (5") | 125 mm (5") | 13.0 kg (28.6 Lbs) |
| CT-111-6 | 165 mm (6") | 165 mm (6") | 10 mm (1-9/16") | 165 mm (6") | 165 mm (6") | 16.9 kg (37.2 Lbs) |
| Code | Model |
|---|---|
| on request | CT-111-3 |
| on request | CT-111-4 |
| on request | CT-111-5 |
| on request | CT-111-6 |
Net weight tolerance +/- 0.05.
Steel Drill Vises
SV-10xx · Taiwan
- Parallelism of sliding surface to vise bottom slide - 0.02mm
- Perpendicularity of jaw face on sliding the angle less 90 deg - 0.05mm surface of vise body slide
- Parallelism to vise bottom of top of rectangular test block under clamped by two jaws - 0.03mm
- Parallelism between jaw faces - 0.02mm
| model_no | a | b | c | d_min | e | f | g | h | i | max_clamping_force_ton | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SV-1013/SV-1023 | 167 | 165 | 290 | 85 | 135 | 81 | 12 | 50 | 84 | 1.5 | 3.5 |
| SV-1014/SV-1024 | 202 | 203 | 343 | 100 | 162 | 101 | 13 | 60 | 104 | 1.6 | 5.7 |
| SV-1015/SV-1025 | 226 | 230 | 390 | 125 | 190 | 130 | 13.5 | 67 | 132 | 1.75 | 8.2 |
| SV-1016/SV-1026 | 254 | 266 | 450 | 152 | 214 | 154 | 18 | 75 | 156 | 1.75 | 11.6 |
| Code | Model |
|---|---|
| on request | SV-1013/SV-1023 |
| on request | SV-1014/SV-1024 |
| on request | SV-1015/SV-1025 |
| on request | SV-1016/SV-1026 |
The body made of casting steel, jaws are hardened and with 1 horizontal and 3 vertical "V" groove, provided rigid hold the round workpiece and other shapes.
