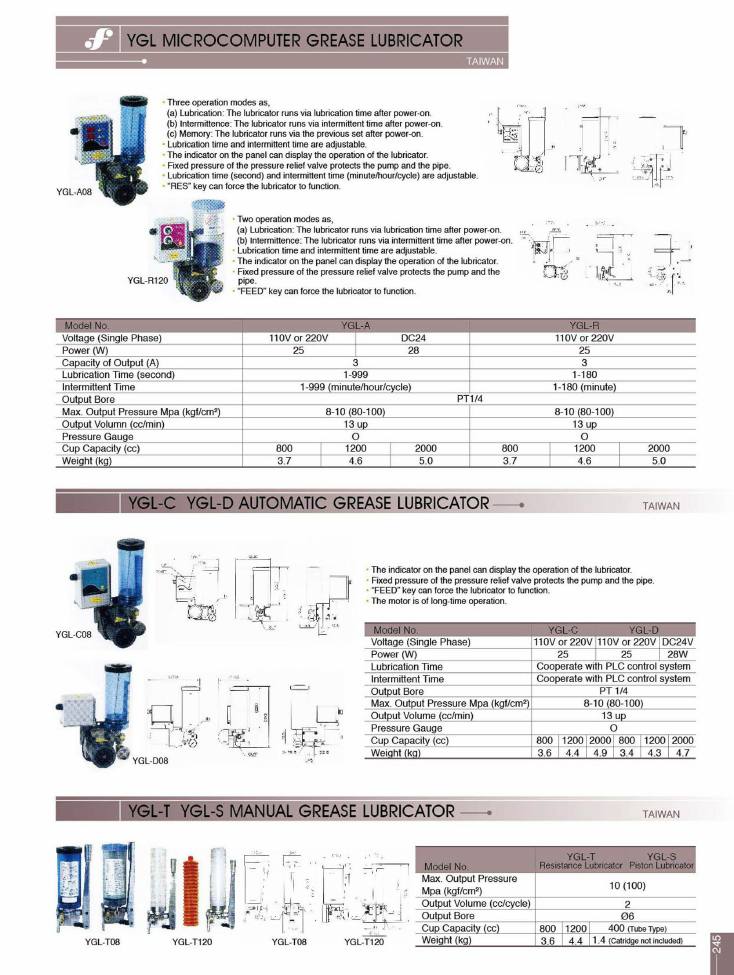

YGL Microcomputer Grease Lubricator
YGL-A / YGL-R · Taiwan
- YGL-A: Three operation modes as, (a) Lubrication: The lubricator runs via lubrication time after power-on. (b) Intermittence: The lubricator runs via intermittent time after power-on. (c) Memory: The lubricator runs via the previous set after power-on.
- YGL-A: Lubrication time and intermittent time are adjustable.
- YGL-A: The indicator on the panel can display the operation of the lubricator.
- YGL-A: Fixed pressure of the pressure relief valve protects the pump and the pipe.
- YGL-A: Lubrication time (second) and intermittent time (minute/hour/cycle) are adjustable.
- YGL-A: "RES" key can force the lubricator to function.
- YGL-R: Two operation modes as, (a) Lubrication: The lubricator runs via lubrication time after power-on. (b) Intermittence: The lubricator runs via intermittent time after power-on.
- YGL-R: Lubrication time and intermittent time are adjustable.
- YGL-R: The indicator on the panel can display the operation of the lubricator.
- YGL-R: Fixed pressure of the pressure relief valve protects the pump and the pipe.
- YGL-R: "FEED" key can force the lubricator to function.
| model_no | voltage_single_phase | power_w | capacity_of_output_a | lubrication_time_second | intermittent_time | output_bore | max_output_pressure_mpa_kgf_cm2 | output_volumn_cc_min | pressure_gauge |
|---|---|---|---|---|---|---|---|---|---|
| YGL-A | 110V or 220V | 25 | 3 | 1-999 | 1-999 (minute/hour/cycle) | PT1/4 | 8-10 (80-100) | 13 up | O |
| YGL-A | DC24 | 28 | 3 | 1-999 | 1-999 (minute/hour/cycle) | PT1/4 | 8-10 (80-100) | 13 up | O |
| YGL-R | 110V or 220V | 25 | 3 | 1-180 | 1-180 (minute) | PT1/4 | 8-10 (80-100) | 13 up | O |
| model_no | cup_capacity_cc | weight_kg |
|---|---|---|
| YGL-A | 800 | 3.7 |
| YGL-A | 1200 | 4.6 |
| YGL-A | 2000 | 5 |
| YGL-R | 800 | 3.7 |
| YGL-R | 1200 | 4.6 |
| YGL-R | 2000 | 5 |
| Code | Model |
|---|---|
| on request | YGL-A |
| on request | YGL-A |
| on request | YGL-A |
| on request | YGL-R |
| on request | YGL-R |
| on request | YGL-R |
| on request | YGL-A08 |
| on request | YGL-R120 |
Illustrated as YGL-A08 and YGL-R120. YGL-A is offered in a 110V/220V version (25W) and a DC24 version (28W).
YGL-C YGL-D Automatic Grease Lubricator
YGL-C / YGL-D · Taiwan
- The indicator on the panel can display the operation of the lubricator.
- Fixed pressure of the pressure relief valve protects the pump and the pipe.
- "FEED" key can force the lubricator to function.
- The motor is of long-time operation.
| model_no | voltage_single_phase | power_w | lubrication_time | intermittent_time | output_bore | max_output_pressure_mpa_kgf_cm2 | output_volume_cc_min | pressure_gauge |
|---|---|---|---|---|---|---|---|---|
| YGL-C | 110V or 220V | 25 | Cooperate with PLC control system | Cooperate with PLC control system | PT 1/4 | 8-10 (80-100) | 13 up | O |
| YGL-D | 110V or 220V | 25 | Cooperate with PLC control system | Cooperate with PLC control system | PT 1/4 | 8-10 (80-100) | 13 up | O |
| YGL-D | DC24V | 28 | Cooperate with PLC control system | Cooperate with PLC control system | PT 1/4 | 8-10 (80-100) | 13 up | O |
| model_no | cup_capacity_cc | weight_kg |
|---|---|---|
| YGL-C | 800 | 3.6 |
| YGL-C | 1200 | 4.4 |
| YGL-C | 2000 | 4.9 |
| YGL-D | 800 | 3.4 |
| YGL-D | 1200 | 4.3 |
| YGL-D | 2000 | 4.7 |
| Code | Model |
|---|---|
| on request | YGL-C |
| on request | YGL-C |
| on request | YGL-C |
| on request | YGL-D |
| on request | YGL-D |
| on request | YGL-D |
| on request | YGL-C08 |
| on request | YGL-D08 |
Illustrated as YGL-C08 and YGL-D08. YGL-D is offered in a 110V/220V version (25W) and a DC24V version (28W).
YGL-T YGL-S Manual Grease Lubricator
YGL-T / YGL-S · Taiwan
| model_no | type | max_output_pressure_mpa_kgf_cm2 | output_volume_cc_cycle | output_bore | cup_capacity_cc | weight_kg |
|---|---|---|---|---|---|---|
| YGL-T | Resistance Lubricator | 10 (100) | 2 | ø6 | 800 | 3.6 |
| YGL-T | Resistance Lubricator | 10 (100) | 2 | ø6 | 1200 | 4.4 |
| YGL-S | Piston Lubricator | 10 (100) | 2 | ø6 | 400 (Tube Type) | 1.4 (Catridge not included) |
| Code | Model |
|---|---|
| on request | YGL-T |
| on request | YGL-T |
| on request | YGL-S |
| on request | YGL-T08 |
| on request | YGL-T120 |
YGL-T = Resistance Lubricator; YGL-S = Piston Lubricator. Illustrated variants YGL-T08 and YGL-T120.
