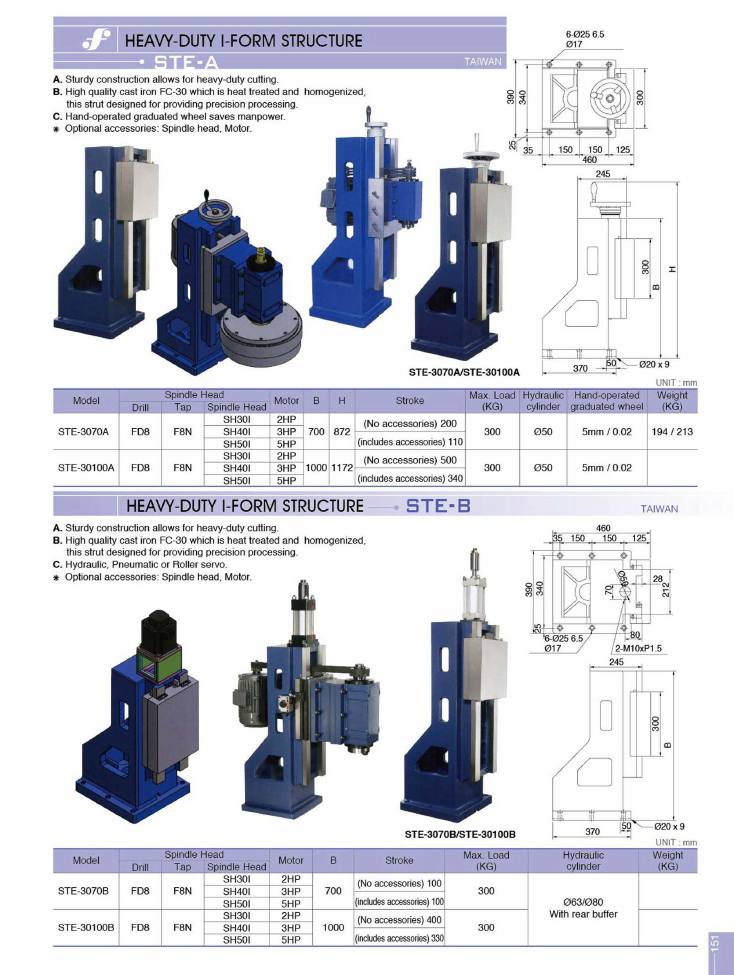

Frejoth accessory catalogue · Page 151
Heavy-Duty I-Form Structure
Models on this page
STE-30100ASTE-30100BSTE-3070ASTE-3070B
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Heavy-Duty I-Form Structure
STE-A · Taiwan
- Sturdy construction allows for heavy-duty cutting.
- High quality cast iron FC-30 which is heat treated and homogenized, this strut designed for providing precision processing.
- Hand-operated graduated wheel saves manpower.
| model | drill | tap | spindle_head | motor | b | h | stroke_no_accessories | stroke_includes_accessories | max_load_kg | hydraulic_cylinder | hand_operated_graduated_wheel | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| STE-3070A | FD8 | F8N | SH30I | 2HP | 700 | 872 | 200 | 110 | 300 | Ø50 | 5mm / 0.02 | 194 / 213 |
| STE-3070A | FD8 | F8N | SH40I | 3HP | 700 | 872 | 200 | 110 | 300 | Ø50 | 5mm / 0.02 | 194 / 213 |
| STE-3070A | FD8 | F8N | SH50I | 5HP | 700 | 872 | 200 | 110 | 300 | Ø50 | 5mm / 0.02 | 194 / 213 |
| STE-30100A | FD8 | F8N | SH30I | 2HP | 1000 | 1172 | 500 | 340 | 300 | Ø50 | 5mm / 0.02 | — |
| STE-30100A | FD8 | F8N | SH40I | 3HP | 1000 | 1172 | 500 | 340 | 300 | Ø50 | 5mm / 0.02 | — |
| STE-30100A | FD8 | F8N | SH50I | 5HP | 1000 | 1172 | 500 | 340 | 300 | Ø50 | 5mm / 0.02 | — |
| Code | Model |
|---|---|
| on request | STE-3070A |
| on request | STE-30100A |
| on request | STE-3070B |
| on request | STE-30100B |
Optional accessories: Spindle head, Motor. Illustrated variants: STE-3070A/STE-30100A. Base drawing dimensions printed on the page: 6-Ø25 6.5 / Ø17, 390, 340, 300, 25, 35, 150, 150, 125, 460, 245, 370, 50, Ø20 x 9.
Heavy-Duty I-Form Structure
STE-B · Taiwan
- Sturdy construction allows for heavy-duty cutting.
- High quality cast iron FC-30 which is heat treated and homogenized, this strut designed for providing precision processing.
- Hydraulic, Pneumatic or Roller servo.
| model | drill | tap | spindle_head | motor | b | stroke_no_accessories | stroke_includes_accessories | max_load_kg | hydraulic_cylinder | weight_kg |
|---|---|---|---|---|---|---|---|---|---|---|
| STE-3070B | FD8 | F8N | SH30I | 2HP | 700 | 100 | 100 | 300 | Ø63/Ø80 With rear buffer | — |
| STE-3070B | FD8 | F8N | SH40I | 3HP | 700 | 100 | 100 | 300 | Ø63/Ø80 With rear buffer | — |
| STE-3070B | FD8 | F8N | SH50I | 5HP | 700 | 100 | 100 | 300 | Ø63/Ø80 With rear buffer | — |
| STE-30100B | FD8 | F8N | SH30I | 2HP | 1000 | 400 | 330 | 300 | Ø63/Ø80 With rear buffer | — |
| STE-30100B | FD8 | F8N | SH40I | 3HP | 1000 | 400 | 330 | 300 | Ø63/Ø80 With rear buffer | — |
| STE-30100B | FD8 | F8N | SH50I | 5HP | 1000 | 400 | 330 | 300 | Ø63/Ø80 With rear buffer | — |
Optional accessories: Spindle head, Motor. Illustrated variants: STE-3070B/STE-30100B. Base drawing dimensions printed on the page: 460, 35, 150, 150, 125, 390, 340, 25, 6-Ø25 6.5 / Ø17, 2-M10xP1.5, 70, Ø50, 28, 212, 80, 245, 300, 370, 50, Ø20 x 9.
