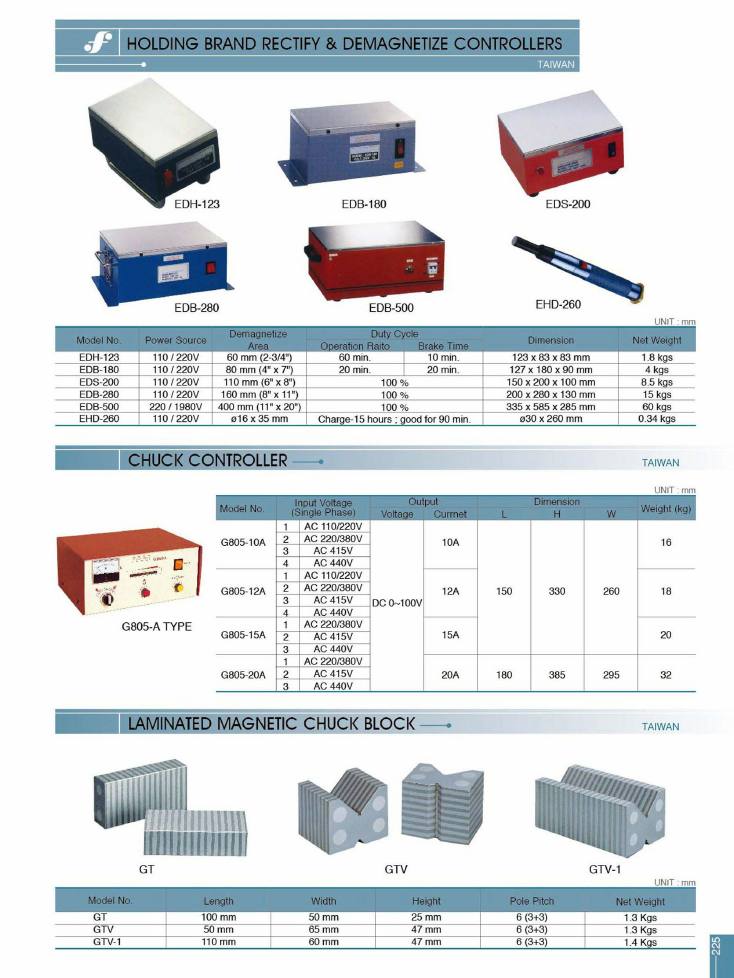

Frejoth accessory catalogue · Page 228
HOLDING BRAND RECTIFY & DEMAGNETIZE CONTROLLERS
Models on this page
EDB-180EDB-280EDB-500EDH-123EDS-200EHD-260G805-10AG805-12AG805-15AG805-20AGTGTVGTV-1
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Holding Brand Rectify & Demagnetize Controllers
ED / EHD · Taiwan
| model_no | power_source | demagnetize_area | duty_cycle_operation_raito | duty_cycle_brake_time | dimension | net_weight |
|---|---|---|---|---|---|---|
| EDH-123 | 110 / 220V | 60 mm (2-3/4") | 60 min. | 10 min. | 123 x 83 x 83 mm | 1.8 kgs |
| EDB-180 | 110 / 220V | 80 mm (4" x 7") | 20 min. | 20 min. | 127 x 180 x 90 mm | 4 kgs |
| EDS-200 | 110 / 220V | 110 mm (6" x 8") | 100 % | 100 % | 150 x 200 x 100 mm | 8.5 kgs |
| EDB-280 | 110 / 220V | 160 mm (8" x 11") | 100 % | 100 % | 200 x 280 x 130 mm | 15 kgs |
| EDB-500 | 220 / 1980V | 400 mm (11" x 20") | 100 % | 100 % | 335 x 585 x 285 mm | 60 kgs |
| EHD-260 | 110 / 220V | ø16 x 35 mm | Charge-15 hours ; good for 90 min. | Charge-15 hours ; good for 90 min. | ø30 x 260 mm | 0.34 kgs |
| Code | Model |
|---|---|
| on request | EDH-123 |
| on request | EDB-180 |
| on request | EDS-200 |
| on request | EDB-280 |
| on request | EDB-500 |
| on request | EHD-260 |
Six units photographed and labelled: EDH-123, EDB-180, EDS-200, EDB-280, EDB-500, EHD-260.
Chuck Controller
G805 · Taiwan
| model_no | input_voltage_no | input_voltage_single_phase | output_voltage | output_currnet | dimension_l | dimension_h | dimension_w | weight_kg |
|---|---|---|---|---|---|---|---|---|
| G805-10A | 1 | AC 110/220V | DC 0~100V | 10A | 150 | 330 | 260 | 16 |
| G805-10A | 2 | AC 220/380V | DC 0~100V | 10A | 150 | 330 | 260 | 16 |
| G805-10A | 3 | AC 415V | DC 0~100V | 10A | 150 | 330 | 260 | 16 |
| G805-10A | 4 | AC 440V | DC 0~100V | 10A | 150 | 330 | 260 | 16 |
| G805-12A | 1 | AC 110/220V | DC 0~100V | 12A | 150 | 330 | 260 | 18 |
| G805-12A | 2 | AC 220/380V | DC 0~100V | 12A | 150 | 330 | 260 | 18 |
| G805-12A | 3 | AC 415V | DC 0~100V | 12A | 150 | 330 | 260 | 18 |
| G805-12A | 4 | AC 440V | DC 0~100V | 12A | 150 | 330 | 260 | 18 |
| G805-15A | 1 | AC 220/380V | DC 0~100V | 15A | 150 | 330 | 260 | 20 |
| G805-15A | 2 | AC 415V | DC 0~100V | 15A | 150 | 330 | 260 | 20 |
| G805-15A | 3 | AC 440V | DC 0~100V | 15A | 150 | 330 | 260 | 20 |
| G805-20A | 1 | AC 220/380V | DC 0~100V | 20A | 180 | 385 | 295 | 32 |
| G805-20A | 2 | AC 415V | DC 0~100V | 20A | 180 | 385 | 295 | 32 |
| G805-20A | 3 | AC 440V | DC 0~100V | 20A | 180 | 385 | 295 | 32 |
| Code | Model |
|---|---|
| on request | G805-10A |
| on request | G805-12A |
| on request | G805-15A |
| on request | G805-20A |
Photographed unit is captioned 'G805-A TYPE'. Each model offers several input-voltage options, numbered 1-4 in the printed table.
Laminated Magnetic Chuck Block
GT · Taiwan
| model_no | length | width | height | pole_pitch | net_weight |
|---|---|---|---|---|---|
| GT | 100 mm | 50 mm | 25 mm | 6 (3+3) | 1.3 Kgs |
| GTV | 50 mm | 65 mm | 47 mm | 6 (3+3) | 1.3 Kgs |
| GTV-1 | 110 mm | 60 mm | 47 mm | 6 (3+3) | 1.4 Kgs |
| Code | Model |
|---|---|
| on request | GT |
| on request | GTV |
| on request | GTV-1 |
Three block styles photographed: GT (plain block), GTV (V-block) and GTV-1 (V-block with step).
