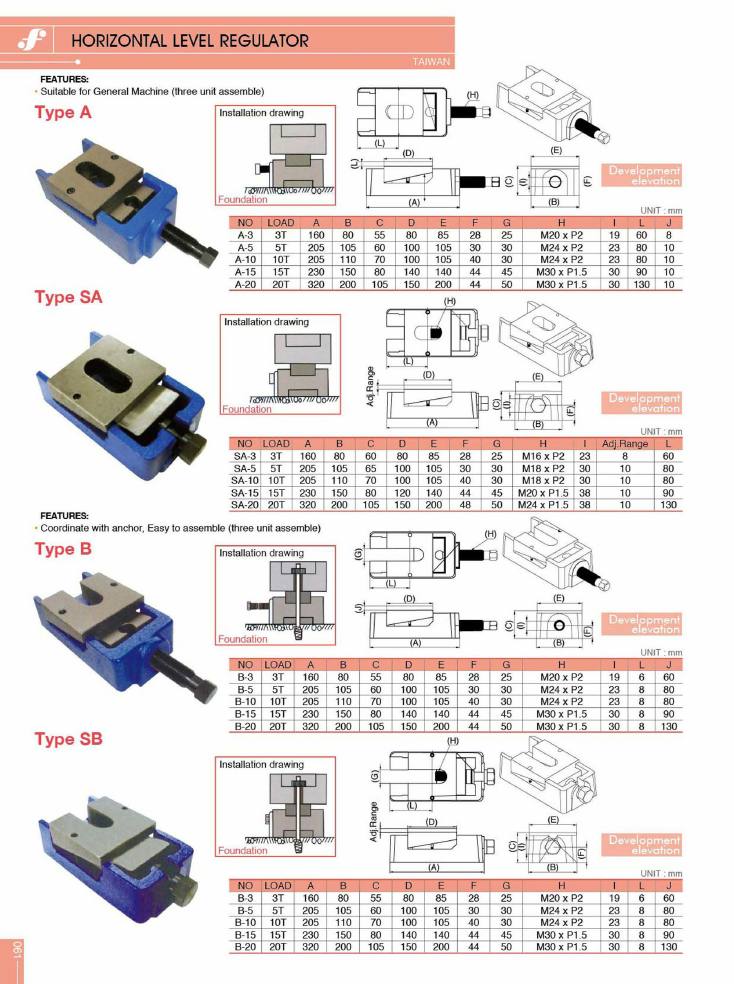

Horizontal level regulator

Models on this page

A-10A-15A-20A-3A-5B-10B-15B-20B-3B-5SA-10SA-15SA-20SA-3SA-5

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Horizontal Level Regulator — Type A

A · Taiwan

Suitable for General Machine (three unit assemble)

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	l	j
A-3	3T	160	80	55	80	85	28	25	M20 x P2	19	60	8
A-5	5T	205	105	60	100	105	30	30	M24 x P2	23	80	10
A-10	10T	205	110	70	100	105	40	30	M24 x P2	23	80	10
A-15	15T	230	150	80	140	140	44	45	M30 x P1.5	30	90	10
A-20	20T	320	200	105	150	200	44	50	M30 x P1.5	30	130	10

Order references
Code	Model
on request	A-3
on request	A-5
on request	A-10
on request	A-15
on request	A-20

Wedge-type machine levelling element with adjusting screw (H). Installation drawing shows the regulator set directly on the foundation under the machine base. Dimensions A, B, C, D, E, F, G, I, L, J per the development elevation drawings.

Horizontal Level Regulator — Type SA

SA · Taiwan

Suitable for General Machine (three unit assemble)

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	adj_range	l
SA-3	3T	160	80	60	80	85	28	25	M16 x P2	23	8	60
SA-5	5T	205	105	65	100	105	30	30	M18 x P2	30	10	80
SA-10	10T	205	110	70	100	105	40	30	M18 x P2	30	10	80
SA-15	15T	230	150	80	120	140	44	45	M20 x P1.5	38	10	90
SA-20	20T	320	200	105	150	200	48	50	M24 x P1.5	38	10	130

Order references
Code	Model
on request	SA-3
on request	SA-5
on request	SA-10
on request	SA-15
on request	SA-20

As Type A but with a stated adjustment range column in place of Type A's J dimension. Installation drawing shows the regulator on the foundation under the machine base.

Horizontal Level Regulator — Type B

B · Taiwan

Coordinate with anchor, Easy to assemble (three unit assemble)

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	l	j
B-3	3T	160	80	55	80	85	28	25	M20 x P2	19	6	60
B-5	5T	205	105	60	100	105	30	30	M24 x P2	23	8	80
B-10	10T	205	110	70	100	105	40	30	M24 x P2	23	8	80
B-15	15T	230	150	80	140	140	44	45	M30 x P1.5	30	8	90
B-20	20T	320	200	105	150	200	44	50	M30 x P1.5	30	8	130

Order references
Code	Model
on request	B-3
on request	B-5
on request	B-10
on request	B-15
on request	B-20

Anchor-bolt version — installation drawing shows a through bolt from the machine base down into a grouted foundation anchor.

Horizontal Level Regulator — Type SB

SB · Taiwan

Coordinate with anchor, Easy to assemble (three unit assemble)

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	l	j
B-3	3T	160	80	55	80	85	28	25	M20 x P2	19	6	60
B-5	5T	205	105	60	100	105	30	30	M24 x P2	23	8	80
B-10	10T	205	110	70	100	105	40	30	M24 x P2	23	8	80
B-15	15T	230	150	80	140	140	44	45	M30 x P1.5	30	8	90
B-20	20T	320	200	105	150	200	44	50	M30 x P1.5	30	8	130

Order references
Code	Model
on request	B-3
on request	B-5
on request	B-10
on request	B-15
on request	B-20

Anchor-bolt version with adjustment range shown on the elevation drawing. The catalogue prints this table with Type B model numbers (B-3 … B-20), not SB-3 … SB-20.
