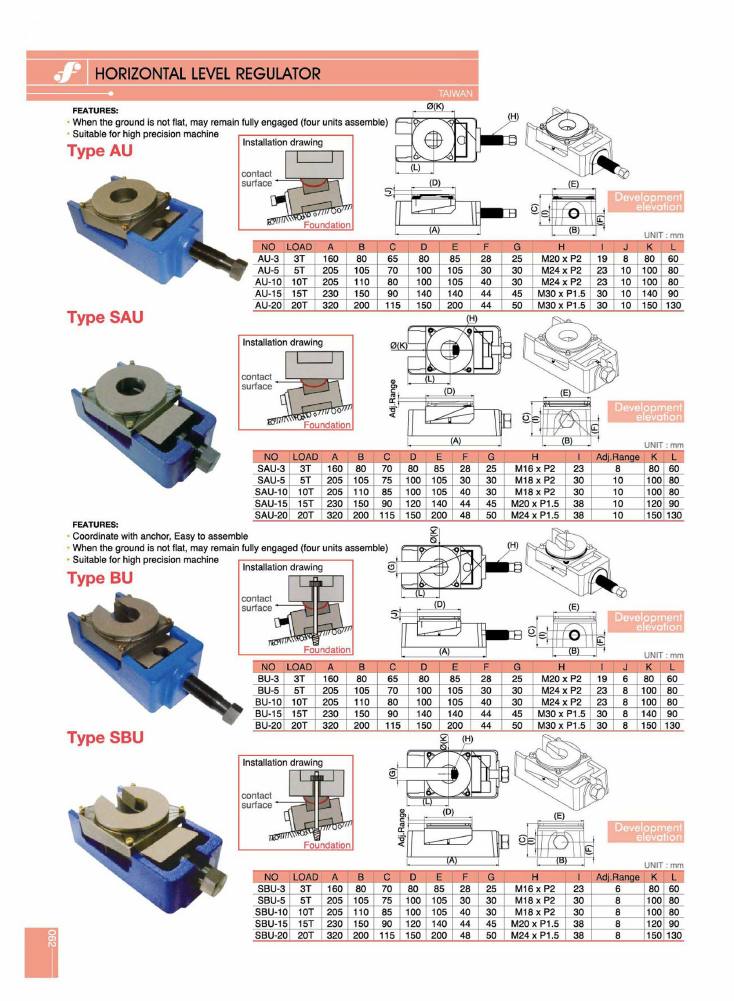

Horizontal level regulator

Models on this page

AU-10AU-15AU-20AU-3AU-5BU-10BU-15BU-20BU-3BU-5SAU-10SAU-15SAU-20SAU-3SAU-5SBU-10SBU-15SBU-20SBU-3SBU-5

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Horizontal Level Regulator — Type AU

AU · Taiwan

When the ground is not flat, may remain fully engaged (four units assemble)
Suitable for high precision machine

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	j	k	l
AU-3	3T	160	80	65	80	85	28	25	M20 x P2	19	8	80	60
AU-5	5T	205	105	70	100	105	30	30	M24 x P2	23	10	100	80
AU-10	10T	205	110	80	100	105	40	30	M24 x P2	23	10	100	80
AU-15	15T	230	150	90	140	140	44	45	M30 x P1.5	30	10	140	90
AU-20	20T	320	200	115	150	200	44	50	M30 x P1.5	30	10	150	130

Order references
Code	Model
on request	AU-3
on request	AU-5
on request	AU-10
on request	AU-15
on request	AU-20

Self-aligning spherical-contact levelling wedge. Installation drawing shows the curved contact surface bearing against the machine base, regulator seated on the foundation. ø(K) is the top contact plate diameter; (H) is the adjusting screw.

Horizontal Level Regulator — Type SAU

SAU · Taiwan

When the ground is not flat, may remain fully engaged (four units assemble)
Suitable for high precision machine

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	adj_range	k	l
SAU-3	3T	160	80	70	80	85	28	25	M16 x P2	23	8	80	60
SAU-5	5T	205	105	75	100	105	30	30	M18 x P2	30	10	100	80
SAU-10	10T	205	110	85	100	105	40	30	M18 x P2	30	10	100	80
SAU-15	15T	230	150	90	120	140	44	45	M20 x P1.5	38	10	120	90
SAU-20	20T	320	200	115	150	200	48	50	M24 x P1.5	38	10	150	130

Order references
Code	Model
on request	SAU-3
on request	SAU-5
on request	SAU-10
on request	SAU-15
on request	SAU-20

As Type AU but with a stated adjustment range column in place of the J dimension, and finer adjusting-screw threads.

Horizontal Level Regulator — Type BU

BU · Taiwan

Coordinate with anchor, Easy to assemble
When the ground is not flat, may remain fully engaged (four units assemble)
Suitable for high precision machine

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	j	k	l
BU-3	3T	160	80	65	80	85	28	25	M20 x P2	19	6	80	60
BU-5	5T	205	105	70	100	105	30	30	M24 x P2	23	8	100	80
BU-10	10T	205	110	80	100	105	40	30	M24 x P2	23	8	100	80
BU-15	15T	230	150	90	140	140	44	45	M30 x P1.5	30	8	140	90
BU-20	20T	320	200	115	150	200	44	50	M30 x P1.5	30	8	150	130

Order references
Code	Model
on request	BU-3
on request	BU-5
on request	BU-10
on request	BU-15
on request	BU-20

Anchor-bolt version of Type AU — installation drawing shows a through bolt from the machine base into a grouted foundation anchor, with the curved contact surface retained.

Horizontal Level Regulator — Type SBU

SBU · Taiwan

Coordinate with anchor, Easy to assemble
When the ground is not flat, may remain fully engaged (four units assemble)
Suitable for high precision machine

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	adj_range	k	l
SBU-3	3T	160	80	70	80	85	28	25	M16 x P2	23	6	80	60
SBU-5	5T	205	105	75	100	105	30	30	M18 x P2	30	8	100	80
SBU-10	10T	205	110	85	100	105	40	30	M18 x P2	30	8	100	80
SBU-15	15T	230	150	90	120	140	44	45	M20 x P1.5	38	8	120	90
SBU-20	20T	320	200	115	150	200	48	50	M24 x P1.5	38	8	150	130

Order references
Code	Model
on request	SBU-3
on request	SBU-5
on request	SBU-10
on request	SBU-15
on request	SBU-20

Anchor-bolt version of Type SAU, with adjustment range in place of the J dimension.
