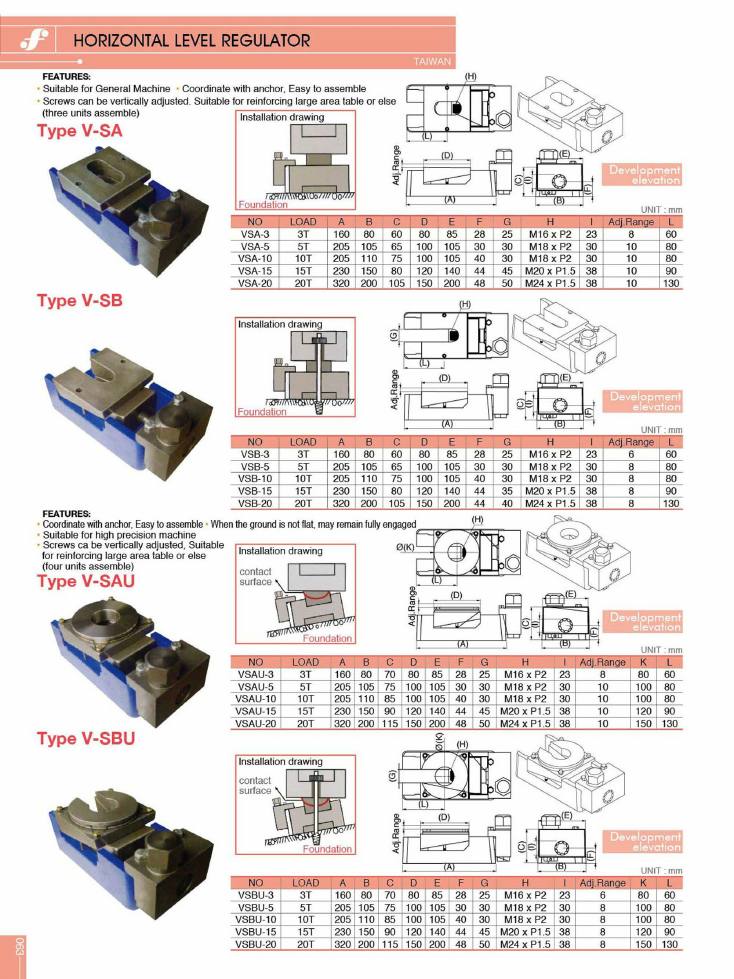

Frejoth accessory catalogue · Page 63

Horizontal level regulator

Models on this page

VSA-10VSA-15VSA-20VSA-3VSA-5VSAU-10VSAU-15VSAU-20VSAU-3VSAU-5VSB-10VSB-15VSB-20VSB-3VSB-5VSBU-10VSBU-15VSBU-20VSBU-3VSBU-5

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Horizontal Level Regulator — Type V-SA

VSA · Taiwan

Suitable for General Machine
Coordinate with anchor, Easy to assemble
Screws can be vertically adjusted. Suitable for reinforcing large area table or else (three units assemble)

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	adj_range	l
VSA-3	3T	160	80	60	80	85	28	25	M16 x P2	23	8	60
VSA-5	5T	205	105	65	100	105	30	30	M18 x P2	30	10	80
VSA-10	10T	205	110	75	100	105	40	30	M18 x P2	30	10	80
VSA-15	15T	230	150	80	120	140	44	45	M20 x P1.5	38	10	90
VSA-20	20T	320	200	105	150	200	48	50	M24 x P1.5	38	10	130

Order references
Code	Model
on request	VSA-3
on request	VSA-5
on request	VSA-10
on request	VSA-15
on request	VSA-20

Vertical-screw variant of the wedge level regulator. Installation drawing shows the unit set on the foundation with a separate vertical support screw alongside. Adj.Range is marked on the side elevation; (H) is the adjusting screw.

Horizontal Level Regulator — Type V-SB

VSB · Taiwan

Suitable for General Machine
Coordinate with anchor, Easy to assemble
Screws can be vertically adjusted. Suitable for reinforcing large area table or else (three units assemble)

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	adj_range	l
VSB-3	3T	160	80	60	80	85	28	25	M16 x P2	23	6	60
VSB-5	5T	205	105	65	100	105	30	30	M18 x P2	30	8	80
VSB-10	10T	205	110	75	100	105	40	30	M18 x P2	30	8	80
VSB-15	15T	230	150	80	120	140	44	35	M20 x P1.5	38	8	90
VSB-20	20T	320	200	105	150	200	44	40	M24 x P1.5	38	8	130

Order references
Code	Model
on request	VSB-3
on request	VSB-5
on request	VSB-10
on request	VSB-15
on request	VSB-20

Anchor-bolt version of Type V-SA — installation drawing shows a through bolt from the machine base into a grouted foundation anchor.

Horizontal Level Regulator — Type V-SAU

VSAU · Taiwan

Coordinate with anchor, Easy to assemble
When the ground is not flat, may remain fully engaged
Suitable for high precision machine
Screws can be vertically adjusted, Suitable for reinforcing large area table or else (four units assemble)

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	adj_range	k	l
VSAU-3	3T	160	80	70	80	85	28	25	M16 x P2	23	8	80	60
VSAU-5	5T	205	105	75	100	105	30	30	M18 x P2	30	10	100	80
VSAU-10	10T	205	110	85	100	105	40	30	M18 x P2	30	10	100	80
VSAU-15	15T	230	150	90	120	140	44	45	M20 x P1.5	38	10	120	90
VSAU-20	20T	320	200	115	150	200	48	50	M24 x P1.5	38	10	150	130

Order references
Code	Model
on request	VSAU-3
on request	VSAU-5
on request	VSAU-10
on request	VSAU-15
on request	VSAU-20

Vertical-screw variant with self-aligning spherical contact surface (shown red in the installation drawing). ø(K) is the top contact plate diameter.

Horizontal Level Regulator — Type V-SBU

VSBU · Taiwan

Coordinate with anchor, Easy to assemble
When the ground is not flat, may remain fully engaged
Suitable for high precision machine
Screws can be vertically adjusted, Suitable for reinforcing large area table or else (four units assemble)

dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	adj_range	k	l
VSBU-3	3T	160	80	70	80	85	28	25	M16 x P2	23	6	80	60
VSBU-5	5T	205	105	75	100	105	30	30	M18 x P2	30	8	100	80
VSBU-10	10T	205	110	85	100	105	40	30	M18 x P2	30	8	100	80
VSBU-15	15T	230	150	90	120	140	44	45	M20 x P1.5	38	8	120	90
VSBU-20	20T	320	200	115	150	200	48	50	M24 x P1.5	38	8	150	130

Order references
Code	Model
on request	VSBU-3
on request	VSBU-5
on request	VSBU-10
on request	VSBU-15
on request	VSBU-20

Anchor-bolt version of Type V-SAU, spherical contact surface retained.
