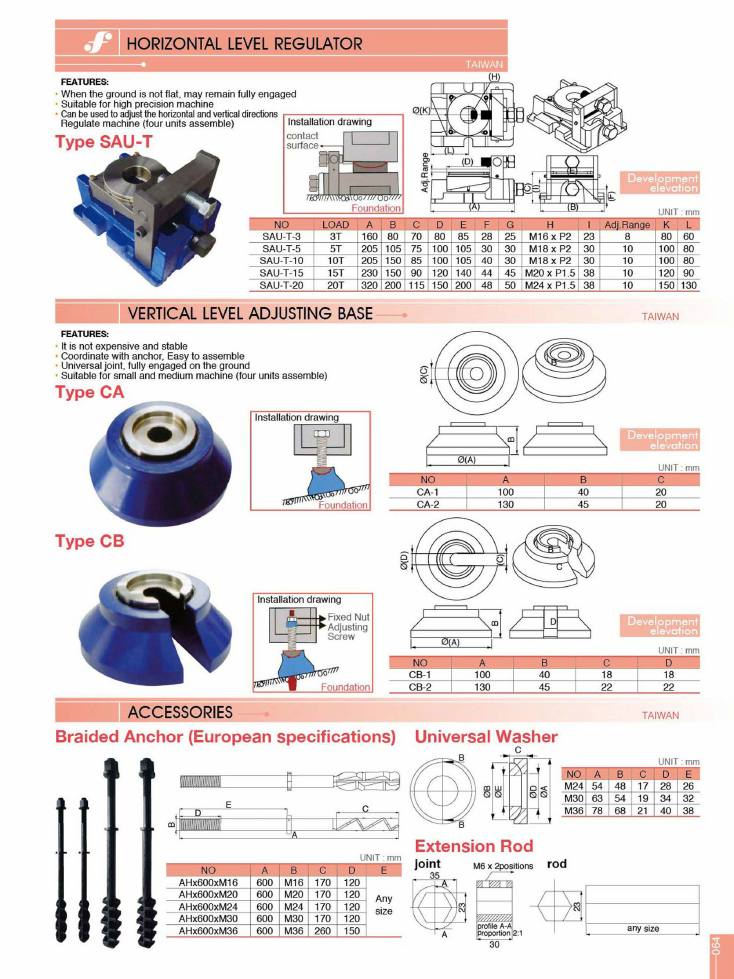

Horizontal Level Regulator

SAU-T · Taiwan

When the ground is not flat, may remain fully engaged
Suitable for high precision machine
Can be used to adjust the horizontal and vertical directions
Regulate machine (four units assemble)

sau_t_dimensions (mm)
no	load	a	b	c	d	e	f	g	h	i	adj_range	k	l
SAU-T-3	3T	160	80	70	80	85	28	25	M16 x P2	23	8	80	60
SAU-T-5	5T	205	105	75	100	105	30	30	M18 x P2	30	10	100	80
SAU-T-10	10T	205	150	85	100	105	40	30	M18 x P2	30	10	100	80
SAU-T-15	15T	230	150	90	120	140	44	45	M20 x P1.5	38	10	120	90
SAU-T-20	20T	320	200	115	150	200	48	50	M24 x P1.5	38	10	150	130

Order references
Code	Model
on request	SAU-T-3
on request	SAU-T-5
on request	SAU-T-10
on request	SAU-T-15
on request	SAU-T-20

Vertical Level Adjusting Base - Type CA

CA · Taiwan

It is not expensive and stable
Coordinate with anchor, easy to assemble
Universal joint, fully engaged on the ground
Suitable for small and medium machine (four units assemble)

ca_dimensions (mm)
no	a	b	c
CA-1	100	40	20
CA-2	130	45	20

Order references
Code	Model
on request	CA-1
on request	CA-2

Vertical Level Adjusting Base - Type CB

CB · Taiwan

cb_dimensions (mm)
no	a	b	c	d
CB-1	100	40	18	18
CB-2	130	45	22	22

Order references
Code	Model
on request	CB-1
on request	CB-2

Braided Anchor (European specifications)

Taiwan

braided_anchor_dimensions (mm)
no	a	b	c	d	e
AHx600xM16	600	M16	170	120	Any size
AHx600xM20	600	M20	170	120	Any size
AHx600xM24	600	M24	170	120	Any size
AHx600xM30	600	M30	170	120	Any size
AHx600xM36	600	M36	260	150	Any size

Order references
Code	Model
on request	AHx600xM16
on request	AHx600xM20
on request	AHx600xM24
on request	AHx600xM30
on request	AHx600xM36

The E column is a single merged cell reading 'Any size' spanning all rows.

Universal Washer

Taiwan

universal_washer_dimensions (mm)
no	a	b	c	d	e
M24	54	48	17	28	26
M30	63	54	19	34	32
M36	78	68	21	40	38

Order references
Code	Model
on request	M24
on request	M30
on request	M36

Extension Rod

Taiwan

Joint and rod illustrated only; both marked 'any size'. Joint drawn with M6 x 2 positions, across-flats 35, profile A-A proportion 2:1, length 30. No model table printed.
