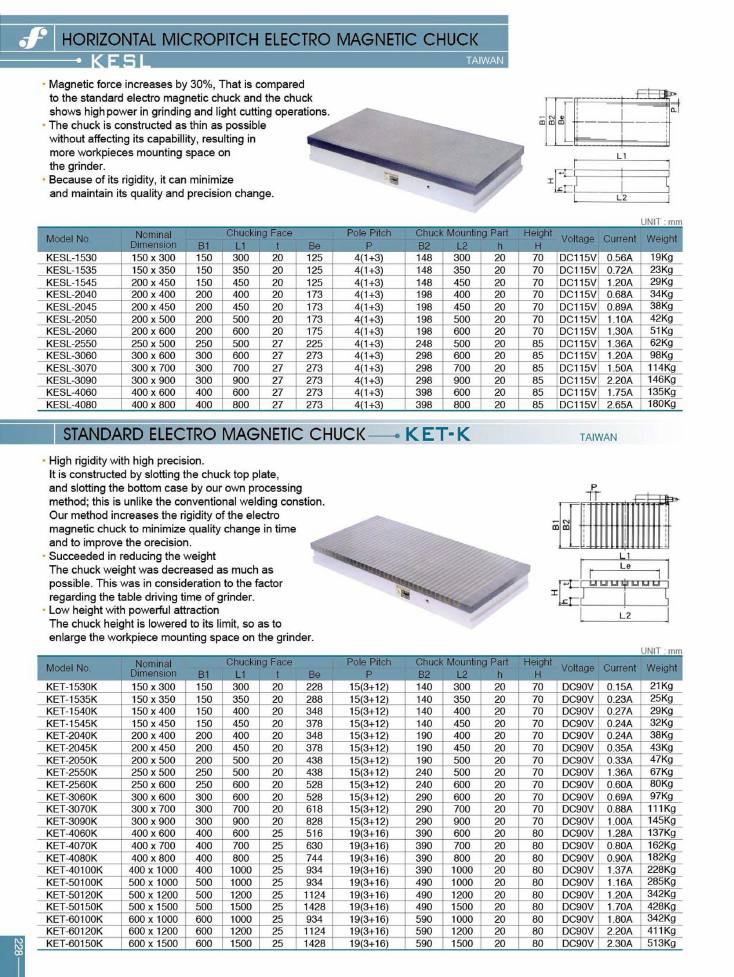

Frejoth accessory catalogue · Page 228

Horizontal Micropitch Electro Magnetic Chuck - KESL

Models on this page

KESL-1530KESL-1535KESL-1545KESL-2040KESL-2045KESL-2050KESL-2060KESL-2550KESL-3060KESL-3070KESL-3090KESL-4060KESL-4080KET-1530KKET-1535KKET-1540KKET-1545KKET-2040KKET-2045KKET-2050KKET-2550KKET-2560KKET-3060KKET-3070KKET-3090KKET-40100KKET-4060KKET-4070KKET-4080KKET-50100KKET-50120KKET-50150KKET-60100KKET-60120KKET-60150K

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Horizontal Micropitch Electro Magnetic Chuck - KESL

KESL · Taiwan

Magnetic force increases by 30%. That is compared to the standard electro magnetic chuck and the chuck shows high power in grinding and light cutting operations.
The chuck is constructed as thin as possible without affecting its capability, resulting in more workpieces mounting space on the grinder.
Because of its rigidity, it can minimize and maintain its quality and precision change.

horizontal_micropitch_electro_magnetic_chuck (mm)
model_no	nominal_dimension	b1	l1	t	be	pole_pitch_p	b2	l2	h	height_h	voltage	current	weight
KESL-1530	150 x 300	150	300	20	125	4(1+3)	148	300	20	70	DC115V	0.56A	19Kg
KESL-1535	150 x 350	150	350	20	125	4(1+3)	148	350	20	70	DC115V	0.72A	23Kg
KESL-1545	200 x 450	150	450	20	125	4(1+3)	148	450	20	70	DC115V	1.20A	29Kg
KESL-2040	200 x 400	200	400	20	173	4(1+3)	198	400	20	70	DC115V	0.68A	34Kg
KESL-2045	200 x 450	200	450	20	173	4(1+3)	198	450	20	70	DC115V	0.89A	38Kg
KESL-2050	200 x 500	200	500	20	173	4(1+3)	198	500	20	70	DC115V	1.10A	42Kg
KESL-2060	200 x 600	200	600	20	175	4(1+3)	198	600	20	70	DC115V	1.30A	51Kg
KESL-2550	250 x 500	250	500	27	225	4(1+3)	248	500	20	85	DC115V	1.36A	62Kg
KESL-3060	300 x 600	300	600	27	273	4(1+3)	298	600	20	85	DC115V	1.20A	98Kg
KESL-3070	300 x 700	300	700	27	273	4(1+3)	298	700	20	85	DC115V	1.50A	114Kg
KESL-3090	300 x 900	300	900	27	273	4(1+3)	298	900	20	85	DC115V	2.20A	146Kg
KESL-4060	400 x 600	400	600	27	273	4(1+3)	398	600	20	85	DC115V	1.75A	135Kg
KESL-4080	400 x 800	400	800	27	273	4(1+3)	398	800	20	85	DC115V	2.65A	180Kg

Order references
Code	Model
on request	KESL-1530
on request	KESL-1535
on request	KESL-1545
on request	KESL-2040
on request	KESL-2045
on request	KESL-2050
on request	KESL-2060
on request	KESL-2550
on request	KESL-3060
on request	KESL-3070
on request	KESL-3090
on request	KESL-4060
on request	KESL-4080

Standard Electro Magnetic Chuck - KET-K

KET-K · Taiwan

High rigidity with high precision. It is constructed by slotting the chuck top plate, and slotting the bottom case by our own processing method; this is unlike the conventional welding constion. Our method increases the rigidity of the electro magnetic chuck to minimize quality change in time and to improve the precision.
Succeeded in reducing the weight. The chuck weight was decreased as much as possible. This was in consideration to the factor regarding the table driving time of grinder.
Low height with powerful attraction. The chuck height is lowered to its limit, so as to enlarge the workpiece mounting space on the grinder.

standard_electro_magnetic_chuck (mm)
model_no	nominal_dimension	b1	l1	t	be	pole_pitch_p	b2	l2	h	height_h	voltage	current	weight
KET-1530K	150 x 300	150	300	20	228	15(3+12)	140	300	20	70	DC90V	0.15A	21Kg
KET-1535K	150 x 350	150	350	20	288	15(3+12)	140	350	20	70	DC90V	0.23A	25Kg
KET-1540K	150 x 400	150	400	20	348	15(3+12)	140	400	20	70	DC90V	0.27A	29Kg
KET-1545K	150 x 450	150	450	20	378	15(3+12)	140	450	20	70	DC90V	0.24A	32Kg
KET-2040K	200 x 400	200	400	20	348	15(3+12)	190	400	20	70	DC90V	0.24A	38Kg
KET-2045K	200 x 450	200	450	20	378	15(3+12)	190	450	20	70	DC90V	0.35A	43Kg
KET-2050K	200 x 500	200	500	20	438	15(3+12)	190	500	20	70	DC90V	0.33A	47Kg
KET-2550K	250 x 500	250	500	20	438	15(3+12)	240	500	20	70	DC90V	1.36A	67Kg
KET-2560K	250 x 600	250	600	20	528	15(3+12)	240	600	20	70	DC90V	0.60A	80Kg
KET-3060K	300 x 600	300	600	20	528	15(3+12)	290	600	20	70	DC90V	0.69A	97Kg
KET-3070K	300 x 700	300	700	20	618	15(3+12)	290	700	20	70	DC90V	0.88A	111Kg
KET-3090K	300 x 900	300	900	20	828	15(3+12)	290	900	20	70	DC90V	1.00A	145Kg
KET-4060K	400 x 600	400	600	25	516	19(3+16)	390	600	20	80	DC90V	1.28A	137Kg
KET-4070K	400 x 700	400	700	25	630	19(3+16)	390	700	20	80	DC90V	0.80A	162Kg
KET-4080K	400 x 800	400	800	25	744	19(3+16)	390	800	20	80	DC90V	0.90A	182Kg
KET-40100K	400 x 1000	400	1000	25	934	19(3+16)	390	1000	20	80	DC90V	1.37A	228Kg
KET-50100K	500 x 1000	500	1000	25	934	19(3+16)	490	1000	20	80	DC90V	1.16A	285Kg
KET-50120K	500 x 1200	500	1200	25	1124	19(3+16)	490	1200	20	80	DC90V	1.20A	342Kg
KET-50150K	500 x 1500	500	1500	25	1428	19(3+16)	490	1500	20	80	DC90V	1.70A	428Kg
KET-60100K	600 x 1000	600	1000	25	934	19(3+16)	590	1000	20	80	DC90V	1.80A	342Kg
KET-60120K	600 x 1200	600	1200	25	1124	19(3+16)	590	1200	20	80	DC90V	2.20A	411Kg
KET-60150K	600 x 1500	600	1500	25	1428	19(3+16)	590	1500	20	80	DC90V	2.30A	513Kg
