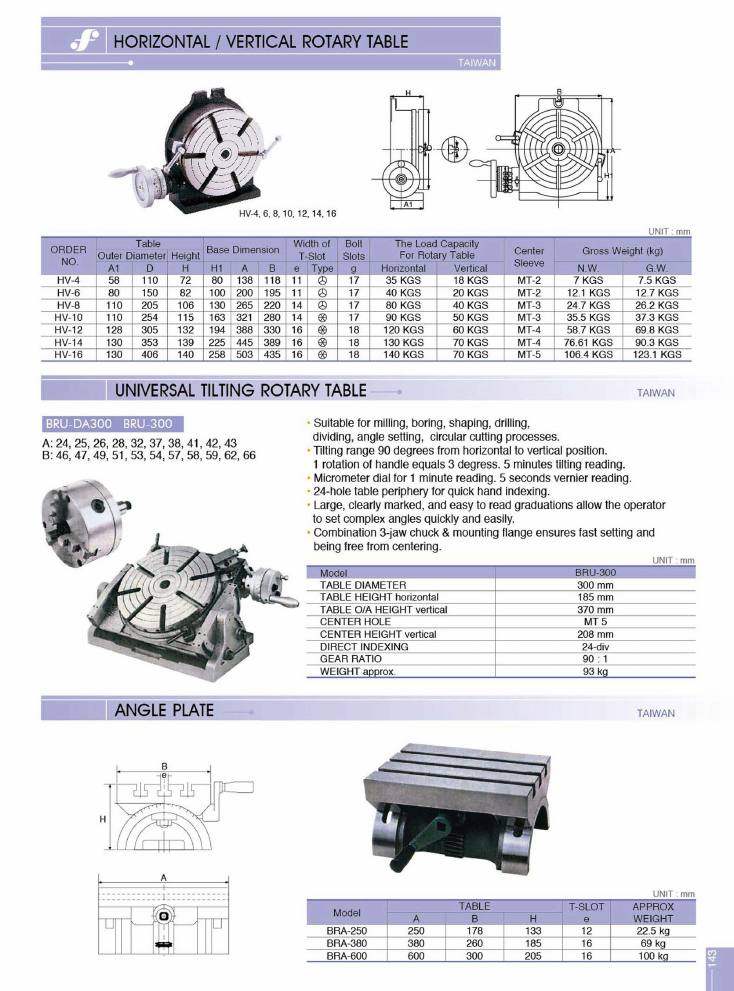

Horizontal / Vertical rotary table · Universal tilting rotary table · Angle plate

Models on this page

BRA-250BRA-380BRA-600BRU-300BRU-DA300HV-10HV-12HV-14HV-16HV-4HV-6HV-8

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Horizontal / Vertical Rotary Table

HV · Taiwan

specifications (mm)
order_no	table_outer_diameter_a1	table_outer_diameter_d	table_height_h	base_dimension_h1	base_dimension_a	base_dimension_b	width_of_t_slot_e	width_of_t_slot_type	bolt_slots_g	load_capacity_horizontal	load_capacity_vertical	center_sleeve	n_w	g_w
HV-4	58	110	72	80	138	118	11	3-slot symbol	17	35 KGS	18 KGS	MT-2	7 KGS	7.5 KGS
HV-6	80	150	82	100	200	195	11	3-slot symbol	17	40 KGS	20 KGS	MT-2	12.1 KGS	12.7 KGS
HV-8	110	205	106	130	265	220	14	3-slot symbol	17	80 KGS	40 KGS	MT-3	24.7 KGS	26.2 KGS
HV-10	110	254	115	163	321	280	14	6-slot symbol	17	90 KGS	50 KGS	MT-3	35.5 KGS	37.3 KGS
HV-12	128	305	132	194	388	330	16	6-slot symbol	18	120 KGS	60 KGS	MT-4	58.7 KGS	69.8 KGS
HV-14	130	353	139	225	445	389	16	6-slot symbol	18	130 KGS	70 KGS	MT-4	76.61 KGS	90.3 KGS
HV-16	130	406	140	258	503	435	16	6-slot symbol	18	140 KGS	70 KGS	MT-5	106.4 KGS	123.1 KGS

Order references
Code	Model
on request	HV-4
on request	HV-6
on request	HV-8
on request	HV-10
on request	HV-12
on request	HV-14
on request	HV-16

Range illustrated as HV-4, 6, 8, 10, 12, 14, 16. Dimensioned drawings label A1, D, H, H1, A, B, e and g. The "Type" column is a pictogram of the table face, not text: a circle with three radial T-slots for HV-4/6/8 and six radial T-slots for HV-10/12/14/16.

Universal Tilting Rotary Table

BRU · Taiwan

Suitable for milling, boring, shaping, drilling, dividing, angle setting, circular cutting processes.
Tilting range 90 degrees from horizontal to vertical position. 1 rotation of handle equals 3 degress. 5 minutes tilting reading.
Micrometer dial for 1 minute reading. 5 seconds vernier reading.
24-hole table periphery for quick hand indexing.
Large, clearly marked, and easy to read graduations allow the operator to set complex angles quickly and easily.
Combination 3-jaw chuck & mounting flange ensures fast setting and being free from centering.

specifications (mm)
model	BRU-300
TABLE DIAMETER	300 mm
TABLE HEIGHT horizontal	185 mm
TABLE O/A HEIGHT vertical	370 mm
CENTER HOLE	MT 5
CENTER HEIGHT vertical	208 mm
DIRECT INDEXING	24-div
GEAR RATIO	90 : 1
WEIGHT approx.	93 kg

Order references
Code	Model
on request	BRU-300
on request	BRU-DA300

Headed "BRU-DA300 BRU-300" with two unexplained number lists printed beneath: A: 24, 25, 26, 28, 32, 37, 38, 41, 42, 43 — B: 46, 47, 49, 51, 53, 54, 57, 58, 59, 62, 66.

Angle Plate

BRA · Taiwan

specifications (mm)
model	table_a	table_b	table_h	t_slot_e	approx_weight
BRA-250	250	178	133	12	22.5 kg
BRA-380	380	260	185	16	69 kg
BRA-600	600	300	205	16	100 kg

Order references
Code	Model
on request	BRA-250
on request	BRA-380
on request	BRA-600

Drawings label table width B, height H, T-slot width e and length A.
