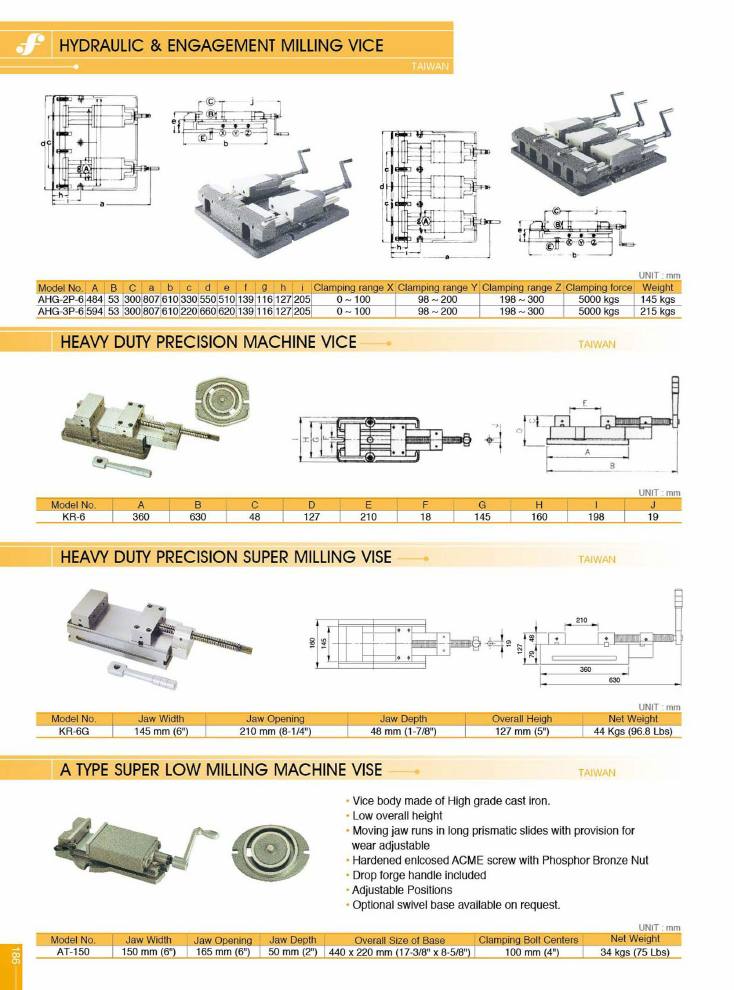

Frejoth accessory catalogue · Page 186
Hydraulic & Engagement Milling Vice
Models on this page
AHG-2P-6AHG-3P-6AT-150KR-6KR-6G
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Hydraulic & Engagement Milling Vice
AHG · Taiwan
| model_no | a_upper | b_upper | c_upper | a | b | c | d | e | f | g | h | i | clamping_range_x | clamping_range_y | clamping_range_z | clamping_force | weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| AHG-2P-6 | 484 | 53 | 300 | 807 | 610 | 330 | 550 | 510 | 139 | 116 | 127 | 205 | 0 ~ 100 | 98 ~ 200 | 198 ~ 300 | 5000 kgs | 145 kgs |
| AHG-3P-6 | 594 | 53 | 300 | 807 | 610 | 220 | 660 | 620 | 139 | 116 | 127 | 205 | 0 ~ 100 | 98 ~ 200 | 198 ~ 300 | 5000 kgs | 215 kgs |
| Code | Model |
|---|---|
| on request | AHG-2P-6 |
| on request | AHG-3P-6 |
Heavy Duty Precision Machine Vice
KR · Taiwan
| model_no | a | b | c | d | e | f | g | h | i | j |
|---|---|---|---|---|---|---|---|---|---|---|
| KR-6 | 360 | 630 | 48 | 127 | 210 | 18 | 145 | 160 | 198 | 19 |
| Code | Model |
|---|---|
| on request | KR-6 |
Heavy Duty Precision Super Milling Vise
KR · Taiwan
| model_no | jaw_width | jaw_opening | jaw_depth | overall_height | net_weight |
|---|---|---|---|---|---|
| KR-6G | 145 mm (6") | 210 mm (8-1/4") | 48 mm (1-7/8") | 127 mm (5") | 44 Kgs (96.8 Lbs) |
| Code | Model |
|---|---|
| on request | KR-6G |
Drawing dimensions shown on the page: 190, 145, 127, 70, 48, 19, 210, 360, 630.
A Type Super Low Milling Machine Vise
AT · Taiwan
- Vice body made of high grade cast iron.
- Low overall height.
- Moving jaw runs in long prismatic slides with provision for wear adjustable.
- Hardened enclosed ACME screw with Phosphor Bronze Nut.
- Drop forge handle included.
- Adjustable positions.
- Optional swivel base available on request.
| model_no | jaw_width | jaw_opening | jaw_depth | overall_size_of_base | clamping_bolt_centers | net_weight |
|---|---|---|---|---|---|---|
| AT-150 | 150 mm (6") | 165 mm (6") | 50 mm (2") | 440 x 220 mm (17-3/8" x 8-5/8") | 100 mm (4") | 34 kgs (75 Lbs) |
| Code | Model |
|---|---|
| on request | AT-150 |
