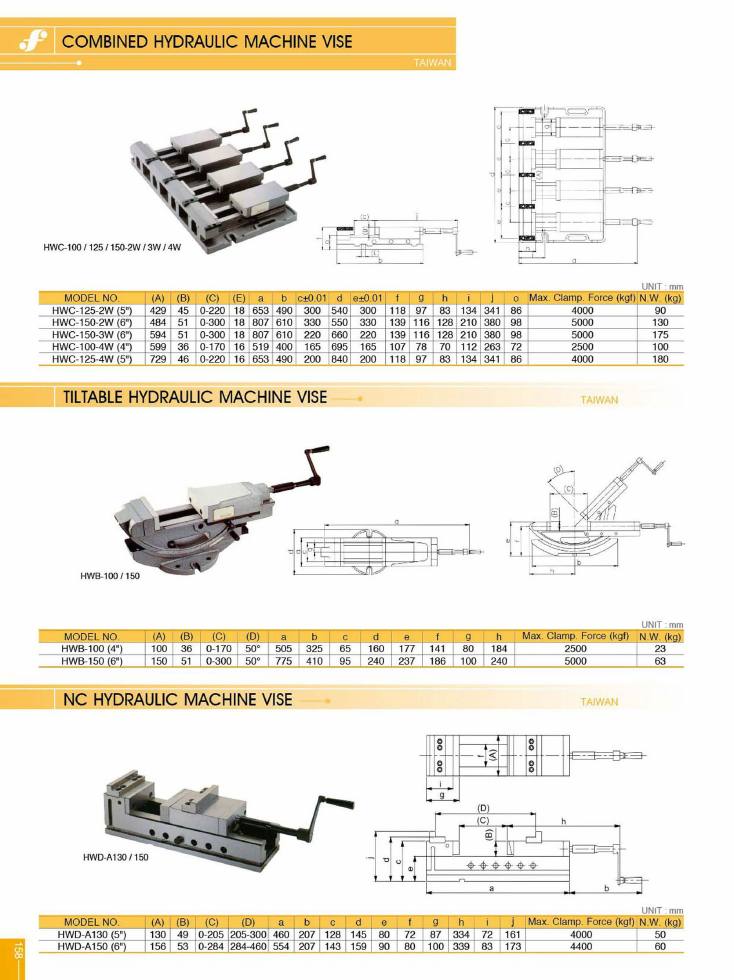

Frejoth accessory catalogue · Page 158
Hydraulic machine vise
Models on this page
HWB-100 (4")HWB-150 (6")HWC-100-4W (4")HWC-125-2W (5")HWC-125-4W (5")HWC-150-2W (6")HWC-150-3W (6")HWD-A130 (5")HWD-A150 (6")
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Combined Hydraulic Machine Vise
HWC · Taiwan
| model_no | A | B | C | E | a | b | c_plus_minus_0_01 | d | e_plus_minus_0_01 | f | g | h | i | j | o | max_clamp_force_kgf | nw_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWC-125-2W (5") | 429 | 45 | 0-220 | 18 | 653 | 490 | 300 | 540 | 300 | 118 | 97 | 83 | 134 | 341 | 86 | 4000 | 90 |
| HWC-150-2W (6") | 484 | 51 | 0-300 | 18 | 807 | 610 | 330 | 550 | 330 | 139 | 116 | 128 | 210 | 380 | 98 | 5000 | 130 |
| HWC-150-3W (6") | 594 | 51 | 0-300 | 18 | 807 | 610 | 220 | 660 | 220 | 139 | 116 | 128 | 210 | 380 | 98 | 5000 | 175 |
| HWC-100-4W (4") | 599 | 36 | 0-170 | 16 | 519 | 400 | 165 | 695 | 165 | 107 | 78 | 70 | 112 | 263 | 72 | 2500 | 100 |
| HWC-125-4W (5") | 729 | 46 | 0-220 | 16 | 653 | 490 | 200 | 840 | 200 | 118 | 97 | 83 | 134 | 341 | 86 | 4000 | 180 |
| Code | Model |
|---|---|
| on request | HWC-125-2W (5") |
| on request | HWC-150-2W (6") |
| on request | HWC-150-3W (6") |
| on request | HWC-100-4W (4") |
| on request | HWC-125-4W (5") |
HWC-100 / 125 / 150-2W / 3W / 4W. Multi-station (2W/3W/4W) combined vise. Unit: mm.
Tiltable Hydraulic Machine Vise
HWB · Taiwan
| model_no | A | B | C | D | a | b | c | d | e | f | g | h | max_clamp_force_kgf | nw_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWB-100 (4") | 100 | 36 | 0-170 | 50° | 505 | 325 | 65 | 160 | 177 | 141 | 80 | 184 | 2500 | 23 |
| HWB-150 (6") | 150 | 51 | 0-300 | 50° | 775 | 410 | 95 | 240 | 237 | 186 | 100 | 240 | 5000 | 63 |
| Code | Model |
|---|---|
| on request | HWB-100 (4") |
| on request | HWB-150 (6") |
HWB-100 / 150. Swivel/tilt base, (D) column is the tilt angle. Unit: mm.
NC Hydraulic Machine Vise
HWD-A · Taiwan
| model_no | A | B | C | D | a | b | c | d | e | f | g | h | i | j | max_clamp_force_kgf | nw_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HWD-A130 (5") | 130 | 49 | 0-205 | 205-300 | 460 | 207 | 128 | 145 | 80 | 72 | 87 | 334 | 72 | 161 | 4000 | 50 |
| HWD-A150 (6") | 156 | 53 | 0-284 | 284-460 | 554 | 207 | 143 | 159 | 90 | 80 | 100 | 339 | 83 | 173 | 4400 | 60 |
| Code | Model |
|---|---|
| on request | HWD-A130 (5") |
| on request | HWD-A150 (6") |
HWD-A130 / 150. Unit: mm.
