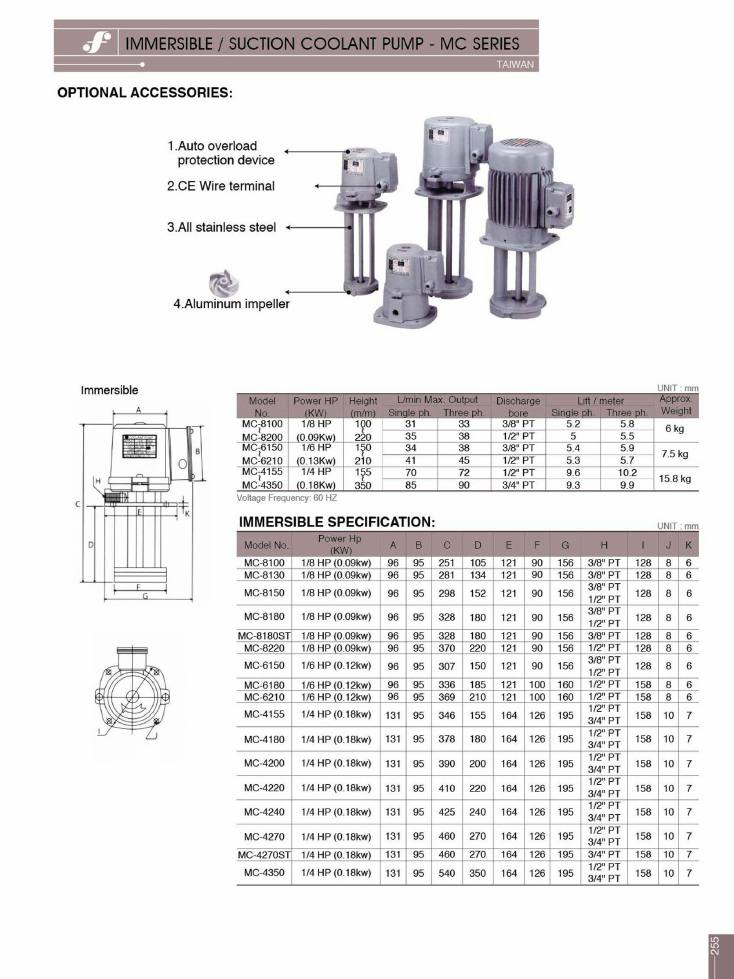

Frejoth accessory catalogue · Page 258
IMMERSIBLE / SUCTION COOLANT PUMP - MC SERIES
Models on this page
MC-4155MC-4180MC-4200MC-4220MC-4240MC-4270MC-4270STMC-4350MC-6150MC-6180MC-6210MC-8100MC-8130MC-8150MC-8180MC-8180STMC-8200MC-8220
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Immersible Coolant Pump - MC Series
MC · Taiwan
- Auto overload protection device
- CE Wire terminal
- All stainless steel
- Aluminum impeller
| model_no | power_hp_kw | height_m_m | l_min_max_output_single_ph | l_min_max_output_three_ph | discharge_bore | lift_meter_single_ph | lift_meter_three_ph | approx_weight |
|---|---|---|---|---|---|---|---|---|
| MC-8100 | 1/8 HP (0.09Kw) | 100 | 31 | 33 | 3/8" PT | 5.2 | 5.8 | 6 kg |
| MC-8200 | 1/8 HP (0.09Kw) | 220 | 35 | 38 | 1/2" PT | 5 | 5.5 | 6 kg |
| MC-6150 | 1/6 HP (0.13Kw) | 150 | 34 | 38 | 3/8" PT | 5.4 | 5.9 | 7.5 kg |
| MC-6210 | 1/6 HP (0.13Kw) | 210 | 41 | 45 | 1/2" PT | 5.3 | 5.7 | 7.5 kg |
| MC-4155 | 1/4 HP (0.18Kw) | 155 | 70 | 72 | 1/2" PT | 9.6 | 10.2 | 15.8 kg |
| MC-4350 | 1/4 HP (0.18Kw) | 350 | 85 | 90 | 3/4" PT | 9.3 | 9.9 | 15.8 kg |
| model_no | power_hp_kw | a | b | c | d | e | f | g | h | i | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MC-8100 | 1/8 HP (0.09kw) | 96 | 95 | 251 | 105 | 121 | 90 | 156 | 3/8" PT | 128 | 8 | 6 |
| MC-8130 | 1/8 HP (0.09kw) | 96 | 95 | 281 | 134 | 121 | 90 | 156 | 3/8" PT | 128 | 8 | 6 |
| MC-8150 | 1/8 HP (0.09kw) | 96 | 95 | 298 | 152 | 121 | 90 | 156 | 3/8" PT / 1/2" PT | 128 | 8 | 6 |
| MC-8180 | 1/8 HP (0.09kw) | 96 | 95 | 328 | 180 | 121 | 90 | 156 | 3/8" PT / 1/2" PT | 128 | 8 | 6 |
| MC-8180ST | 1/8 HP (0.09kw) | 96 | 95 | 328 | 180 | 121 | 90 | 156 | 3/8" PT | 128 | 8 | 6 |
| MC-8220 | 1/8 HP (0.09kw) | 96 | 95 | 370 | 220 | 121 | 90 | 156 | 1/2" PT | 128 | 8 | 6 |
| MC-6150 | 1/6 HP (0.12kw) | 96 | 95 | 307 | 150 | 121 | 90 | 156 | 3/8" PT / 1/2" PT | 128 | 8 | 6 |
| MC-6180 | 1/6 HP (0.12kw) | 96 | 95 | 336 | 185 | 121 | 100 | 160 | 1/2" PT | 158 | 8 | 6 |
| MC-6210 | 1/6 HP (0.12kw) | 96 | 95 | 369 | 210 | 121 | 100 | 160 | 1/2" PT | 158 | 8 | 6 |
| MC-4155 | 1/4 HP (0.18kw) | 131 | 95 | 346 | 155 | 164 | 126 | 195 | 1/2" PT / 3/4" PT | 158 | 10 | 7 |
| MC-4180 | 1/4 HP (0.18kw) | 131 | 95 | 378 | 180 | 164 | 126 | 195 | 1/2" PT / 3/4" PT | 158 | 10 | 7 |
| MC-4200 | 1/4 HP (0.18kw) | 131 | 95 | 390 | 200 | 164 | 126 | 195 | 1/2" PT / 3/4" PT | 158 | 10 | 7 |
| MC-4220 | 1/4 HP (0.18kw) | 131 | 95 | 410 | 220 | 164 | 126 | 195 | 1/2" PT / 3/4" PT | 158 | 10 | 7 |
| MC-4240 | 1/4 HP (0.18kw) | 131 | 95 | 425 | 240 | 164 | 126 | 195 | 1/2" PT / 3/4" PT | 158 | 10 | 7 |
| MC-4270 | 1/4 HP (0.18kw) | 131 | 95 | 460 | 270 | 164 | 126 | 195 | 1/2" PT / 3/4" PT | 158 | 10 | 7 |
| MC-4270ST | 1/4 HP (0.18kw) | 131 | 95 | 460 | 270 | 164 | 126 | 195 | 3/4" PT | 158 | 10 | 7 |
| MC-4350 | 1/4 HP (0.18kw) | 131 | 95 | 540 | 350 | 164 | 126 | 195 | 1/2" PT / 3/4" PT | 158 | 10 | 7 |
| Code | Model |
|---|---|
| on request | MC-8100 |
| on request | MC-8130 |
| on request | MC-8150 |
| on request | MC-8180 |
| on request | MC-8180ST |
| on request | MC-8200 |
| on request | MC-8220 |
| on request | MC-6150 |
| on request | MC-6180 |
| on request | MC-6210 |
| on request | MC-4155 |
| on request | MC-4180 |
| on request | MC-4200 |
| on request | MC-4220 |
| on request | MC-4240 |
| on request | MC-4270 |
| on request | MC-4270ST |
| on request | MC-4350 |
The four features listed are printed on this page under the heading 'OPTIONAL ACCESSORIES:'. Voltage Frequency: 60 HZ.
