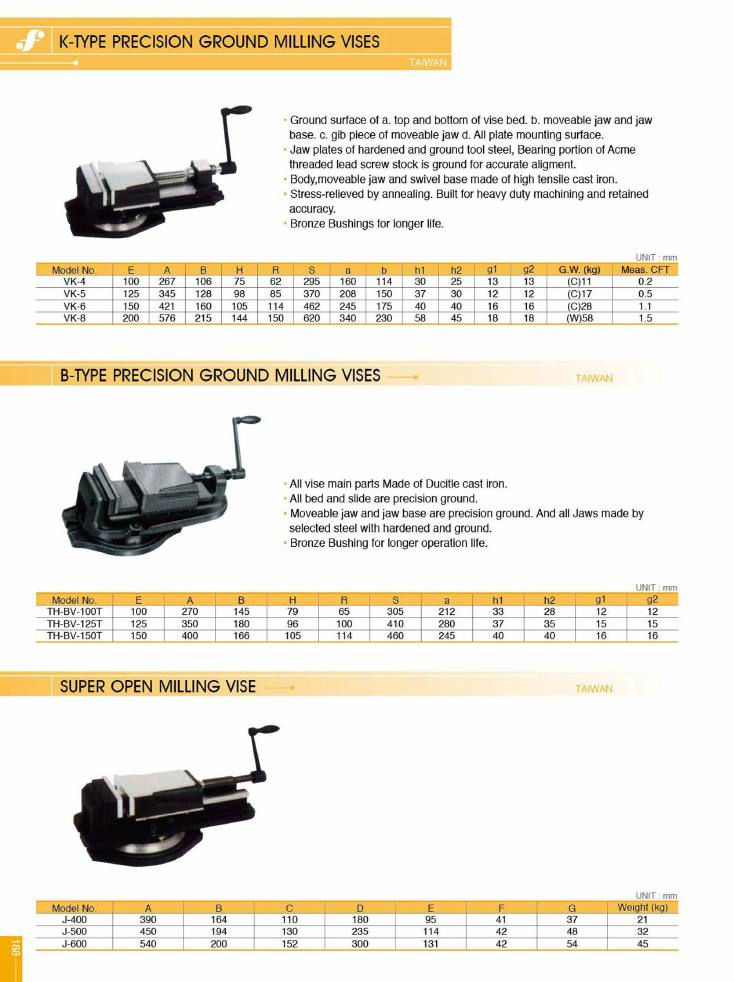

K-TYPE PRECISION GROUND MILLING VISES

Name: CNC Machinery Sales Australia
Address: AU
Telephone: +61 1300 262 622

Models on this page

J-400J-500J-600TH-BV-100TTH-BV-125TTH-BV-150TVK-4VK-5VK-6VK-8

Send us your details and we'll come back with pricing, availability and specifications.

VK · Taiwan

Ground surface of a. top and bottom of vise bed. b. moveable jaw and jaw base. c. gib piece of moveable jaw d. All plate mounting surface.
Jaw plates of hardened and ground tool steel, Bearing portion of Acme threaded lead screw stock is ground for accurate aligment.
Body,moveable jaw and swivel base made of high tensile cast iron.
Stress-relieved by annealing. Built for heavy duty machining and retained accuracy.
Bronze Bushings for longer life.

dimensions (mm)
model_no	e	a_upper	b_upper	h	r	s	a_lower	b_lower	h1	h2	g1	g2	gw_kg	meas_cft
VK-4	100	267	106	75	62	295	160	114	30	25	13	13	(C)11	0.2
VK-5	125	345	128	98	85	370	208	150	37	30	12	12	(C)17	0.5
VK-6	150	421	160	105	114	462	245	175	40	40	16	16	(C)28	1.1
VK-8	200	576	215	144	150	620	340	230	58	45	18	18	(W)58	1.5

TH-BV · Taiwan

All vise main parts Made of Ducitle cast iron.
All bed and slide are precision ground.
Moveable jaw and jaw base are precision ground. And all Jaws made by selected steel with hardened and ground.
Bronze Bushing for longer operation life.

dimensions (mm)
model_no	e	a_upper	b_upper	h	r	s	a_lower	h1	h2	g1	g2
TH-BV-100T	100	270	145	79	65	305	212	33	28	12	12
TH-BV-125T	125	350	180	96	100	410	280	37	35	15	15
TH-BV-150T	150	400	166	105	114	460	245	40	40	16	16

J · Taiwan

dimensions (mm)
model_no	a	b	c	d	e	f	g	weight_kg
J-400	390	164	110	180	95	41	37	21
J-500	450	194	130	235	114	42	48	32
J-600	540	200	152	300	131	42	54	45
