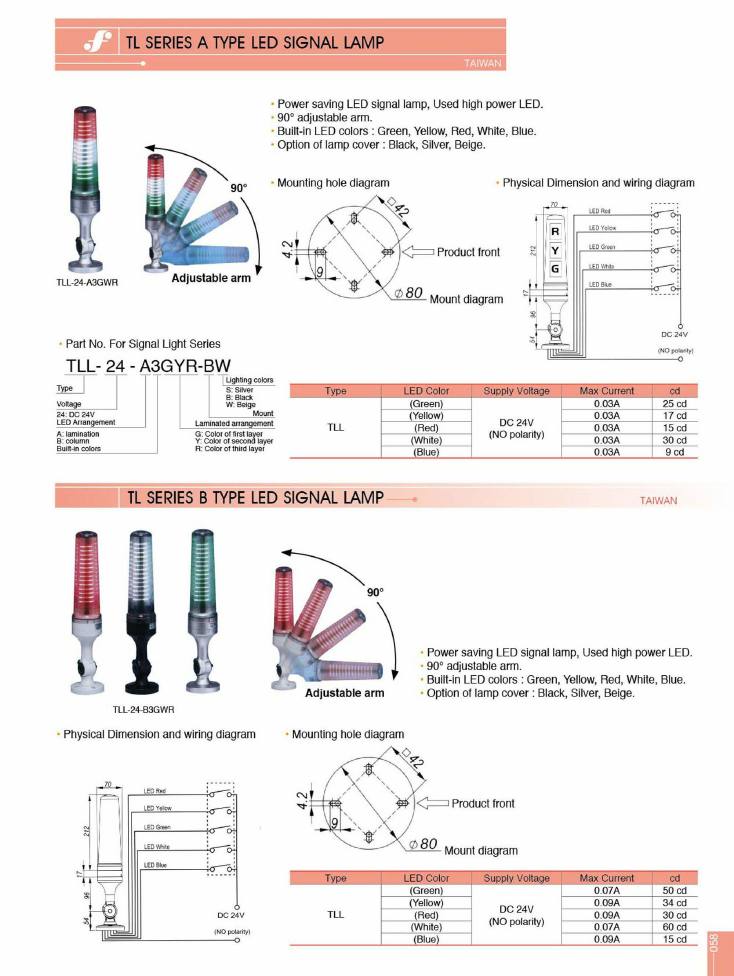

TL Series A Type LED Signal Lamp
- Power saving LED signal lamp, Used high power LED.
- 90° adjustable arm.
- Built-in LED colors : Green, Yellow, Red, White, Blue.
- Option of lamp cover : Black, Silver, Beige.
| type | led_color | supply_voltage | max_current | cd |
|---|---|---|---|---|
| TLL | Green | DC 24V (NO polarity) | 0.03A | 25 cd |
| TLL | Yellow | DC 24V (NO polarity) | 0.03A | 17 cd |
| TLL | Red | DC 24V (NO polarity) | 0.03A | 15 cd |
| TLL | White | DC 24V (NO polarity) | 0.03A | 30 cd |
| TLL | Blue | DC 24V (NO polarity) | 0.03A | 9 cd |
| Code | Model |
|---|---|
| on request | TLL |
| on request | TLL |
| on request | TLL |
| on request | TLL |
| on request | TLL |
| on request | TLL-24-A3GWR |
Part No. for Signal Light Series, e.g. TLL-24-A3GYR-BW. Type; Voltage 24: DC 24V; LED Arrangement A: lamination, B: column, then built-in colors; Laminated arrangement G: colour of first layer, Y: colour of second layer, R: colour of third layer; Lighting/cover colours S: Silver, B: Black, W: Beige. Example product shown: TLL-24-A3GWR. Physical dimensions (mm): overall height 212, base section 96, mount 54, collar 17, lamp diameter 70. Mounting hole diagram: square 42 pitch, hole 4.2, 9 offset, mount diagram ø80. Wiring: LED Red / Yellow / Green / White / Blue to DC 24V (no polarity).
TL Series B Type LED Signal Lamp
- Power saving LED signal lamp, Used high power LED.
- 90° adjustable arm.
- Built-in LED colors : Green, Yellow, Red, White, Blue.
- Option of lamp cover : Black, Silver, Beige.
| type | led_color | supply_voltage | max_current | cd |
|---|---|---|---|---|
| TLL | Green | DC 24V (NO polarity) | 0.07A | 50 cd |
| TLL | Yellow | DC 24V (NO polarity) | 0.09A | 34 cd |
| TLL | Red | DC 24V (NO polarity) | 0.09A | 30 cd |
| TLL | White | DC 24V (NO polarity) | 0.07A | 60 cd |
| TLL | Blue | DC 24V (NO polarity) | 0.09A | 15 cd |
| Code | Model |
|---|---|
| on request | TLL |
| on request | TLL |
| on request | TLL |
| on request | TLL |
| on request | TLL |
| on request | TLL-24-B3GWR |
Example product shown: TLL-24-B3GWR. Physical dimensions (mm): overall height 212, base section 96, mount 54, collar 17, lamp diameter 70. Mounting hole diagram: square 42 pitch, hole 4.2, 9 offset, mount diagram ø80. Wiring: LED Red / Yellow / Green / White / Blue to DC 24V (no polarity).
