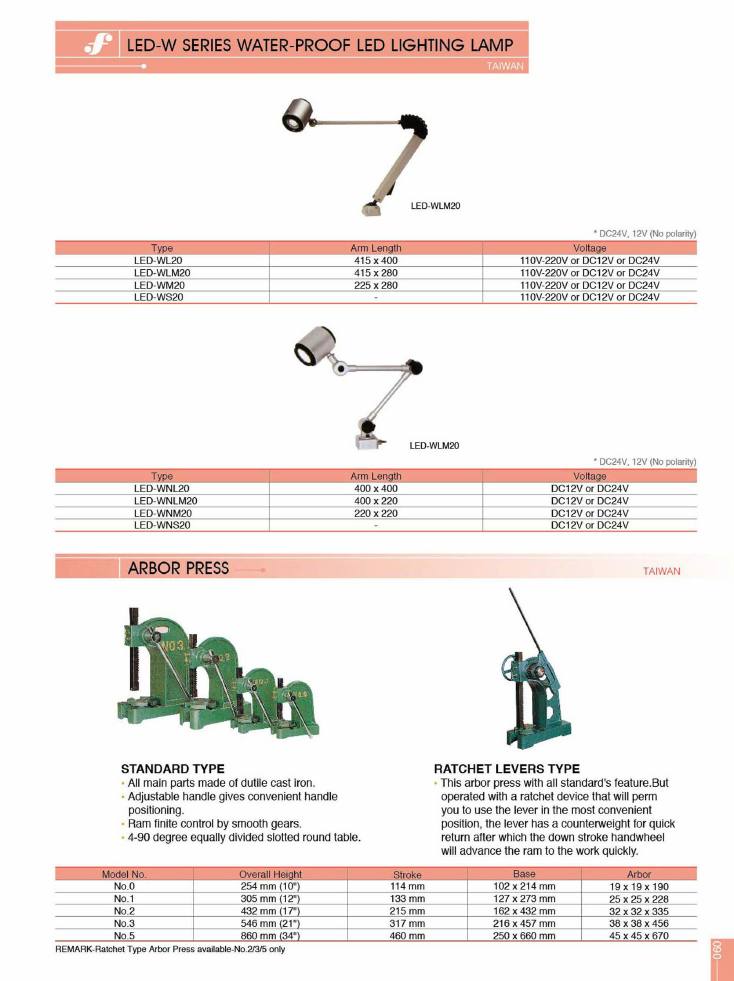

Frejoth accessory catalogue · Page 60
LED-W series water-proof LED lighting lamp / Arbor press
Models on this page
LED-WL20LED-WLM20LED-WM20LED-WNL20LED-WNLM20LED-WNM20LED-WNS20LED-WS20No.0No.1No.2No.3No.5
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
LED-W Series Water-Proof LED Lighting Lamp
LED-W · Taiwan
| type | arm_length | voltage |
|---|---|---|
| LED-WL20 | 415 x 400 | 110V-220V or DC12V or DC24V |
| LED-WLM20 | 415 x 280 | 110V-220V or DC12V or DC24V |
| LED-WM20 | 225 x 280 | 110V-220V or DC12V or DC24V |
| LED-WS20 | — | 110V-220V or DC12V or DC24V |
| Code | Model |
|---|---|
| on request | LED-WL20 |
| on request | LED-WLM20 |
| on request | LED-WM20 |
| on request | LED-WS20 |
* DC24V, 12V (No polarity)
LED-WN Series Water-Proof LED Lighting Lamp
LED-WN · Taiwan
| type | arm_length | voltage |
|---|---|---|
| LED-WNL20 | 400 x 400 | DC12V or DC24V |
| LED-WNLM20 | 400 x 220 | DC12V or DC24V |
| LED-WNM20 | 220 x 220 | DC12V or DC24V |
| LED-WNS20 | — | DC12V or DC24V |
| Code | Model |
|---|---|
| on request | LED-WNL20 |
| on request | LED-WNLM20 |
| on request | LED-WNM20 |
| on request | LED-WNS20 |
* DC24V, 12V (No polarity)
Arbor Press
Taiwan
- STANDARD TYPE: All main parts made of ductile cast iron.
- STANDARD TYPE: Adjustable handle gives convenient handle positioning.
- STANDARD TYPE: Ram finite control by smooth gears.
- STANDARD TYPE: 4-90 degree equally divided slotted round table.
- RATCHET LEVERS TYPE: This arbor press with all standard's feature. But operated with a ratchet device that will permit you to use the lever in the most convenient position, the lever has a counterweight for quick return after which the down stroke handwheel will advance the ram to the work quickly.
| model_no | overall_height | stroke | base | arbor |
|---|---|---|---|---|
| No.0 | 254 mm (10") | 114 mm | 102 x 214 mm | 19 x 19 x 190 |
| No.1 | 305 mm (12") | 133 mm | 127 x 273 mm | 25 x 25 x 228 |
| No.2 | 432 mm (17") | 215 mm | 162 x 432 mm | 32 x 32 x 335 |
| No.3 | 546 mm (21") | 317 mm | 216 x 457 mm | 38 x 38 x 456 |
| No.5 | 860 mm (34") | 460 mm | 250 x 660 mm | 45 x 45 x 670 |
| Code | Model |
|---|---|
| on request | No.0 |
| on request | No.1 |
| on request | No.2 |
| on request | No.3 |
| on request | No.5 |
REMARK - Ratchet Type Arbor Press available - No.2/3/5 only
