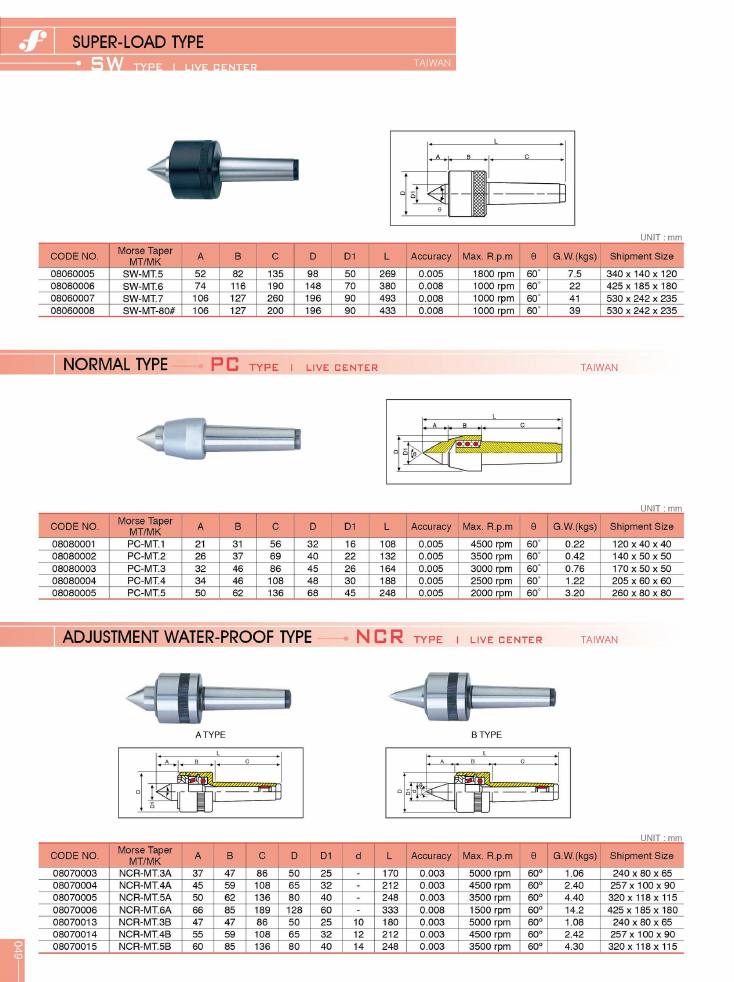

Frejoth accessory catalogue · Page 49

Live center

Models on this page

NCR-MT.3ANCR-MT.3BNCR-MT.4ANCR-MT.4BNCR-MT.5ANCR-MT.5BNCR-MT.6APC-MT.1PC-MT.2PC-MT.3PC-MT.4PC-MT.5SW-MT-80#SW-MT.5SW-MT.6SW-MT.7

Send us your details and we'll come back with pricing, availability and specifications.

SW · Taiwan

sw_type_specifications (mm)
code_no	morse_taper_mt_mk	A	B	C	D	D1	L	accuracy	max_rpm	theta	g_w_kgs	shipment_size
08060005	SW-MT.5	52	82	135	98	50	269	0.005	1800 rpm	60°	7.5	340 x 140 x 120
08060006	SW-MT.6	74	116	190	148	70	380	0.008	1000 rpm	60°	22	425 x 185 x 180
08060007	SW-MT.7	106	127	260	196	90	493	0.008	1000 rpm	60°	41	530 x 242 x 235
08060008	SW-MT-80#	106	127	200	196	90	433	0.008	1000 rpm	60°	39	530 x 242 x 235

PC · Taiwan

pc_type_specifications (mm)
code_no	morse_taper_mt_mk	A	B	C	D	D1	L	accuracy	max_rpm	theta	g_w_kgs	shipment_size
08080001	PC-MT.1	21	31	56	32	16	108	0.005	4500 rpm	60°	0.22	120 x 40 x 40
08080002	PC-MT.2	26	37	69	40	22	132	0.005	3500 rpm	60°	0.42	140 x 50 x 50
08080003	PC-MT.3	32	46	86	45	26	164	0.005	3000 rpm	60°	0.76	170 x 50 x 50
08080004	PC-MT.4	34	46	108	48	30	188	0.005	2500 rpm	60°	1.22	205 x 60 x 60
08080005	PC-MT.5	50	62	136	68	45	248	0.005	2000 rpm	60°	3.2	260 x 80 x 80

NCR · Taiwan

ncr_type_specifications (mm)
code_no	morse_taper_mt_mk	A	B	C	D	D1	d	L	accuracy	max_rpm	theta	g_w_kgs	shipment_size
08070003	NCR-MT.3A	37	47	86	50	25	—	170	0.003	5000 rpm	60°	1.06	240 x 80 x 65
08070004	NCR-MT.4A	45	59	108	65	32	—	212	0.003	4500 rpm	60°	2.4	257 x 100 x 90
08070005	NCR-MT.5A	50	62	136	80	40	—	248	0.003	3500 rpm	60°	4.4	320 x 118 x 115
08070006	NCR-MT.6A	66	85	189	128	60	—	333	0.008	1500 rpm	60°	14.2	425 x 185 x 180
08070013	NCR-MT.3B	47	47	86	50	25	10	180	0.003	5000 rpm	60°	1.08	240 x 80 x 65
08070014	NCR-MT.4B	55	59	108	65	32	12	212	0.003	4500 rpm	60°	2.42	257 x 100 x 90
08070015	NCR-MT.5B	60	85	136	80	40	14	248	0.003	3500 rpm	60°	4.3	320 x 118 x 115

Two body styles illustrated: A TYPE and B TYPE. B-type models carry an extra 'd' dimension; A-type rows print '-' for it.
