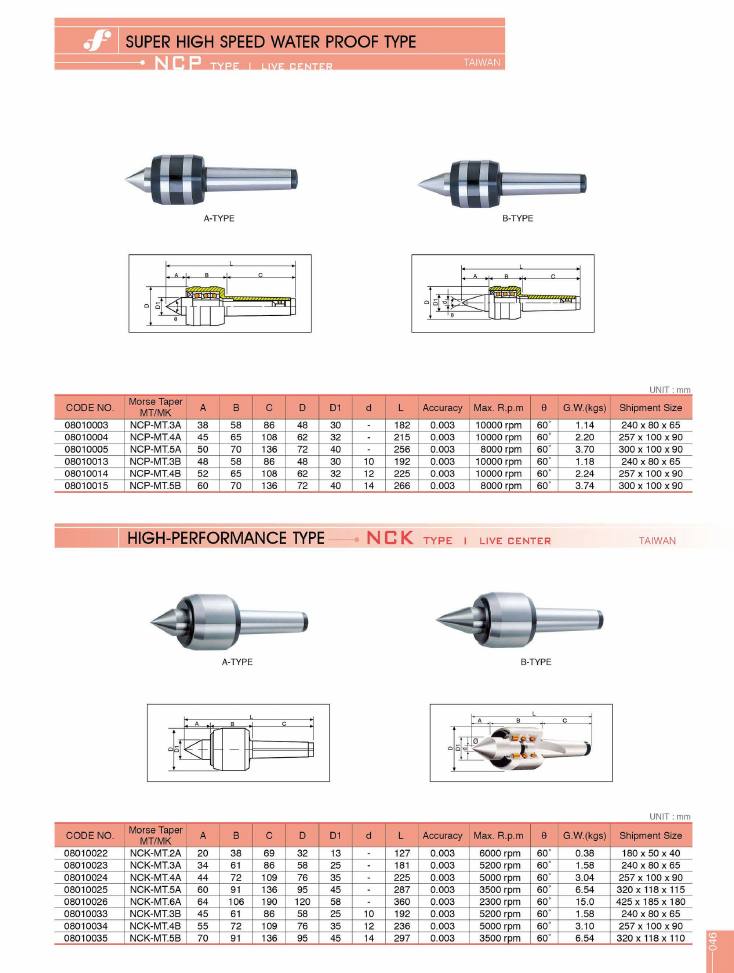

Frejoth accessory catalogue · Page 46

Live centre

Models on this page

NCK-MT.2ANCK-MT.3ANCK-MT.3BNCK-MT.4ANCK-MT.4BNCK-MT.5ANCK-MT.5BNCK-MT.6ANCP-MT.3ANCP-MT.3BNCP-MT.4ANCP-MT.4BNCP-MT.5ANCP-MT.5B

Send us your details and we'll come back with pricing, availability and specifications.

NCP · Taiwan

ncp_live_center_specifications (mm)
code_no	morse_taper_mt_mk	A	B	C	D	D1	d	L	accuracy	max_rpm	theta	g_w_kgs	shipment_size
08010003	NCP-MT.3A	38	58	86	48	30	—	182	0.003	10000 rpm	60°	1.14	240 x 80 x 65
08010004	NCP-MT.4A	45	65	108	62	32	—	215	0.003	10000 rpm	60°	2.2	257 x 100 x 90
08010005	NCP-MT.5A	50	70	136	72	40	—	256	0.003	8000 rpm	60°	3.7	300 x 100 x 90
08010013	NCP-MT.3B	48	58	86	48	30	10	192	0.003	10000 rpm	60°	1.18	240 x 80 x 65
08010014	NCP-MT.4B	52	65	108	62	32	12	225	0.003	10000 rpm	60°	2.24	257 x 100 x 90
08010015	NCP-MT.5B	60	70	136	72	40	14	266	0.003	8000 rpm	60°	3.74	300 x 100 x 90

Available in A-TYPE and B-TYPE; B-TYPE has the extra 'd' bore dimension.

NCK · Taiwan

nck_live_center_specifications (mm)
code_no	morse_taper_mt_mk	A	B	C	D	D1	d	L	accuracy	max_rpm	theta	g_w_kgs	shipment_size
08010022	NCK-MT.2A	20	38	69	32	13	—	127	0.003	6000 rpm	60°	0.38	180 x 50 x 40
08010023	NCK-MT.3A	34	61	86	58	25	—	181	0.003	5200 rpm	60°	1.58	240 x 80 x 65
08010024	NCK-MT.4A	44	72	109	76	35	—	225	0.003	5000 rpm	60°	3.04	257 x 100 x 90
08010025	NCK-MT.5A	60	91	136	95	45	—	287	0.003	3500 rpm	60°	6.54	320 x 118 x 115
08010026	NCK-MT.6A	64	106	190	120	58	—	360	0.003	2300 rpm	60°	15	425 x 185 x 180
08010033	NCK-MT.3B	45	61	86	58	25	10	192	0.003	5200 rpm	60°	1.58	240 x 80 x 65
08010034	NCK-MT.4B	55	72	109	76	35	12	236	0.003	5000 rpm	60°	3.1	257 x 100 x 90
08010035	NCK-MT.5B	70	91	136	95	45	14	297	0.003	3500 rpm	60°	6.54	320 x 118 x 110

Available in A-TYPE and B-TYPE; B-TYPE has the extra 'd' bore dimension.
