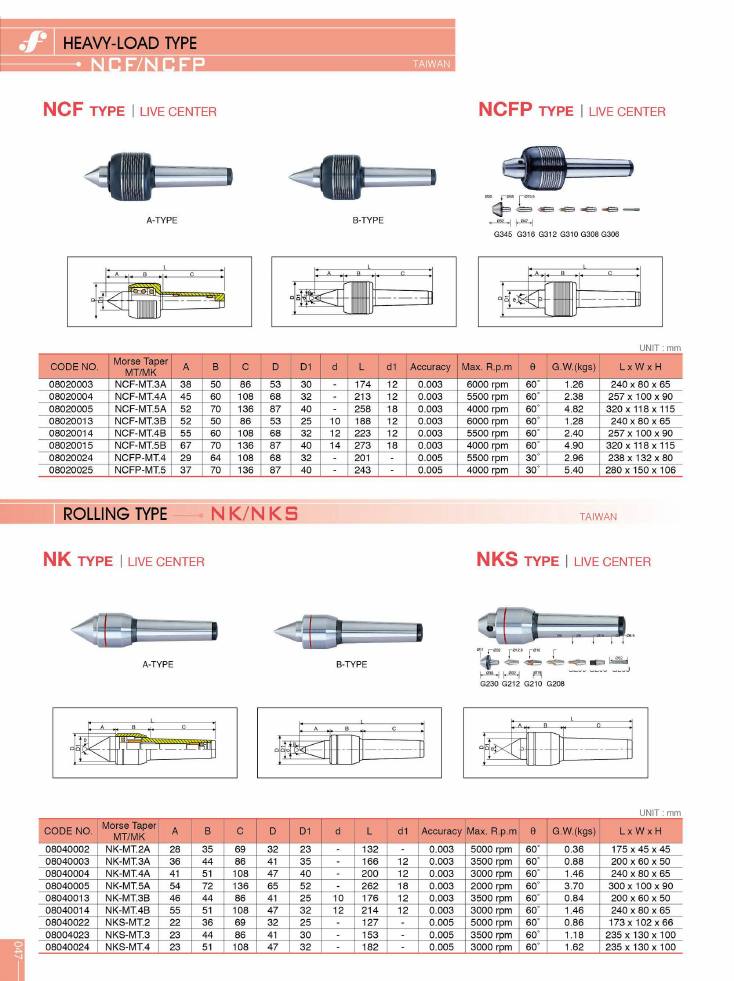

Frejoth accessory catalogue · Page 47

Live centres — heavy-load type NCF/NCFP and rolling type NK/NKS

Models on this page

NCF-MT.3ANCF-MT.3BNCF-MT.4ANCF-MT.4BNCF-MT.5ANCF-MT.5BNCFP-MT.4NCFP-MT.5NK-MT.2ANK-MT.3ANK-MT.3BNK-MT.4ANK-MT.4BNK-MT.5ANKS-MT.2NKS-MT.3NKS-MT.4

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Heavy-Load Type Live Centre — NCF / NCFP

NCF/NCFP · Taiwan

ncf_ncfp_live_centre_specifications (mm)
code_no	morse_taper_mt_mk	a	b	c	d	d1	d_lower	l	d1_lower	accuracy	max_rpm	theta	g_w_kgs	l_x_w_x_h
08020003	NCF-MT.3A	38	50	86	53	30	—	174	12	0.003	6000	60°	1.26	240 x 80 x 65
08020004	NCF-MT.4A	45	60	108	68	32	—	213	12	0.003	5500	60°	2.38	257 x 100 x 90
08020005	NCF-MT.5A	52	70	136	87	40	—	258	18	0.003	4000	60°	4.82	320 x 118 x 115
08020013	NCF-MT.3B	52	50	86	53	25	10	188	12	0.003	6000	60°	1.28	240 x 80 x 65
08020014	NCF-MT.4B	55	60	108	68	32	12	223	12	0.003	5500	60°	2.4	257 x 100 x 90
08020015	NCF-MT.5B	67	70	136	87	40	14	273	18	0.003	4000	60°	4.9	320 x 118 x 115
08020024	NCFP-MT.4	29	64	108	68	32	—	201	—	0.005	5500	30°	2.96	238 x 132 x 80
08020025	NCFP-MT.5	37	70	136	87	40	—	243	—	0.005	4000	30°	5.4	280 x 150 x 106

Order references
Code	Model
08020003	NCF-MT.3A
08020004	NCF-MT.4A
08020005	NCF-MT.5A
08020013	NCF-MT.3B
08020014	NCF-MT.4B
08020015	NCF-MT.5B

NCF type shown in A-TYPE and B-TYPE forms. NCFP type is supplied with interchangeable points; the point set is labelled G345, G316, G312, G310, G308, G306 on the illustration.

Rolling Type Live Centre — NK / NKS

NK/NKS · Taiwan

nk_nks_live_centre_specifications (mm)
code_no	morse_taper_mt_mk	a	b	c	d	d1	d_lower	l	d1_lower	accuracy	max_rpm	theta	g_w_kgs	l_x_w_x_h
08040002	NK-MT.2A	28	35	69	32	23	—	132	—	0.003	5000	60°	0.36	175 x 45 x 45
08040003	NK-MT.3A	36	44	86	41	35	—	166	12	0.003	3500	60°	0.88	200 x 60 x 50
08040004	NK-MT.4A	41	51	108	47	40	—	200	12	0.003	3000	60°	1.46	240 x 80 x 65
08040005	NK-MT.5A	54	72	136	65	52	—	262	18	0.003	2000	60°	3.7	300 x 100 x 90
08040013	NK-MT.3B	46	44	86	41	25	10	176	12	0.003	3500	60°	0.84	200 x 60 x 50
08040014	NK-MT.4B	55	51	108	47	32	12	214	12	0.003	3000	60°	1.46	240 x 80 x 65
08040022	NKS-MT.2	22	36	69	32	25	—	127	—	0.005	5000	60°	0.86	173 x 102 x 66
08004023	NKS-MT.3	23	44	86	41	30	—	153	—	0.005	3500	60°	1.18	235 x 130 x 100
08040024	NKS-MT.4	23	51	108	47	32	—	182	—	0.005	3000	60°	1.62	235 x 130 x 100

Order references
Code	Model
08040002	NK-MT.2A
08040003	NK-MT.3A
08040004	NK-MT.4A
08040005	NK-MT.5A
08040013	NK-MT.3B
08040014	NK-MT.4B

NK type shown in A-TYPE and B-TYPE forms. NKS type is supplied with interchangeable points; the point set is labelled G230, G212, G210, G208 on the illustration (further labels in that illustration are obscured by an overlapping image).

Heavy-Load Type Live Centre with Interchangeable Points (NCFP)

Order references
Code	Model
08020024	NCFP-MT.4
08020025	NCFP-MT.5

Rolling Type Live Centre with Interchangeable Points (NKS)

Order references
Code	Model
08040022	NKS-MT.2
08004023	NKS-MT.3
08040024	NKS-MT.4
