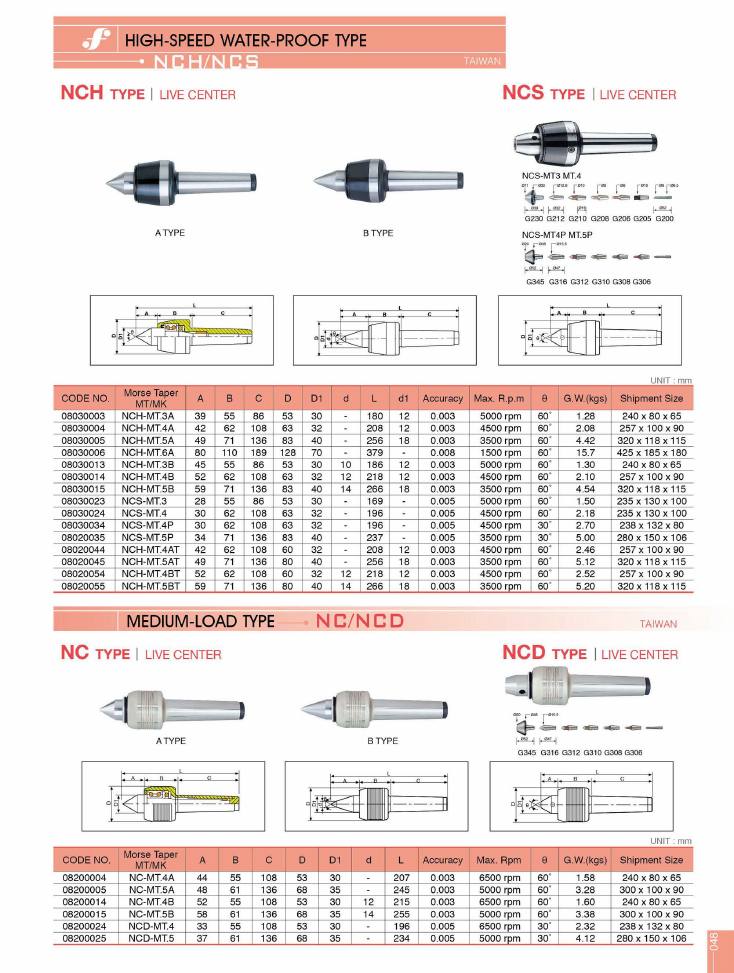

Frejoth accessory catalogue · Page 48

Live centres — high-speed water-proof type NCH/NCS and medium-load type NC/NCD

Models on this page

NC-MT.4ANC-MT.4BNC-MT.5ANC-MT.5BNCD-MT.4NCD-MT.5NCH-MT.3ANCH-MT.3BNCH-MT.4ANCH-MT.4ATNCH-MT.4BNCH-MT.4BTNCH-MT.5ANCH-MT.5ATNCH-MT.5BNCH-MT.5BTNCH-MT.6ANCS-MT.3NCS-MT.4NCS-MT.4PNCS-MT.5P

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

High-Speed Water-Proof Type Live Centre — NCH / NCS

NCH/NCS · Taiwan

nch_ncs_live_centre_specifications (mm)
code_no	morse_taper_mt_mk	a	b	c	d	d1	d_lower	l	d1_lower	accuracy	max_rpm	theta	g_w_kgs	shipment_size
08030003	NCH-MT.3A	39	55	86	53	30	—	180	12	0.003	5000	60°	1.28	240 x 80 x 65
08030004	NCH-MT.4A	42	62	108	63	32	—	208	12	0.003	4500	60°	2.08	257 x 100 x 90
08030005	NCH-MT.5A	49	71	136	83	40	—	256	18	0.003	3500	60°	4.42	320 x 118 x 115
08030006	NCH-MT.6A	80	110	189	128	70	—	379	—	0.008	1500	60°	15.7	425 x 185 x 180
08030013	NCH-MT.3B	45	55	86	53	30	10	186	12	0.003	5000	60°	1.3	240 x 80 x 65
08030014	NCH-MT.4B	52	62	108	63	32	12	218	12	0.003	4500	60°	2.1	257 x 100 x 90
08030015	NCH-MT.5B	59	71	136	83	40	14	266	18	0.003	3500	60°	4.54	320 x 118 x 115
08030023	NCS-MT.3	28	55	86	53	30	—	169	—	0.005	5000	60°	1.5	235 x 130 x 100
08030024	NCS-MT.4	30	62	108	63	32	—	196	—	0.005	4500	60°	2.18	235 x 130 x 100
08030034	NCS-MT.4P	30	62	108	63	32	—	196	—	0.005	4500	30°	2.7	238 x 132 x 80
08020035	NCS-MT.5P	34	71	136	83	40	—	237	—	0.005	3500	30°	5	280 x 150 x 106
08020044	NCH-MT.4AT	42	62	108	60	32	—	208	12	0.003	4500	60°	2.46	257 x 100 x 90
08020045	NCH-MT.5AT	49	71	136	80	40	—	256	18	0.003	3500	60°	5.12	320 x 118 x 115
08020054	NCH-MT.4BT	52	62	108	60	32	12	218	12	0.003	4500	60°	2.52	257 x 100 x 90
08020055	NCH-MT.5BT	59	71	136	80	40	14	266	18	0.003	3500	60°	5.2	320 x 118 x 115

Order references
Code	Model
08030003	NCH-MT.3A
08030004	NCH-MT.4A
08030005	NCH-MT.5A
08030006	NCH-MT.6A
08030013	NCH-MT.3B
08030014	NCH-MT.4B
08030015	NCH-MT.5B
08020044	NCH-MT.4AT
08020045	NCH-MT.5AT
08020054	NCH-MT.4BT
08020055	NCH-MT.5BT

NCH type shown in A TYPE and B TYPE forms. NCS type takes interchangeable points: NCS-MT3 / MT.4 points are labelled G230, G212, G210, G208, G206, G205, G200; NCS-MT4P / MT.5P points are labelled G345, G316, G312, G310, G308, G306.

Medium-Load Type Live Centre — NC / NCD

NC/NCD · Taiwan

nc_ncd_live_centre_specifications (mm)
code_no	morse_taper_mt_mk	a	b	c	d	d1	d_lower	l	accuracy	max_rpm	theta	g_w_kgs	shipment_size
08200004	NC-MT.4A	44	55	108	53	30	—	207	0.003	6500	60°	1.58	240 x 80 x 65
08200005	NC-MT.5A	48	61	136	68	35	—	245	0.003	5000	60°	3.28	300 x 100 x 90
08200014	NC-MT.4B	52	55	108	53	30	12	215	0.003	6500	60°	1.6	240 x 80 x 65
08200015	NC-MT.5B	58	61	136	68	35	14	255	0.003	5000	60°	3.38	300 x 100 x 90
08200024	NCD-MT.4	33	55	108	53	30	—	196	0.005	6500	30°	2.32	238 x 132 x 80
08200025	NCD-MT.5	37	61	136	68	35	—	234	0.005	5000	30°	4.12	280 x 150 x 106

Order references
Code	Model
08200004	NC-MT.4A
08200005	NC-MT.5A
08200014	NC-MT.4B
08200015	NC-MT.5B

NC type shown in A TYPE and B TYPE forms. NCD type takes interchangeable points labelled G345, G316, G312, G310, G308, G306.

High-Speed Water-Proof Live Centre with Interchangeable Points (NCS)

Order references
Code	Model
08030023	NCS-MT.3
08030024	NCS-MT.4

High-Speed Water-Proof Live Centre with Interchangeable Points (NCS-P)

Order references
Code	Model
08030034	NCS-MT.4P
08020035	NCS-MT.5P

Medium-Load Type Live Centre with Interchangeable Points (NCD)

Order references
Code	Model
08200024	NCD-MT.4
08200025	NCD-MT.5
