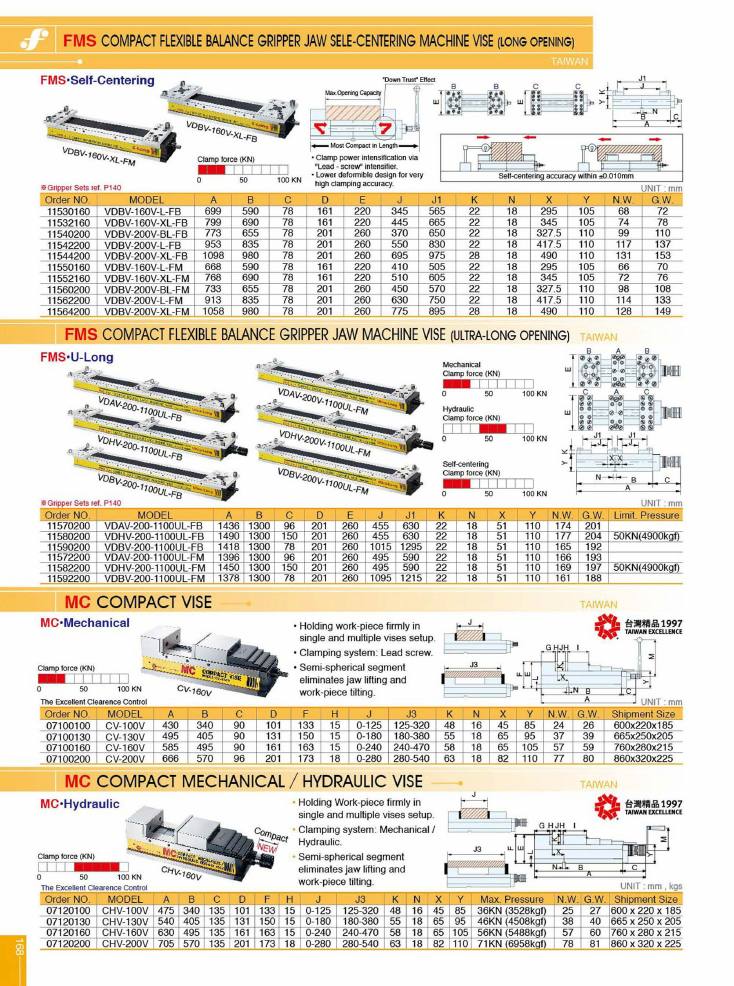

Frejoth accessory catalogue · Page 168

Machine vise

Models on this page

CHV-100VCHV-130VCHV-160VCHV-200VCV-100VCV-130VCV-160VCV-200VVDAV-200-1100UL-FBVDAV-200-1100UL-FMVDBV-160V-L-FBVDBV-160V-L-FMVDBV-160V-XL-FBVDBV-160V-XL-FMVDBV-200-1100UL-FBVDBV-200-1100UL-FMVDBV-200V-BL-FBVDBV-200V-BL-FMVDBV-200V-L-FBVDBV-200V-L-FMVDBV-200V-XL-FBVDBV-200V-XL-FMVDHV-200-1100UL-FBVDHV-200-1100UL-FM

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

FMS Compact Flexible Balance Gripper Jaw Sele-Centering Machine Vise (Long Opening)

FMS·Self-Centering · Taiwan

Clamp power intensification via "Lead - screw" intensifier.
Lower deformible design for very high clamping accuracy.

dimensions (mm)
order_no	model	A	B	C	D	E	J	J1	K	N	X	Y	nw_kg	gw_kg
11530160	VDBV-160V-L-FB	699	590	78	161	220	345	565	22	18	295	105	68	72
11532160	VDBV-160V-XL-FB	799	690	78	161	220	445	665	22	18	345	105	74	78
11540200	VDBV-200V-BL-FB	773	655	78	201	260	370	650	22	18	327.5	110	99	110
11542200	VDBV-200V-L-FB	953	835	78	201	260	550	830	22	18	417.5	110	117	137
11544200	VDBV-200V-XL-FB	1098	980	78	201	260	695	975	28	18	490	110	131	153
11550160	VDBV-160V-L-FM	668	590	78	161	220	410	505	22	18	295	105	66	70
11552160	VDBV-160V-XL-FM	768	690	78	161	220	510	605	22	18	345	105	72	76
11560200	VDBV-200V-BL-FM	733	655	78	201	260	450	570	22	18	327.5	110	98	108
11562200	VDBV-200V-L-FM	913	835	78	201	260	630	750	22	18	417.5	110	114	133
11564200	VDBV-200V-XL-FM	1058	980	78	201	260	775	895	28	18	490	110	128	149

Order references
Code	Model
11530160	VDBV-160V-L-FB
11532160	VDBV-160V-XL-FB
11540200	VDBV-200V-BL-FB
11542200	VDBV-200V-L-FB
11544200	VDBV-200V-XL-FB
11550160	VDBV-160V-L-FM
11552160	VDBV-160V-XL-FM
11560200	VDBV-200V-BL-FM
11562200	VDBV-200V-L-FM
11564200	VDBV-200V-XL-FM

Diagram annotations: "Down Trust" Effect; Max. Opening Capacity; Most Compact In Length; Self-centering accuracy within ±0.010mm. Clamp force bar graph on a 0-100 KN scale. ※Gripper Sets ref. P140. Unit: mm.

FMS Compact Flexible Balance Gripper Jaw Machine Vise (Ultra-Long Opening)

FMS·U-Long · Taiwan

dimensions (mm)
order_no	model	A	B	C	D	E	J	J1	K	N	X	Y	nw_kg	gw_kg	limit_pressure
11570200	VDAV-200-1100UL-FB	1436	1300	96	201	260	455	630	22	18	51	110	174	201	—
11580200	VDHV-200-1100UL-FB	1490	1300	150	201	260	455	630	22	18	51	110	177	204	50KN(4900kgf)
11590200	VDBV-200-1100UL-FB	1418	1300	78	201	260	1015	1295	22	18	51	110	165	192	—
11572200	VDAV-200-1100UL-FM	1396	1300	96	201	260	495	590	22	18	51	110	166	193	—
11582200	VDHV-200-1100UL-FM	1450	1300	150	201	260	495	590	22	18	51	110	169	197	50KN(4900kgf)
11592200	VDBV-200-1100UL-FM	1378	1300	78	201	260	1095	1215	22	18	51	110	161	188	—

Order references
Code	Model
11570200	VDAV-200-1100UL-FB
11580200	VDHV-200-1100UL-FB
11590200	VDBV-200-1100UL-FB
11572200	VDAV-200-1100UL-FM
11582200	VDHV-200-1100UL-FM
11592200	VDBV-200-1100UL-FM

Three clamp force bar graphs printed on 0-100 KN scales, labelled Mechanical, Hydraulic and Self-centering. ※Gripper Sets ref. P140. Unit: mm.

MC Compact Vise

MC·Mechanical · Taiwan

Holding work-piece firmly in single and multiple vises setup.
Clamping system: Lead screw.
Semi-spherical segment eliminates jaw lifting and work-piece tilting.

dimensions (mm)
order_no	model	A	B	C	D	F	H	J	J3	K	N	X	Y	nw_kg	gw_kg	shipment_size
07100100	CV-100V	430	340	90	101	133	15	0-125	125-320	48	16	45	85	24	26	600x220x185
07100130	CV-130V	495	405	90	131	150	15	0-180	180-380	55	18	65	95	37	39	665x250x205
07100160	CV-160V	585	495	90	161	163	15	0-240	240-470	58	18	65	105	57	59	760x280x215
07100200	CV-200V	666	570	96	201	173	18	0-280	280-540	63	18	82	110	77	80	860x320x225

Order references
Code	Model
07100100	CV-100V
07100130	CV-130V
07100160	CV-160V
07100200	CV-200V

Pictured model CV-160V. Marked "The Excellent Clearence Control" (as printed). Taiwan Excellence 1997 award mark. Clamp force bar graph on a 0-100 KN scale. Unit: mm.

MC Compact Mechanical / Hydraulic Vise

MC·Hydraulic · Taiwan

Holding Work-piece firmly in single and multiple vises setup.
Clamping system: Mechanical / Hydraulic.
Semi-spherical segment eliminates jaw lifting and work-piece tilting.

dimensions (mm)
order_no	model	A	B	C	D	F	H	J	J3	K	N	X	Y	max_pressure	nw_kg	gw_kg	shipment_size
07120100	CHV-100V	475	340	135	101	133	15	0-125	125-320	48	16	45	85	36KN (3528kgf)	25	27	600 x 220 x 185
07120130	CHV-130V	540	405	135	131	150	15	0-180	180-380	55	18	65	95	46KN (4508kgf)	38	40	665 x 250 x 205
07120160	CHV-160V	630	495	135	161	163	15	0-240	240-470	58	18	65	105	56KN (5488kgf)	57	60	760 x 280 x 215
07120200	CHV-200V	705	570	135	201	173	18	0-280	280-540	63	18	82	110	71KN (6958kgf)	78	81	860 x 320 x 225

Order references
Code	Model
07120100	CHV-100V
07120130	CHV-130V
07120160	CHV-160V
07120200	CHV-200V

Pictured model CHV-160V, marked Compact / NEW. Marked "The Excellent Clearence Control" (as printed). Taiwan Excellence 1997 award mark. Clamp force bar graph on a 0-100 KN scale. Unit: mm, kgs.
