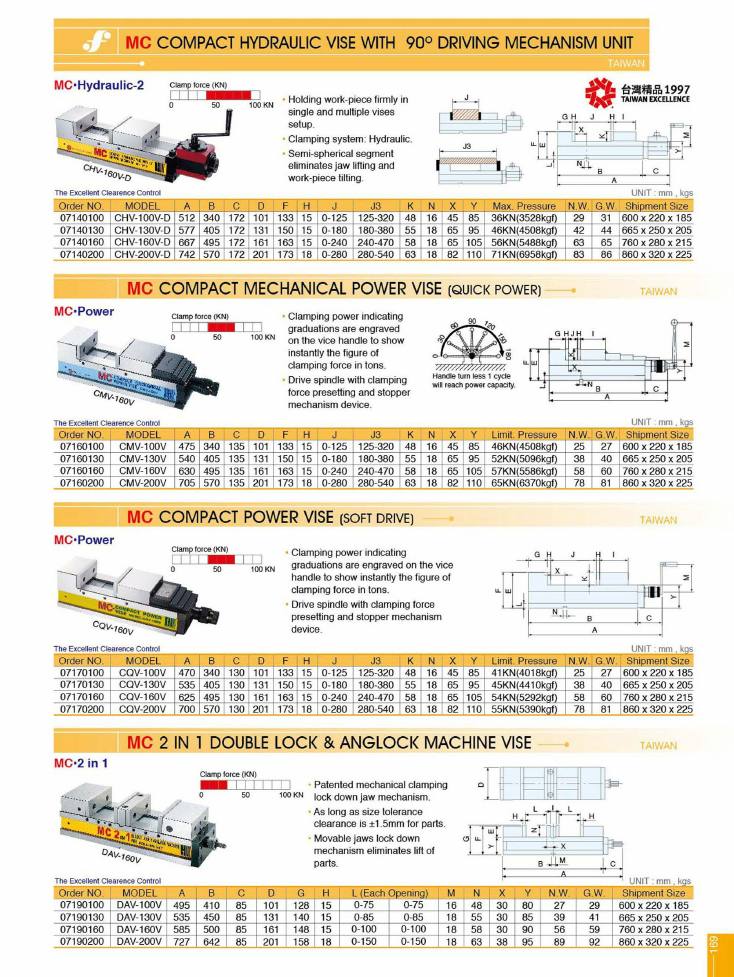

Frejoth accessory catalogue · Page 169
Machine vise
Models on this page
CHV-100V-DCHV-130V-DCHV-160V-DCHV-200V-DCMV-100VCMV-130VCMV-160VCMV-200VCQV-100VCQV-130VCQV-160VCQV-200VDAV-100VDAV-130VDAV-160VDAV-200V
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
MC Compact Hydraulic Vise with 90° Driving Mechanism Unit
MC·Hydraulic-2 · Taiwan
- Holding work-piece firmly in single and multiple vises setup.
- Clamping system: Hydraulic.
- Semi-spherical segment eliminates jaw lifting and work-piece tilting.
| order_no | model | A | B | C | D | F | H | J | J3 | K | N | X | Y | max_pressure | nw_kg | gw_kg | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07140100 | CHV-100V-D | 512 | 340 | 172 | 101 | 133 | 15 | 0-125 | 125-320 | 48 | 16 | 45 | 85 | 36KN(3528kgf) | 29 | 31 | 600 x 220 x 185 |
| 07140130 | CHV-130V-D | 577 | 405 | 172 | 131 | 150 | 15 | 0-180 | 180-380 | 55 | 18 | 65 | 95 | 46KN(4508kgf) | 42 | 44 | 665 x 250 x 205 |
| 07140160 | CHV-160V-D | 667 | 495 | 172 | 161 | 163 | 15 | 0-240 | 240-470 | 58 | 18 | 65 | 105 | 56KN(5488kgf) | 63 | 65 | 760 x 280 x 215 |
| 07140200 | CHV-200V-D | 742 | 570 | 172 | 201 | 173 | 18 | 0-280 | 280-540 | 63 | 18 | 82 | 110 | 71KN(6958kgf) | 83 | 86 | 860 x 320 x 225 |
| Code | Model |
|---|---|
| 07140100 | CHV-100V-D |
| 07140130 | CHV-130V-D |
| 07140160 | CHV-160V-D |
| 07140200 | CHV-200V-D |
Pictured model CHV-160V-D. Marked "The Excellent Clearence Control" (as printed). Taiwan Excellence 1997 award mark. Clamp force bar graph on a 0-100 KN scale. Unit: mm, kgs.
MC Compact Mechanical Power Vise (Quick Power)
MC·Power · Taiwan
- Clamping power indicating graduations are engraved on the vice handle to show instantly the figure of clamping force in tons.
- Drive spindle with clamping force presetting and stopper mechanism device.
| order_no | model | A | B | C | D | F | H | J | J3 | K | N | X | Y | limit_pressure | nw_kg | gw_kg | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07160100 | CMV-100V | 475 | 340 | 135 | 101 | 133 | 15 | 0-125 | 125-320 | 48 | 16 | 45 | 85 | 46KN(4508kgf) | 25 | 27 | 600 x 220 x 185 |
| 07160130 | CMV-130V | 540 | 405 | 135 | 131 | 150 | 15 | 0-180 | 180-380 | 55 | 18 | 65 | 95 | 52KN(5096kgf) | 38 | 40 | 665 x 250 x 205 |
| 07160160 | CMV-160V | 630 | 495 | 135 | 161 | 163 | 15 | 0-240 | 240-470 | 58 | 18 | 65 | 105 | 57KN(5586kgf) | 58 | 60 | 760 x 280 x 215 |
| 07160200 | CMV-200V | 705 | 570 | 135 | 201 | 173 | 18 | 0-280 | 280-540 | 63 | 18 | 82 | 110 | 65KN(6370kgf) | 78 | 81 | 860 x 320 x 225 |
| Code | Model |
|---|---|
| 07160100 | CMV-100V |
| 07160130 | CMV-130V |
| 07160160 | CMV-160V |
| 07160200 | CMV-200V |
Pictured model CMV-160V. Handle dial diagram graduated 0/30/60/90/120/150/180 with the note "Handle turn less 1 cycle will reach power capacity." Marked "The Excellent Clearence Control" (as printed). Clamp force bar graph on a 0-100 KN scale. Unit: mm, kgs.
MC Compact Power Vise (Soft Drive)
MC·Power · Taiwan
- Clamping power indicating graduations are engraved on the vice handle to show instantly the figure of clamping force in tons.
- Drive spindle with clamping force presetting and stopper mechanism device.
| order_no | model | A | B | C | D | F | H | J | J3 | K | N | X | Y | limit_pressure | nw_kg | gw_kg | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07170100 | CQV-100V | 470 | 340 | 130 | 101 | 133 | 15 | 0-125 | 125-320 | 48 | 16 | 45 | 85 | 41KN(4018kgf) | 25 | 27 | 600 x 220 x 185 |
| 07170130 | CQV-130V | 535 | 405 | 130 | 131 | 150 | 15 | 0-180 | 180-380 | 55 | 18 | 65 | 95 | 45KN(4410kgf) | 38 | 40 | 665 x 250 x 205 |
| 07170160 | CQV-160V | 625 | 495 | 130 | 161 | 163 | 15 | 0-240 | 240-470 | 58 | 18 | 65 | 105 | 54KN(5292kgf) | 58 | 60 | 760 x 280 x 215 |
| 07170200 | CQV-200V | 700 | 570 | 130 | 201 | 173 | 18 | 0-280 | 280-540 | 63 | 18 | 82 | 110 | 55KN(5390kgf) | 78 | 81 | 860 x 320 x 225 |
| Code | Model |
|---|---|
| 07170100 | CQV-100V |
| 07170130 | CQV-130V |
| 07170160 | CQV-160V |
| 07170200 | CQV-200V |
Pictured model CQV-160V. Marked "The Excellent Clearence Control" (as printed). Clamp force bar graph on a 0-100 KN scale. Unit: mm, kgs.
MC 2 in 1 Double Lock & Anglock Machine Vise
MC·2 in 1 · Taiwan
- Patented mechanical clamping lock down jaw mechanism.
- As long as size tolerance clearance is ±1.5mm for parts.
- Movable jaws lock down mechanism eliminates lift of parts.
| order_no | model | A | B | C | D | G | H | l_each_opening_1 | l_each_opening_2 | M | N | X | Y | nw_kg | gw_kg | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07190100 | DAV-100V | 495 | 410 | 85 | 101 | 128 | 15 | 0-75 | 0-75 | 16 | 48 | 30 | 80 | 27 | 29 | 600 x 220 x 185 |
| 07190130 | DAV-130V | 535 | 450 | 85 | 131 | 140 | 15 | 0-85 | 0-85 | 18 | 55 | 30 | 85 | 39 | 41 | 665 x 250 x 205 |
| 07190160 | DAV-160V | 585 | 500 | 85 | 161 | 148 | 15 | 0-100 | 0-100 | 18 | 58 | 30 | 90 | 56 | 59 | 760 x 280 x 215 |
| 07190200 | DAV-200V | 727 | 642 | 85 | 201 | 158 | 18 | 0-150 | 0-150 | 18 | 63 | 38 | 95 | 89 | 92 | 860 x 320 x 225 |
| Code | Model |
|---|---|
| 07190100 | DAV-100V |
| 07190130 | DAV-130V |
| 07190160 | DAV-160V |
| 07190200 | DAV-200V |
Pictured model DAV-160V. Marked "The Excellent Clearence Control" (as printed). Clamp force bar graph on a 0-100 KN scale. Unit: mm, kgs.
