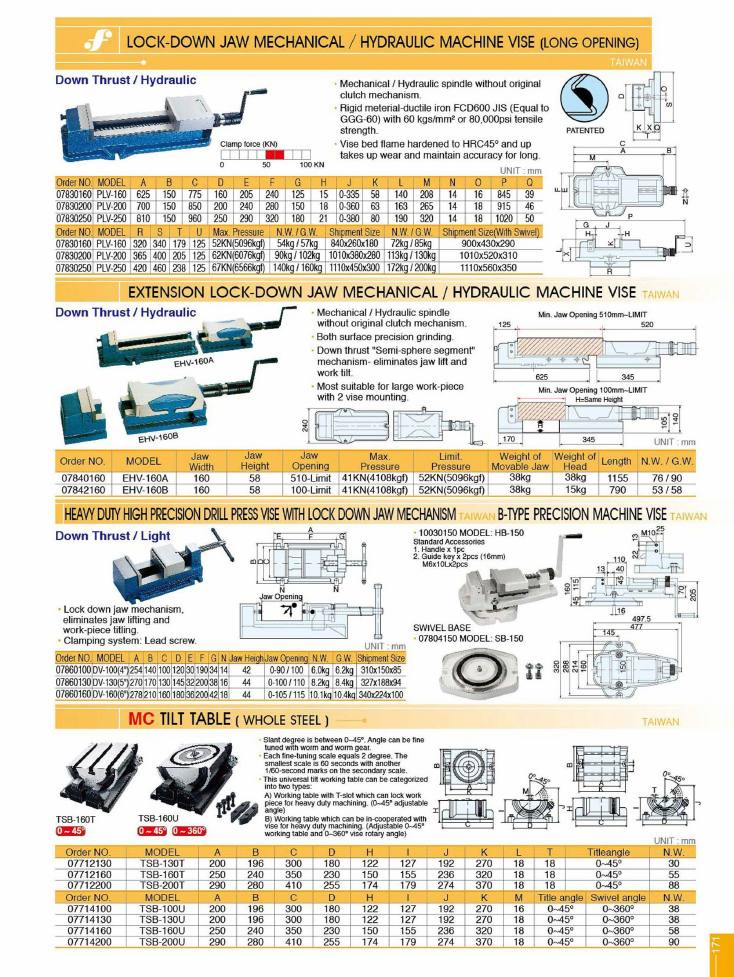

Frejoth accessory catalogue · Page 171
Machine vise
Models on this page
DV-100(4")DV-130(5")DV-160(6")EHV-160AEHV-160BHB-150PLV-160PLV-200PLV-250SB-150TSB-100UTSB-130TTSB-130UTSB-160TTSB-160UTSB-200TTSB-200U
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Lock-Down Jaw Mechanical / Hydraulic Machine Vise (Long Opening)
Down Thrust / Hydraulic · Taiwan
- Mechanical / Hydraulic spindle without original clutch mechanism.
- Rigid meterial-ductile iron FCD600 JIS (Equal to GGG-60) with 60 kgs/mm² or 80,000psi tensile strength.
- Vise bed flame hardened to HRC45° and up takes up wear and maintain accuracy for long.
| order_no | model | A | B | C | D | E | F | G | H | J | K | L | M | N | O | P | Q |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07830160 | PLV-160 | 625 | 150 | 775 | 160 | 205 | 240 | 125 | 15 | 0-335 | 58 | 140 | 208 | 14 | 16 | 845 | 39 |
| 07830200 | PLV-200 | 700 | 150 | 850 | 200 | 240 | 280 | 150 | 18 | 0-360 | 63 | 163 | 265 | 14 | 18 | 915 | 46 |
| 07830250 | PLV-250 | 810 | 150 | 960 | 250 | 290 | 320 | 180 | 21 | 0-380 | 80 | 190 | 320 | 14 | 18 | 1020 | 50 |
| order_no | model | R | S | T | U | max_pressure | nw_gw | shipment_size | nw_gw_with_swivel | shipment_size_with_swivel |
|---|---|---|---|---|---|---|---|---|---|---|
| 07830160 | PLV-160 | 320 | 340 | 179 | 125 | 52KN(5096kgf) | 54kg / 57kg | 840x260x180 | 72kg / 85kg | 900x430x290 |
| 07830200 | PLV-200 | 365 | 400 | 205 | 125 | 62KN(6076kgf) | 90kg / 102kg | 1010x380x280 | 113kg / 130kg | 1010x520x310 |
| 07830250 | PLV-250 | 420 | 460 | 238 | 125 | 67KN(6566kgf) | 140kg / 160kg | 1110x450x300 | 172kg / 200kg | 1110x560x350 |
| Code | Model |
|---|---|
| 07830160 | PLV-160 |
| 07830200 | PLV-200 |
| 07830250 | PLV-250 |
Marked PATENTED. Clamp force bar graph on a 0-100 KN scale. Unit: mm. Specifications are split across two tables sharing the same order numbers.
Extension Lock-Down Jaw Mechanical / Hydraulic Machine Vise
Down Thrust / Hydraulic · Taiwan
- Mechanical / Hydraulic spindle without original clutch mechanism.
- Both surface precision grinding.
- Down thrust "Semi-sphere segment" mechanism- eliminates jaw lift and work tilt.
- Most suitable for large work-piece with 2 vise mounting.
| order_no | model | jaw_width | jaw_height | jaw_opening | max_pressure | limit_pressure | weight_of_movable_jaw | weight_of_head | length | nw_gw |
|---|---|---|---|---|---|---|---|---|---|---|
| 07840160 | EHV-160A | 160 | 58 | 510-Limit | 41KN(4108kgf) | 52KN(5096kgf) | 38kg | 38kg | 1155 | 76 / 90 |
| 07842160 | EHV-160B | 160 | 58 | 100-Limit | 41KN(4108kgf) | 52KN(5096kgf) | 38kg | 15kg | 790 | 53 / 58 |
| Code | Model |
|---|---|
| 07840160 | EHV-160A |
| 07842160 | EHV-160B |
Two application diagrams: "Min. Jaw Opening 510mm~LIMIT" (dims 125, 520, 625, 345) and "Min. Jaw Opening 100mm~LIMIT" with H=Same Height (dims 170, 345, 105, 140, 240). Unit: mm.
Heavy Duty High Precision Drill Press Vise with Lock Down Jaw Mechanism
Down Thrust / Light · Taiwan
- Lock down jaw mechanism, eliminates jaw lifting and work-piece titling.
- Clamping system: Lead screw.
| order_no | model | A | B | C | D | E | F | G | N | jaw_heigh | jaw_opening | nw | gw | shipment_size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07860100 | DV-100(4") | 254 | 140 | 100 | 120 | 30 | 190 | 34 | 14 | 42 | 0-90 / 100 | 6.0kg | 6.2kg | 310x150x85 |
| 07860130 | DV-130(5") | 270 | 170 | 130 | 145 | 32 | 200 | 38 | 16 | 44 | 0-100 / 110 | 8.2kg | 8.4kg | 327x188x94 |
| 07860160 | DV-160(6") | 278 | 210 | 160 | 180 | 36 | 200 | 42 | 18 | 44 | 0-105 / 115 | 10.1kg | 10.4kg | 340x224x100 |
| Code | Model |
|---|---|
| 07860100 | DV-100(4") |
| 07860130 | DV-130(5") |
| 07860160 | DV-160(6") |
Unit: mm.
B-Type Precision Machine Vise
Taiwan
| order_no | model | type |
|---|---|---|
| 10030150 | HB-150 | B-type precision machine vise |
| 07804150 | SB-150 | Swivel base |
| Code | Model |
|---|---|
| 10030150 | HB-150 |
| 07804150 | SB-150 |
Order no. 10030150, model HB-150. Standard Accessories: 1. Handle x 1pc; 2. Guide key x 2pcs (16mm) M6x10Lx2pcs. Swivel base sold as order no. 07804150, model SB-150. No specification table is printed; only dimensioned drawings. Vise drawing dims: M10, 25, 13, 22, 110, 40, 13, 160, 115, 45, 45, 16, 70, 205. Swivel base drawing dims: 497.5, 477, 145, 150, 320, 288, 214, 160.
MC Tilt Table (Whole Steel)
Taiwan
- Slant degree is between 0~45°. Angle can be fine tuned with worm and worm gear.
- Each fine-tuning scale equals 2 degree. The smallest scale is 60 seconds with another 1/60-second marks on the secondary scale.
- This universal tilt working table can be categorized into two types: A) Working table with T-slot which can lock work piece for heavy duty machining. (0~45° adjustable angle) B) Working table which can be in-cooperated with vise for heavy duty machining. (Adjustable 0~45° working table and 0~360° vise rotary angle)
| order_no | model | A | B | C | D | H | I | J | K | L | T | titleangle | nw_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07712130 | TSB-130T | 200 | 196 | 300 | 180 | 122 | 127 | 192 | 270 | 18 | 18 | 0~45° | 30 |
| 07712160 | TSB-160T | 250 | 240 | 350 | 230 | 150 | 155 | 236 | 320 | 18 | 18 | 0~45° | 55 |
| 07712200 | TSB-200T | 290 | 280 | 410 | 255 | 174 | 179 | 274 | 370 | 18 | 18 | 0~45° | 88 |
| order_no | model | A | B | C | D | H | I | J | K | M | title_angle | swivel_angle | nw_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07714100 | TSB-100U | 200 | 196 | 300 | 180 | 122 | 127 | 192 | 270 | 16 | 0~45° | 0~360° | 38 |
| 07714130 | TSB-130U | 200 | 196 | 300 | 180 | 122 | 127 | 192 | 270 | 18 | 0~45° | 0~360° | 38 |
| 07714160 | TSB-160U | 250 | 240 | 350 | 230 | 150 | 155 | 236 | 320 | 18 | 0~45° | 0~360° | 58 |
| 07714200 | TSB-200U | 290 | 280 | 410 | 255 | 174 | 179 | 274 | 370 | 18 | 0~45° | 0~360° | 90 |
| Code | Model |
|---|---|
| 07712130 | TSB-130T |
| 07712160 | TSB-160T |
| 07712200 | TSB-200T |
| 07714100 | TSB-100U |
| 07714130 | TSB-130U |
| 07714160 | TSB-160U |
| 07714200 | TSB-200U |
Pictured models TSB-160T (0~45°) and TSB-160U (0~45°, 0~360°). Unit: mm.
