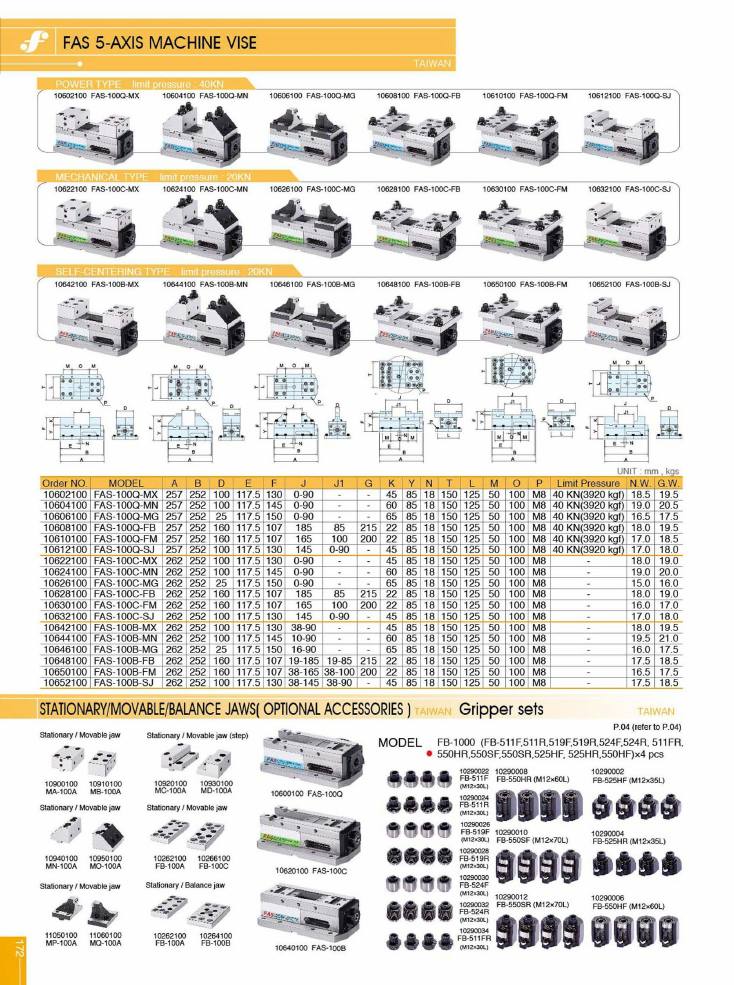

Frejoth accessory catalogue · Page 172
Machine vise
Models on this page
FAS-100BFAS-100B-FBFAS-100B-FMFAS-100B-MGFAS-100B-MNFAS-100B-MXFAS-100B-SJFAS-100CFAS-100C-FBFAS-100C-FMFAS-100C-MGFAS-100C-MNFAS-100C-MXFAS-100C-SJFAS-100QFAS-100Q-FBFAS-100Q-FMFAS-100Q-MGFAS-100Q-MNFAS-100Q-MXFAS-100Q-SJFB-100AFB-100BFB-100CFB-511FFB-511FRFB-511RFB-519FFB-519RFB-524FFB-524RFB-525HFFB-525HRFB-550HFFB-550HRFB-550SFFB-550SRMA-100AMB-100AMC-100AMD-100AMN-100AMO-100AMP-100AMQ-100A
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
FAS 5-Axis Machine Vise
FAS · Taiwan
| order_no | model | A | B | D | E | F | J | J1 | G | K | Y | N | T | L | M | O | P | limit_pressure | nw_kg | gw_kg |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10602100 | FAS-100Q-MX | 257 | 252 | 100 | 117.5 | 130 | 0-90 | — | — | 45 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | 40 KN(3920 kgf) | 18.5 | 19.5 |
| 10604100 | FAS-100Q-MN | 257 | 252 | 100 | 117.5 | 145 | 0-90 | — | — | 60 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | 40 KN(3920 kgf) | 19 | 20.5 |
| 10606100 | FAS-100Q-MG | 257 | 252 | 25 | 117.5 | 150 | 0-90 | — | — | 65 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | 40 KN(3920 kgf) | 16.5 | 17.5 |
| 10608100 | FAS-100Q-FB | 257 | 252 | 160 | 117.5 | 107 | 185 | 85 | 215 | 22 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | 40 KN(3920 kgf) | 18 | 19.5 |
| 10610100 | FAS-100Q-FM | 257 | 252 | 160 | 117.5 | 107 | 165 | 100 | 200 | 22 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | 40 KN(3920 kgf) | 17 | 18.5 |
| 10612100 | FAS-100Q-SJ | 257 | 252 | 100 | 117.5 | 130 | 145 | 0-90 | — | 45 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | 40 KN(3920 kgf) | 17 | 18 |
| 10622100 | FAS-100C-MX | 262 | 252 | 100 | 117.5 | 130 | 0-90 | — | — | 45 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 18 | 19 |
| 10624100 | FAS-100C-MN | 262 | 252 | 100 | 117.5 | 145 | 0-90 | — | — | 60 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 19 | 20 |
| 10626100 | FAS-100C-MG | 262 | 252 | 25 | 117.5 | 150 | 0-90 | — | — | 65 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 15 | 16 |
| 10628100 | FAS-100C-FB | 262 | 252 | 160 | 117.5 | 107 | 185 | 85 | 215 | 22 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 18 | 19 |
| 10630100 | FAS-100C-FM | 262 | 252 | 160 | 117.5 | 107 | 165 | 100 | 200 | 22 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 16 | 17 |
| 10632100 | FAS-100C-SJ | 262 | 252 | 100 | 117.5 | 130 | 145 | 0-90 | — | 45 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 17 | 18 |
| 10642100 | FAS-100B-MX | 262 | 252 | 100 | 117.5 | 130 | 38-90 | — | — | 45 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 18 | 19.5 |
| 10644100 | FAS-100B-MN | 262 | 252 | 100 | 117.5 | 145 | 10-90 | — | — | 60 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 19.5 | 21 |
| 10646100 | FAS-100B-MG | 262 | 252 | 25 | 117.5 | 150 | 16-90 | — | — | 65 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 16 | 17.5 |
| 10648100 | FAS-100B-FB | 262 | 252 | 160 | 117.5 | 107 | 19-185 | 19-85 | 215 | 22 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 17.5 | 18.5 |
| 10650100 | FAS-100B-FM | 262 | 252 | 160 | 117.5 | 107 | 38-165 | 38-100 | 200 | 22 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 16.5 | 17.5 |
| 10652100 | FAS-100B-SJ | 262 | 252 | 100 | 117.5 | 130 | 38-145 | 38-90 | — | 45 | 85 | 18 | 150 | 125 | 50 | 100 | M8 | — | 17.5 | 18.5 |
| Code | Model |
|---|---|
| 10602100 | FAS-100Q-MX |
| 10604100 | FAS-100Q-MN |
| 10606100 | FAS-100Q-MG |
| 10608100 | FAS-100Q-FB |
| 10610100 | FAS-100Q-FM |
| 10612100 | FAS-100Q-SJ |
| 10622100 | FAS-100C-MX |
| 10624100 | FAS-100C-MN |
| 10626100 | FAS-100C-MG |
| 10628100 | FAS-100C-FB |
| 10630100 | FAS-100C-FM |
| 10632100 | FAS-100C-SJ |
| 10642100 | FAS-100B-MX |
| 10644100 | FAS-100B-MN |
| 10646100 | FAS-100B-MG |
| 10648100 | FAS-100B-FB |
| 10650100 | FAS-100B-FM |
| 10652100 | FAS-100B-SJ |
Three variants: POWER TYPE (limit pressure 40KN, FAS-100Q-*), MECHANICAL TYPE (limit pressure 20KN, FAS-100C-*), SELF-CENTERING TYPE (limit pressure 20KN, FAS-100B-*). Each variant is offered in six jaw configurations: MX, MN, MG, FB, FM, SJ. Unit: mm, kgs.
Stationary / Movable / Balance Jaws (Optional Accessories)
Taiwan
| order_no | model | jaw_type |
|---|---|---|
| 10900100 | MA-100A | Stationary / Movable jaw |
| 10910100 | MB-100A | Stationary / Movable jaw |
| 10920100 | MC-100A | Stationary / Movable jaw (step) |
| 10930100 | MD-100A | Stationary / Movable jaw (step) |
| 10940100 | MN-100A | Stationary / Movable jaw |
| 10950100 | MO-100A | Stationary / Movable jaw |
| 10262100 | FB-100A | Stationary / Movable jaw |
| 10266100 | FB-100C | Stationary / Movable jaw |
| 11050100 | MP-100A | Stationary / Movable jaw |
| 11060100 | MQ-100A | Stationary / Movable jaw |
| 10264100 | FB-100B | Stationary / Balance jaw |
| order_no | model |
|---|---|
| 10600100 | FAS-100Q |
| 10620100 | FAS-100C |
| 10640100 | FAS-100B |
| Code | Model |
|---|---|
| 10262100 | FB-100A |
| 10266100 | FB-100C |
| 11050100 | MP-100A |
| 11060100 | MQ-100A |
| 10264100 | FB-100B |
| 10600100 | FAS-100Q |
| 10620100 | FAS-100C |
| 10640100 | FAS-100B |
| 10900100 | MA-100A |
| 10910100 | MB-100A |
| 10920100 | MC-100A |
| 10930100 | MD-100A |
| 10940100 | MN-100A |
| 10950100 | MO-100A |
Optional jaws for the FAS 5-axis machine vise, plus the three bare vise bodies. No dimensions are printed for these items, only order numbers, model codes and photographs.
Gripper sets
Taiwan
| order_no | model | thread_and_length |
|---|---|---|
| 10290022 | FB-511F | M12×30L |
| 10290024 | FB-511R | M12×30L |
| 10290026 | FB-519F | M12×30L |
| 10290028 | FB-519R | M12×30L |
| 10290030 | FB-524F | M12×30L |
| 10290032 | FB-524R | M12×30L |
| 10290034 | FB-511FR | M12×30L |
| 10290008 | FB-550HR | M12×60L |
| 10290010 | FB-550SF | M12×70L |
| 10290012 | FB-550SR | M12×70L |
| 10290002 | FB-525HF | M12×35L |
| 10290004 | FB-525HR | M12×35L |
| 10290006 | FB-550HF | M12×60L |
| Code | Model |
|---|---|
| 10290022 | FB-511F |
| 10290024 | FB-511R |
| 10290026 | FB-519F |
| 10290028 | FB-519R |
| 10290030 | FB-524F |
| 10290032 | FB-524R |
| 10290034 | FB-511FR |
| 10290008 | FB-550HR |
| 10290010 | FB-550SF |
| 10290012 | FB-550SR |
| 10290002 | FB-525HF |
| 10290004 | FB-525HR |
| 10290006 | FB-550HF |
Set model FB-1000 comprises (FB-511F, 511R, 519F, 519R, 524F, 524R, 511FR, 550HR, 550SF, 550SR, 525HF, 525HR, 550HF) × 4 pcs. Cross-reference printed: P.04 (refer to P.04). Individual grippers are illustrated in packs of 4.
