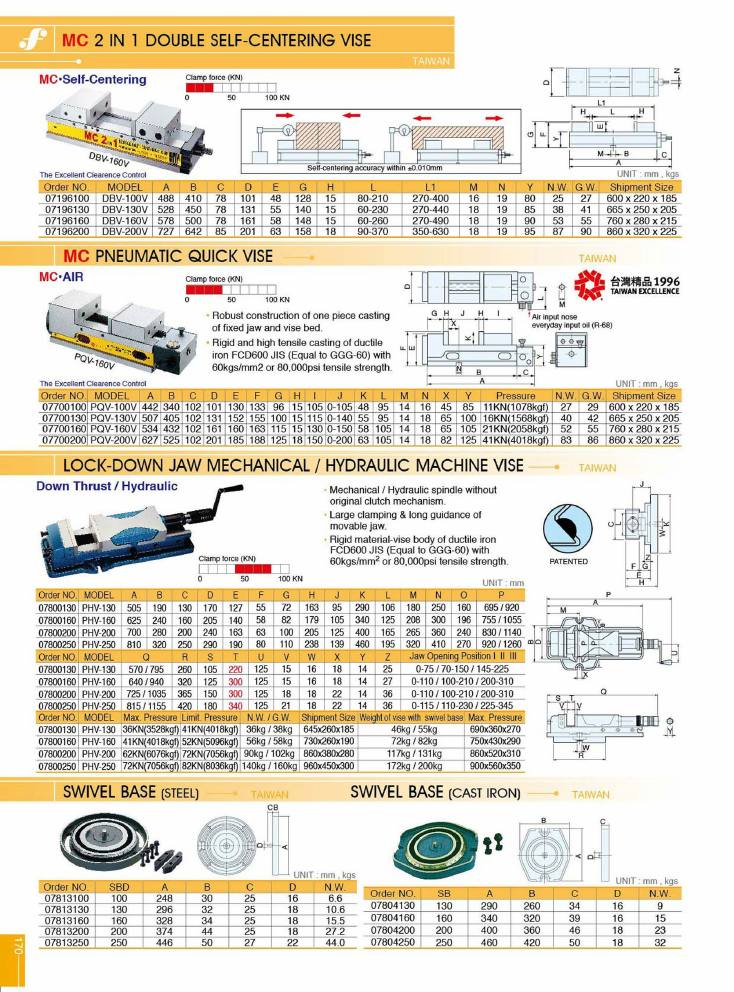

Frejoth accessory catalogue · Page 170

Machine vises

Models on this page

DBV-100VDBV-130VDBV-160VDBV-200VPHV-130PHV-160PHV-200PHV-250PQV-100VPQV-130VPQV-160VPQV-200VSB-130SB-160SB-200SB-250SBD-100SBD-130SBD-160SBD-200SBD-250

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

MC 2 in 1 Double Self-Centering Vise

DBV · Taiwan

MC•Self-Centering
The Excellent Clearence Control
Self-centering accuracy within ±0.010mm
Clamp force up to approx. 30KN (bar graph, 0-100KN scale)

dimensions (mm, kgs)
order_no	model	A	B	C	D	E	G	H	L	L1	M	N	Y	n_w	g_w	shipment_size
07196100	DBV-100V	488	410	78	101	48	128	15	80-210	270-400	16	19	80	25	27	600 x 220 x 185
07196130	DBV-130V	528	450	78	131	55	140	15	60-230	270-440	18	19	85	38	41	665 x 250 x 205
07196160	DBV-160V	578	500	78	161	58	148	15	60-260	270-490	18	19	90	53	55	760 x 280 x 215
07196200	DBV-200V	727	642	85	201	63	158	18	90-370	350-630	18	19	95	87	90	860 x 320 x 225

Order references
Code	Model
07196100	DBV-100V
07196130	DBV-130V
07196160	DBV-160V
07196200	DBV-200V

MC Pneumatic Quick Vise

PQV · Taiwan

MC•AIR
Robust construction of one piece casting of fixed jaw and vise bed.
Rigid and high tensile casting of ductile iron FCD600 JIS (Equal to GGG-60) with 60kgs/mm2 or 80,000psi tensile strength.
Air input nose everyday input oil (R-68)
The Excellent Clearence Control

dimensions (mm, kgs)
order_no	model	A	B	C	D	E	F	G	H	I	J	K	L	M	N	X	Y	pressure	n_w	g_w	shipment_size
07700100	PQV-100V	442	340	102	101	130	133	96	15	105	0-105	48	95	14	16	45	85	11KN(1078kgf)	27	29	600 x 220 x 185
07700130	PQV-130V	507	405	102	131	152	155	100	15	115	0-140	55	95	14	18	65	100	16KN(1568kgf)	40	42	665 x 250 x 205
07700160	PQV-160V	534	432	102	161	160	163	115	15	130	0-150	58	105	14	18	65	105	21KN(2058kgf)	52	55	760 x 280 x 215
07700200	PQV-200V	627	525	102	201	185	188	125	18	150	0-200	63	105	14	18	82	125	41KN(4018kgf)	83	86	860 x 320 x 225

Order references
Code	Model
07700100	PQV-100V
07700130	PQV-130V
07700160	PQV-160V
07700200	PQV-200V

Taiwan Excellence 1996 award mark on page.

Lock-Down Jaw Mechanical / Hydraulic Machine Vise

PHV · Taiwan

Down Thrust / Hydraulic
Mechanical / Hydraulic spindle without original clutch mechanism.
Large clamping & long guidance of movable jaw.
Rigid material-vise body of ductile iron FCD600 JIS (Equal to GGG-60) with 60kgs/mm2 or 80,000psi tensile strength.
Patented

dimensions_a_to_p (mm)
order_no	model	A	B	C	D	E	F	G	H	J	K	L	M	N	O	P
07800130	PHV-130	505	190	130	170	127	55	72	163	95	290	106	180	250	160	695 / 920
07800160	PHV-160	625	240	160	205	140	58	82	179	105	340	125	208	300	196	755 / 1055
07800200	PHV-200	700	280	200	240	163	63	100	205	125	400	165	265	360	240	830 / 1140
07800250	PHV-250	810	320	250	290	190	80	110	238	139	460	195	320	410	270	920 / 1260

dimensions_q_to_z (mm)
order_no	model	Q	R	S	T	U	V	W	X	Y	Z	jaw_opening_position_i_ii_iii
07800130	PHV-130	570 / 795	260	105	220	125	15	16	18	14	25	0-75 / 70-150 / 145-225
07800160	PHV-160	640 / 940	320	125	300	125	15	16	18	14	27	0-110 / 100-210 / 200-310
07800200	PHV-200	725 / 1035	365	150	300	125	18	18	22	14	36	0-110 / 100-210 / 200-310
07800250	PHV-250	815 / 1155	420	180	340	125	21	18	22	14	36	0-115 / 110-230 / 225-345

pressure_and_weights (mm, kgs)
order_no	model	max_pressure	limit_pressure	n_w_g_w	shipment_size	weight_of_vise_with_swivel_base	shipment_size_with_swivel_base
07800130	PHV-130	36KN(3528kgf)	41KN(4018kgf)	36kg / 38kg	645x260x185	46kg / 55kg	690x360x270
07800160	PHV-160	41KN(4018kgf)	52KN(5096kgf)	56kg / 58kg	730x260x190	72kg / 82kg	750x430x290
07800200	PHV-200	62KN(6076kgf)	72KN(7056kgf)	90kg / 102kg	860x380x280	117kg / 131kg	860x520x310
07800250	PHV-250	72KN(7056kgf)	82KN(8036kgf)	140kg / 160kg	960x450x300	172kg / 200kg	900x560x350

Order references
Code	Model
07800130	PHV-130
07800160	PHV-160
07800200	PHV-200
07800250	PHV-250

Swivel Base (Steel)

Taiwan

dimensions (mm, kgs)
order_no	SBD	A	B	C	D	n_w
07813100	100	248	30	25	16	6.6
07813130	130	296	32	25	18	10.6
07813160	160	328	34	25	18	15.5
07813200	200	374	44	25	18	27.2
07813250	250	446	50	27	22	44

Order references
Code	Model
07813250	SBD-250
07813100	SBD-100
07813130	SBD-130
07813160	SBD-160
07813200	SBD-200

Swivel Base (Cast Iron)
