Magnetic chucks

Models on this page

GIW TYPE-10210GIWE TYPE-10209GLC-06GLC-08GLC-10GLC-12GLC-14GLC-16GLC-20GLC-24GLUW-510AGLUW-510AAGLUW-510BGLUW-612AGLUW-612AAGLUW-612BGLW-407AGLW-510AGLW-606AGLW-612AGLW-614AGLW-616AGLW-618AGLW-816AGLW-818AGLW-820A

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

Permanent Magnetic Chucks - Round

GLC · Taiwan

Magnetic field intensity: higher than 450 GAUSS

dimensions (mm, kgs)
model_no	face_plate_B	face_plate_t1	face_plate_L1	bottom_plate_t2	bottom_plate_L0	pole_pitch_P	height_H	weight_kgs
GLC-06	Ø150	21	101	18	200	9 (2+7)	78	9
GLC-08	Ø200	21	137	18	200	9 (2+7)	78	14
GLC-10	Ø250	21	191	18	250	9 (2+7)	78	24
GLC-12	Ø300	21	227	18	305	9 (2+7)	78	30
GLC-14	Ø360	20	300	—	360	16 (4+12)	63	51
GLC-16	Ø400	20	340	—	400	16 (4+12)	63	64
GLC-20	Ø500	20	440	—	500	16 (4+12)	65	105
GLC-24	Ø600	20	540	—	600	16 (4+12)	65	147

Order references
Code	Model
on request	GLC-06
on request	GLC-08
on request	GLC-10
on request	GLC-12
on request	GLC-14
on request	GLC-16
on request	GLC-20
on request	GLC-24

Permanent Magnetic Chucks - Fine Pitch

GLW · Taiwan

Magnetic field intensity: higher than 500 GAUSS

dimensions (mm, kgs)
model_no	dimension	face_plate_W	face_plate_L	bottom_plate_W	bottom_plate_L	pole_pitch	height_H	weight_kgs
GLW-407A	100x175	100	175	100	175	2(1+1)	47	7
GLW-510A	125x250	125	250	125	250	2(1+1)	47	12
GLW-606A	150x150	150	150	150	150	2(1+1)	47	11
GLW-612A	150x300	150	300	150	300	2(1+1)	47	19
GLW-614A	150x350	150	350	150	350	2(1+1)	47	22
GLW-616A	150x400	150	400	150	400	2(1+1)	47	25
GLW-618A	150x450	150	450	150	450	2(1+1)	47	28
GLW-816A	200x400	200	400	200	400	2(1+1)	48	34
GLW-818A	200x450	200	450	200	450	2(1+1)	48	39
GLW-820A	200x500	200	500	200	500	2(1+1)	48	43

Order references
Code	Model
on request	GLW-407A
on request	GLW-510A
on request	GLW-606A
on request	GLW-612A
on request	GLW-614A
on request	GLW-616A
on request	GLW-618A
on request	GLW-816A
on request	GLW-818A
on request	GLW-820A

Electrical Magnetic Chuck - Rotary

GLUW · Taiwan

Magnetic field intensity: higher than 500 GAUSS

dimensions (mm, kgs)
model_no	dimension	face_plate_B	face_plate_L	face_plate_L2	pole_pitch_P	bottom_plate_d	bottom_plate_C	bottom_plate_F	bottom_plate_L1	voltage_dc	current	height_H	weight_kgs
GLUW-510B	125x250	125	250	190	15 (3+12)	16	100	96	380	90V	0.35A	150	34
GLUW-612B	150x300	150	300	240	15 (3+12)	16	100	96	430	90V	0.45A	150	43
GLUW-510A	125x250	125	250	190	4 (1+3)	16	100	96	380	90V	0.35A	150	34
GLUW-612A	150x300	150	300	240	4 (1+3)	16	100	96	430	90V	0.45A	150	43
GLUW-510AA	125x250	125	250	190	2 (1+1)	16	100	96	380	90V	0.35A	150	34
GLUW-612AA	150x300	150	300	240	2 (1+1)	16	100	96	430	90V	0.45A	150	43

Order references
Code	Model
on request	GLUW-510B
on request	GLUW-612B
on request	GLUW-510A
on request	GLUW-612A
on request	GLUW-510AA
on request	GLUW-612AA

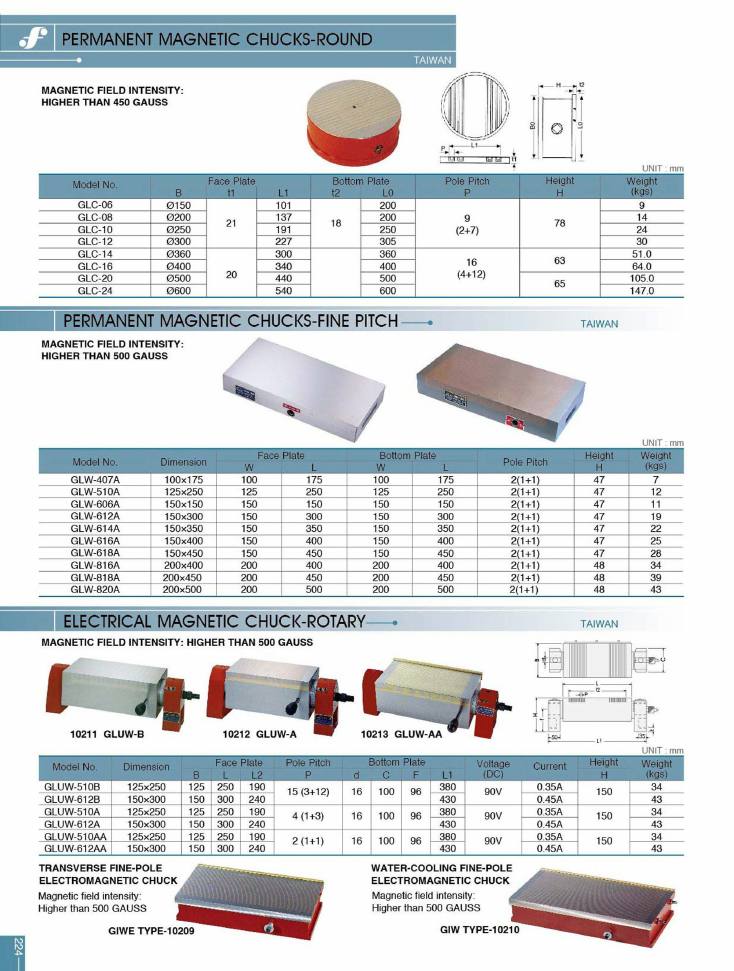

Photo captions on the page give type numbers: 10211 GLUW-B, 10212 GLUW-A, 10213 GLUW-AA.

Transverse Fine-Pole Electromagnetic Chuck

GIWE TYPE-10209 · Taiwan

Magnetic field intensity: higher than 500 GAUSS

Order references
Code	Model
10209	GIWE TYPE-10209

Photo and caption only - no specification table printed on this page.

Water-Cooling Fine-Pole Electromagnetic Chuck

GIW TYPE-10210 · Taiwan

Magnetic field intensity: higher than 500 GAUSS

Order references
Code	Model
10210	GIW TYPE-10210
