Manual Hydraulic Press / Automatic Hydraulic Press
Models on this page
JL-100EJL-15JL-150EJL-15AJL-15EJL-35AJL-35EJL-5AJL-60E
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
Manual Hydraulic Press
JL · Taiwan
| model | capacity_ton | cylinder_bore_mm | pressure_kg_cm2 | a | b | c | d | e | f | g | h | i | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JL-5A | 5 | 50 | 300 | 605 | 700 | 110 | 70 | 500 | 288 | 120 | 600 | 1310 | 485 | 120 |
| JL-15 | 15 | 80 | 300 | 152 | 300 | 100 | NONE | 310 | 180 | 145 | 500 | 1060 | NONE | 127 |
| JL-15A | 15 | 80 | 300 | 800 | 860 | 110 | 100 | 595 | 355 | 166 | 750 | 1640 | 628 | 90 |
| JL-35A | 35 | 125 | 300 | 1000 | 1080 | 110 | 80 | 530 | 410 | 236 | 850 | 1730 | 790 | 95 |
| Code | Model |
|---|---|
| on request | JL-5A |
| on request | JL-15 |
| on request | JL-15A |
| on request | JL-35A |

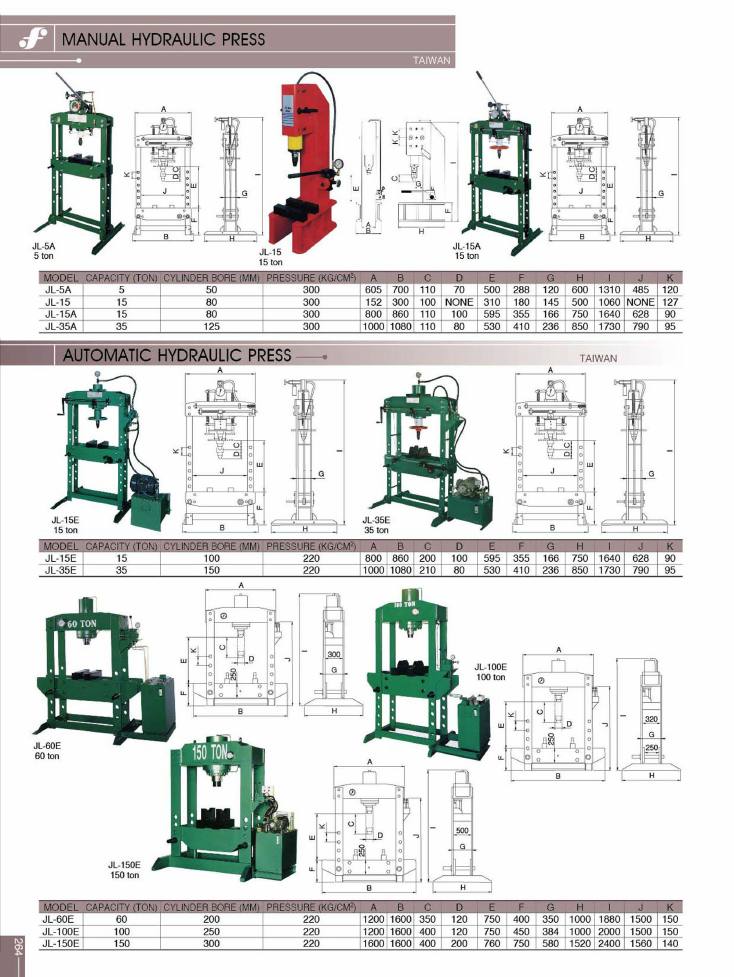

Illustrated as JL-5A (5 ton), JL-15 (15 ton) and JL-15A (15 ton). Dimension letters A-K refer to the outline drawings above the table.
Automatic Hydraulic Press
JL-E · Taiwan
| model | capacity_ton | cylinder_bore_mm | pressure_kg_cm2 | a | b | c | d | e | f | g | h | i | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JL-15E | 15 | 100 | 220 | 800 | 860 | 200 | 100 | 595 | 355 | 166 | 750 | 1640 | 628 | 90 |
| JL-35E | 35 | 150 | 220 | 1000 | 1080 | 210 | 80 | 530 | 410 | 236 | 850 | 1730 | 790 | 95 |
| model | capacity_ton | cylinder_bore_mm | pressure_kg_cm2 | a | b | c | d | e | f | g | h | i | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| JL-60E | 60 | 200 | 220 | 1200 | 1600 | 350 | 120 | 750 | 400 | 350 | 1000 | 1880 | 1500 | 150 |
| JL-100E | 100 | 250 | 220 | 1200 | 1600 | 400 | 120 | 750 | 450 | 384 | 1000 | 2000 | 1500 | 150 |
| JL-150E | 150 | 300 | 220 | 1600 | 1600 | 400 | 200 | 760 | 750 | 580 | 1520 | 2400 | 1560 | 140 |
| Code | Model |
|---|---|
| on request | JL-15E |
| on request | JL-35E |
| on request | JL-60E |
| on request | JL-100E |
| on request | JL-150E |
Illustrated as JL-15E (15 ton), JL-35E (35 ton), JL-60E (60 ton), JL-100E (100 ton) and JL-150E (150 ton). Printed as two separate tables with identical column sets.
