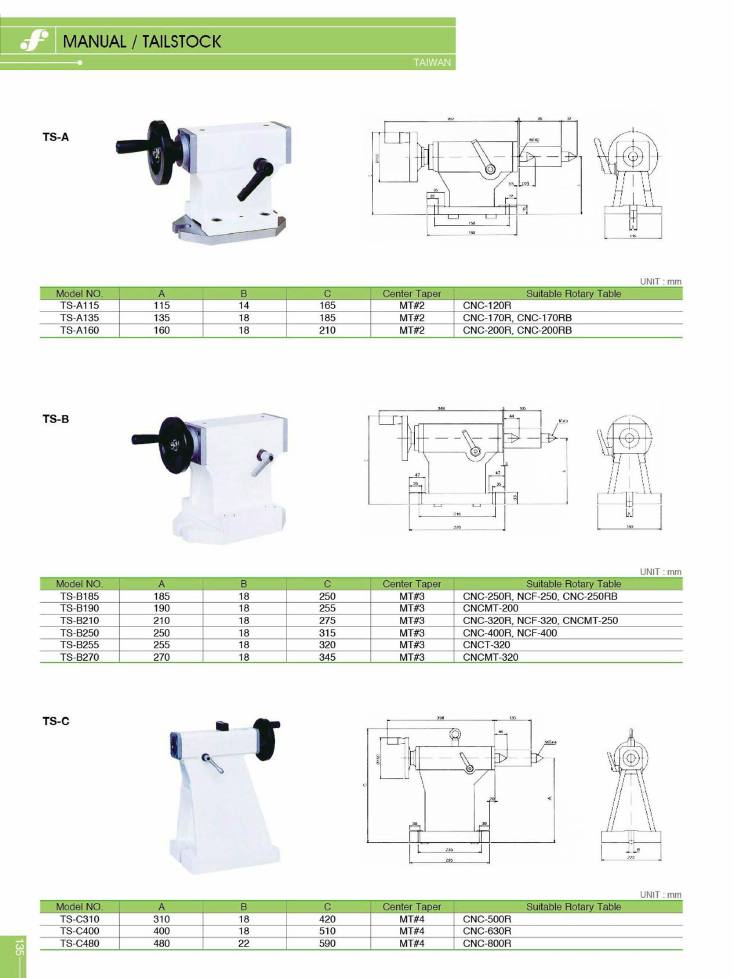

Manual Tailstock TS-A
| model_no | A | B | C | center_taper | suitable_rotary_table |
|---|---|---|---|---|---|
| TS-A115 | 115 | 14 | 165 | MT#2 | CNC-120R |
| TS-A135 | 135 | 18 | 185 | MT#2 | CNC-170R, CNC-170RB |
| TS-A160 | 160 | 18 | 210 | MT#2 | CNC-200R, CNC-200RB |
| Code | Model |
|---|---|
| on request | TS-A115 |
| on request | TS-A135 |
| on request | TS-A160 |
Small manual tailstock with handwheel and lever clamp, for CNC-120R to CNC-200RB rotary tables. Outline drawing carries overall dimensions of the order 267 long x 180 base, 150 slot centres, ø100 rear body, 35/22 base steps and a 32 centre projection; these are drawing annotations, not tabulated, and are only partly legible.
Manual Tailstock TS-B
| model_no | A | B | C | center_taper | suitable_rotary_table |
|---|---|---|---|---|---|
| TS-B185 | 185 | 18 | 250 | MT#3 | CNC-250R, NCF-250, CNC-250RB |
| TS-B190 | 190 | 18 | 255 | MT#3 | CNCMT-200 |
| TS-B210 | 210 | 18 | 275 | MT#3 | CNC-320R, NCF-320, CNCMT-250 |
| TS-B250 | 250 | 18 | 315 | MT#3 | CNC-400R, NCF-400 |
| TS-B255 | 255 | 18 | 320 | MT#3 | CNCT-320 |
| TS-B270 | 270 | 18 | 345 | MT#3 | CNCMT-320 |
| Code | Model |
|---|---|
| on request | TS-B185 |
| on request | TS-B190 |
| on request | TS-B210 |
| on request | TS-B250 |
| on request | TS-B255 |
| on request | TS-B270 |
Mid-size manual tailstock with handwheel, for CNC-250R to CNCMT-320 rotary tables. Outline drawing carries dimensions of the order 349 long x 270 base, 216 slot centres, 105 and 44 centre projections, 47/35/33 base steps and 180 width; drawing annotations only, not tabulated, and only partly legible.
Manual Tailstock TS-C
| model_no | A | B | C | center_taper | suitable_rotary_table |
|---|---|---|---|---|---|
| TS-C310 | 310 | 18 | 420 | MT#4 | CNC-500R |
| TS-C400 | 400 | 18 | 510 | MT#4 | CNC-630R |
| TS-C480 | 480 | 22 | 590 | MT#4 | CNC-800R |
| Code | Model |
|---|---|
| on request | TS-C310 |
| on request | TS-C400 |
| on request | TS-C480 |
Tall-column manual tailstock for CNC-500R to CNC-800R rotary tables. Outline drawing carries dimensions of the order 398 long x 295 base, 235 slot centres, 135 and 46 centre projections, ø150 rear body, 38/29 base steps and 220 width; drawing annotations only, not tabulated, and only partly legible.
