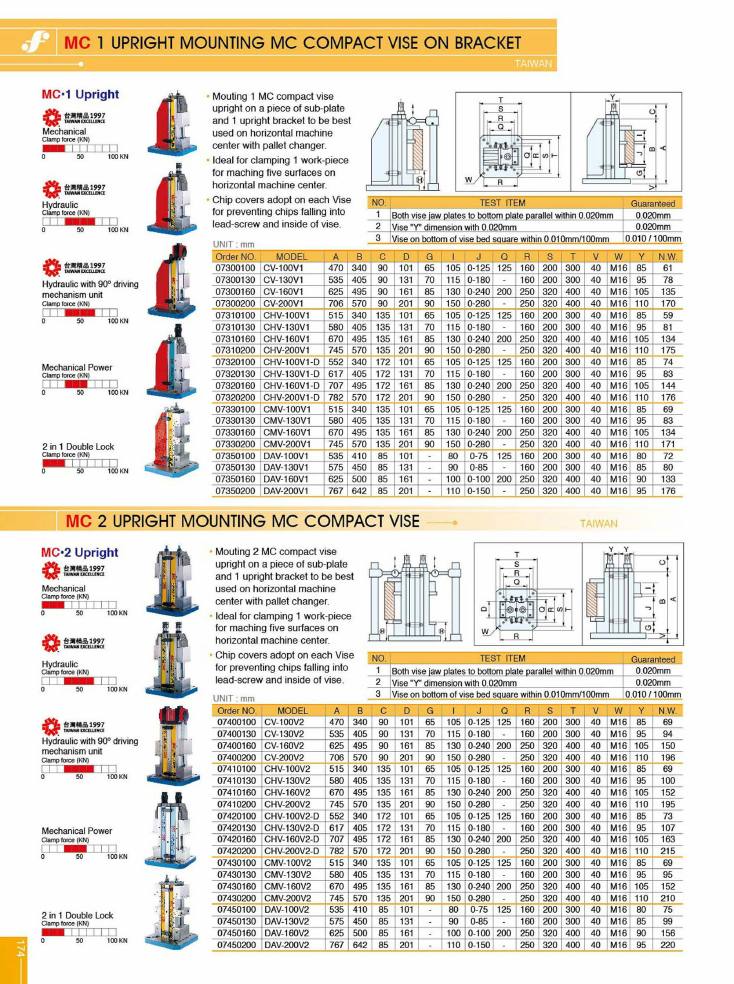

Frejoth accessory catalogue · Page 174
MC 1 Upright Mounting MC Compact Vise on Bracket
Models on this page
CHV-100V1CHV-100V1-DCHV-100V2CHV-100V2-DCHV-130V1CHV-130V1-DCHV-130V2CHV-130V2-DCHV-160V1CHV-160V1-DCHV-160V2CHV-160V2-DCHV-200V1CHV-200V1-DCHV-200V2CHV-200V2-DCMV-100V1CMV-100V2CMV-130V1CMV-130V2CMV-160V1CMV-160V2CMV-200V1CMV-200V2CV-100V1CV-100V2CV-130V1CV-130V2CV-160V1CV-160V2CV-200V1CV-200V2DAV-100V1DAV-100V2DAV-130V1DAV-130V2DAV-160V1DAV-160V2DAV-200V1DAV-200V2
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
MC 1 Upright Mounting MC Compact Vise on Bracket
MC-1 Upright · Taiwan
- Mounting 1 MC compact vise upright on a piece of sub-plate and 1 upright bracket to be best used on horizontal machine center with pallet changer.
- Ideal for clamping 1 work-piece for machining five surfaces on horizontal machine center.
- Chip covers adopt on each vise for preventing chips falling into lead-screw and inside of vise.
| order_no | model | a | b | c | d | g | i | j | q | r | s | t | v | w | y | n_w |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07300100 | CV-100V1 | 470 | 340 | 90 | 101 | 65 | 105 | 0-125 | 125 | 160 | 200 | 300 | 40 | M16 | 85 | 61 |
| 07300130 | CV-130V1 | 535 | 405 | 90 | 131 | 70 | 115 | 0-180 | — | 160 | 200 | 300 | 40 | M16 | 95 | 78 |
| 07300160 | CV-160V1 | 625 | 495 | 90 | 161 | 85 | 130 | 0-240 | 200 | 250 | 320 | 400 | 40 | M16 | 105 | 135 |
| 07300200 | CV-200V1 | 706 | 570 | 90 | 201 | 90 | 150 | 0-280 | — | 250 | 320 | 400 | 40 | M16 | 110 | 170 |
| 07310100 | CHV-100V1 | 515 | 340 | 135 | 101 | 65 | 105 | 0-125 | 125 | 160 | 200 | 300 | 40 | M16 | 85 | 69 |
| 07310130 | CHV-130V1 | 580 | 405 | 135 | 131 | 70 | 115 | 0-180 | — | 160 | 200 | 300 | 40 | M16 | 95 | 81 |
| 07310160 | CHV-160V1 | 670 | 495 | 135 | 161 | 85 | 130 | 0-240 | 200 | 250 | 320 | 400 | 40 | M16 | 105 | 134 |
| 07310200 | CHV-200V1 | 745 | 570 | 135 | 201 | 90 | 150 | 0-280 | — | 250 | 320 | 400 | 40 | M16 | 110 | 175 |
| 07320100 | CHV-100V1-D | 552 | 340 | 172 | 101 | 65 | 105 | 0-125 | 125 | 160 | 200 | 300 | 40 | M16 | 85 | 74 |
| 07320130 | CHV-130V1-D | 617 | 405 | 172 | 131 | 70 | 115 | 0-180 | — | 160 | 200 | 300 | 40 | M16 | 95 | 83 |
| 07320160 | CHV-160V1-D | 707 | 495 | 172 | 161 | 85 | 130 | 0-240 | 200 | 250 | 320 | 400 | 40 | M16 | 105 | 144 |
| 07320200 | CHV-200V1-D | 782 | 570 | 172 | 201 | 90 | 150 | 0-280 | — | 250 | 320 | 400 | 40 | M16 | 110 | 176 |
| 07330100 | CMV-100V1 | 515 | 340 | 135 | 101 | 65 | 105 | 0-125 | 125 | 160 | 200 | 300 | 40 | M16 | 85 | 69 |
| 07330130 | CMV-130V1 | 580 | 405 | 135 | 131 | 70 | 115 | 0-180 | — | 160 | 200 | 300 | 40 | M16 | 95 | 83 |
| 07330160 | CMV-160V1 | 670 | 495 | 135 | 161 | 85 | 130 | 0-240 | 200 | 250 | 320 | 400 | 40 | M16 | 105 | 134 |
| 07330200 | CMV-200V1 | 745 | 570 | 135 | 201 | 90 | 150 | 0-280 | — | 250 | 320 | 400 | 40 | M16 | 110 | 171 |
| 07350100 | DAV-100V1 | 535 | 410 | 85 | 101 | — | 80 | 0-75 | 125 | 160 | 200 | 300 | 40 | M16 | 80 | 72 |
| 07350130 | DAV-130V1 | 575 | 450 | 85 | 131 | — | 90 | 0-85 | — | 160 | 200 | 300 | 40 | M16 | 85 | 80 |
| 07350160 | DAV-160V1 | 625 | 500 | 85 | 161 | — | 100 | 0-100 | 200 | 250 | 320 | 400 | 40 | M16 | 90 | 133 |
| 07350200 | DAV-200V1 | 767 | 642 | 85 | 201 | — | 110 | 0-150 | — | 250 | 320 | 400 | 40 | M16 | 95 | 176 |
| no | test_item | guaranteed |
|---|---|---|
| 1 | Both vise jaw plates to bottom plate parallel within 0.020mm | 0.020mm |
| 2 | Vise "Y" dimension with 0.020mm | 0.020mm |
| 3 | Vise on bottom of vise bed square within 0.010mm/100mm | 0.010 / 100mm |
| Code | Model |
|---|---|
| 07300100 | CV-100V1 |
| 07300130 | CV-130V1 |
| 07300160 | CV-160V1 |
| 07300200 | CV-200V1 |
| 07310100 | CHV-100V1 |
| 07310130 | CHV-130V1 |
| 07310160 | CHV-160V1 |
| 07310200 | CHV-200V1 |
| 07320100 | CHV-100V1-D |
| 07320130 | CHV-130V1-D |
| 07320160 | CHV-160V1-D |
| 07320200 | CHV-200V1-D |
| 07330100 | CMV-100V1 |
| 07330130 | CMV-130V1 |
| 07330160 | CMV-160V1 |
| 07330200 | CMV-200V1 |
| 07350100 | DAV-100V1 |
| 07350130 | DAV-130V1 |
| 07350160 | DAV-160V1 |
| 07350200 | DAV-200V1 |
Clamp force bar charts shown for Mechanical, Hydraulic, Hydraulic with 90 degree driving mechanism unit, Mechanical Power and 2 in 1 Double Lock variants (0-100 KN scale); exact values not printed numerically.
MC 2 Upright Mounting MC Compact Vise
MC-2 Upright · Taiwan
- Mounting 2 MC compact vises upright on a piece of sub-plate and 1 upright bracket to be best used on horizontal machine center with pallet changer.
- Ideal for clamping 1 work-piece for machining five surfaces on horizontal machine center.
- Chip covers adopt on each vise for preventing chips falling into lead-screw and inside of vise.
| order_no | model | a | b | c | d | g | i | j | q | r | s | t | v | w | y | n_w |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07400100 | CV-100V2 | 470 | 340 | 90 | 101 | 65 | 105 | 0-125 | 125 | 160 | 200 | 300 | 40 | M16 | 85 | 69 |
| 07400130 | CV-130V2 | 535 | 405 | 90 | 131 | 70 | 115 | 0-180 | — | 160 | 200 | 300 | 40 | M16 | 95 | 94 |
| 07400160 | CV-160V2 | 625 | 495 | 90 | 161 | 85 | 130 | 0-240 | 200 | 250 | 320 | 400 | 40 | M16 | 105 | 150 |
| 07400200 | CV-200V2 | 706 | 570 | 90 | 201 | 90 | 150 | 0-280 | — | 250 | 320 | 400 | 40 | M16 | 110 | 196 |
| 07410100 | CHV-100V2 | 515 | 340 | 135 | 101 | 65 | 105 | 0-125 | 125 | 160 | 200 | 300 | 40 | M16 | 85 | 69 |
| 07410130 | CHV-130V2 | 580 | 405 | 135 | 131 | 70 | 115 | 0-180 | — | 160 | 200 | 300 | 40 | M16 | 95 | 100 |
| 07410160 | CHV-160V2 | 670 | 495 | 135 | 161 | 85 | 130 | 0-240 | 200 | 250 | 320 | 400 | 40 | M16 | 105 | 152 |
| 07410200 | CHV-200V2 | 745 | 570 | 135 | 201 | 90 | 150 | 0-280 | — | 250 | 320 | 400 | 40 | M16 | 110 | 195 |
| 07420100 | CHV-100V2-D | 552 | 340 | 172 | 101 | 65 | 105 | 0-125 | 125 | 160 | 200 | 300 | 40 | M16 | 85 | 73 |
| 07420130 | CHV-130V2-D | 617 | 405 | 172 | 131 | 70 | 115 | 0-180 | — | 160 | 200 | 300 | 40 | M16 | 95 | 107 |
| 07420160 | CHV-160V2-D | 707 | 495 | 172 | 161 | 85 | 130 | 0-240 | 200 | 250 | 320 | 400 | 40 | M16 | 105 | 165 |
| 07420200 | CHV-200V2-D | 782 | 570 | 172 | 201 | 90 | 150 | 0-280 | — | 250 | 320 | 400 | 40 | M16 | 110 | 215 |
| 07430100 | CMV-100V2 | 515 | 340 | 135 | 101 | 65 | 105 | 0-125 | 125 | 160 | 200 | 300 | 40 | M16 | 85 | 69 |
| 07430130 | CMV-130V2 | 580 | 405 | 135 | 131 | 70 | 115 | 0-180 | — | 160 | 200 | 300 | 40 | M16 | 95 | 95 |
| 07430160 | CMV-160V2 | 670 | 495 | 135 | 161 | 85 | 130 | 0-240 | 200 | 250 | 320 | 400 | 40 | M16 | 105 | 152 |
| 07430200 | CMV-200V2 | 745 | 570 | 135 | 201 | 90 | 150 | 0-280 | — | 250 | 320 | 400 | 40 | M16 | 110 | 210 |
| 07450100 | DAV-100V2 | 535 | 410 | 85 | 101 | — | 80 | 0-75 | 125 | 160 | 200 | 300 | 40 | M16 | 80 | 75 |
| 07450130 | DAV-130V2 | 575 | 450 | 85 | 131 | — | 90 | 0-85 | — | 160 | 200 | 300 | 40 | M16 | 85 | 99 |
| 07450160 | DAV-160V2 | 625 | 500 | 85 | 161 | — | 100 | 0-100 | 200 | 250 | 320 | 400 | 40 | M16 | 90 | 156 |
| 07450200 | DAV-200V2 | 767 | 642 | 85 | 201 | — | 110 | 0-150 | — | 250 | 320 | 400 | 40 | M16 | 95 | 220 |
| no | test_item | guaranteed |
|---|---|---|
| 1 | Both vise jaw plates to bottom plate parallel within 0.020mm | 0.020mm |
| 2 | Vise "Y" dimension with 0.020mm | 0.020mm |
| 3 | Vise on bottom of vise bed square within 0.010mm/100mm | 0.010 / 100mm |
| Code | Model |
|---|---|
| 07400100 | CV-100V2 |
| 07400130 | CV-130V2 |
| 07400160 | CV-160V2 |
| 07400200 | CV-200V2 |
| 07410100 | CHV-100V2 |
| 07410130 | CHV-130V2 |
| 07410160 | CHV-160V2 |
| 07410200 | CHV-200V2 |
| 07420100 | CHV-100V2-D |
| 07420130 | CHV-130V2-D |
| 07420160 | CHV-160V2-D |
| 07420200 | CHV-200V2-D |
| 07430100 | CMV-100V2 |
| 07430130 | CMV-130V2 |
| 07430160 | CMV-160V2 |
| 07430200 | CMV-200V2 |
| 07450100 | DAV-100V2 |
| 07450130 | DAV-130V2 |
| 07450160 | DAV-160V2 |
| 07450200 | DAV-200V2 |
Clamp force bar charts shown for Mechanical, Hydraulic, Hydraulic with 90 degree driving mechanism unit, Mechanical Power and 2 in 1 Double Lock variants (0-100 KN scale); exact values not printed numerically.
