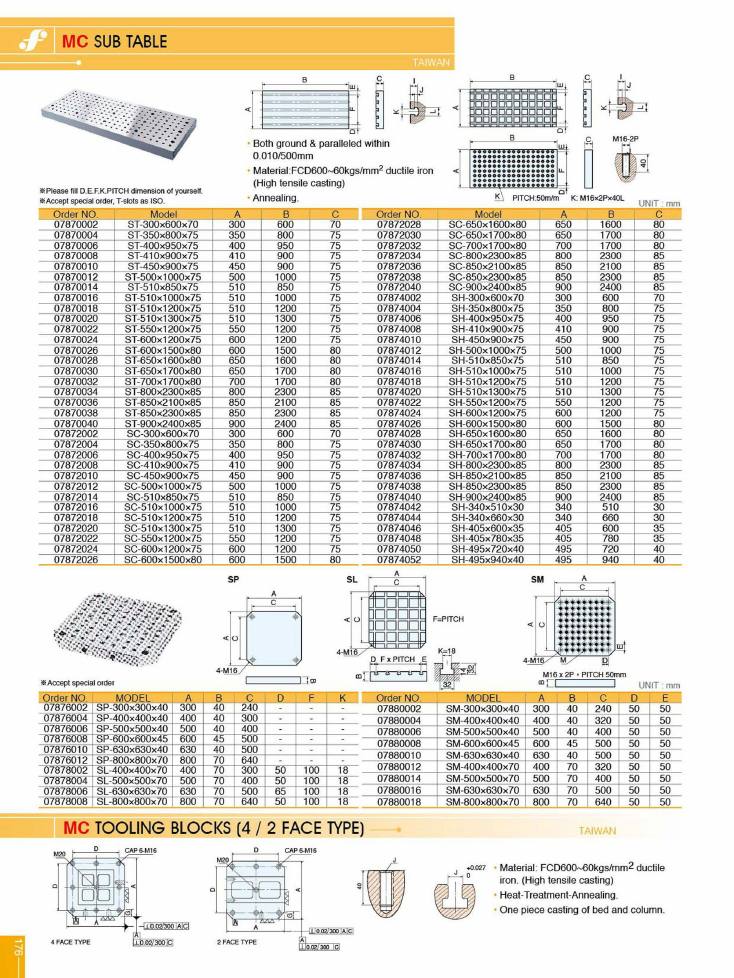

MC sub tables / sub plates / tooling blocks

Models on this page

SC-300x600x70SC-350x800x75SC-400x950x75SC-410x900x75SC-450x900x75SC-500x1000x75SC-510x1000x75SC-510x1200x75SC-510x1300x75SC-510x850x75SC-550x1200x75SC-600x1200x75SC-600x1500x80SC-650x1600x80SC-650x1700x80SC-700x1700x80SC-800x2300x85SC-850x2100x85SC-850x2300x85SC-900x2400x85SH-300x600x70SH-340x510x30SH-340x660x30SH-350x800x75SH-400x950x75SH-405x600x35SH-405x780x35SH-410x900x75SH-450x900x75SH-495x720x40SH-495x940x40SH-500x1000x75SH-510x1000x75SH-510x1200x75SH-510x1300x75SH-510x850x75SH-550x1200x75SH-600x1200x75SH-600x1500x80SH-650x1600x80SH-650x1700x80SH-700x1700x80SH-800x2300x85SH-850x2100x85SH-850x2300x85SH-900x2400x85SL-400x400x70SL-500x500x70SL-630x630x70SL-800x800x70SM-300x300x40SM-400x400x40SM-400x400x70SM-500x500x40SM-500x500x70SM-600x600x45SM-630x630x40SM-630x630x70SM-800x800x70SP-300x300x40SP-400x400x40SP-500x500x40SP-600x600x45SP-630x630x40SP-800x800x70ST-300x600x70ST-350x800x75ST-400x950x75ST-410x900x75ST-450x900x75ST-500x1000x75ST-510x1000x75ST-510x1200x75ST-510x1300x75ST-510x850x75ST-550x1200x75ST-600x1200x75ST-600x1500x80ST-650x1600x80ST-650x1700x80ST-700x1700x80ST-800x2300x85ST-850x2100x85ST-850x2300x85ST-900x2400x85

Get in touch about this product

Send us your details and we'll come back with pricing, availability and specifications.

MC Sub Table

ST / SC / SH · Taiwan

Both ground & paralleled within 0.010/500mm
Material: FCD600~60kgs/mm² ductile iron (High tensile casting)
Annealing.

sub_table_dimensions (mm)
order_no	model	a	b	c
07870002	ST-300x600x70	300	600	70
07870004	ST-350x800x75	350	800	75
07870006	ST-400x950x75	400	950	75
07870008	ST-410x900x75	410	900	75
07870010	ST-450x900x75	450	900	75
07870012	ST-500x1000x75	500	1000	75
07870014	ST-510x850x75	510	850	75
07870016	ST-510x1000x75	510	1000	75
07870018	ST-510x1200x75	510	1200	75
07870020	ST-510x1300x75	510	1300	75
07870022	ST-550x1200x75	550	1200	75
07870024	ST-600x1200x75	600	1200	75
07870026	ST-600x1500x80	600	1500	80
07870028	ST-650x1600x80	650	1600	80
07870030	ST-650x1700x80	650	1700	80
07870032	ST-700x1700x80	700	1700	80
07870034	ST-800x2300x85	800	2300	85
07870036	ST-850x2100x85	850	2100	85
07870038	ST-850x2300x85	850	2300	85
07870040	ST-900x2400x85	900	2400	85
07872002	SC-300x600x70	300	600	70
07872004	SC-350x800x75	350	800	75
07872006	SC-400x950x75	400	950	75
07872008	SC-410x900x75	410	900	75
07872010	SC-450x900x75	450	900	75
07872012	SC-500x1000x75	500	1000	75
07872014	SC-510x850x75	510	850	75
07872016	SC-510x1000x75	510	1000	75
07872018	SC-510x1200x75	510	1200	75
07872020	SC-510x1300x75	510	1300	75
07872022	SC-550x1200x75	550	1200	75
07872024	SC-600x1200x75	600	1200	75
07872026	SC-600x1500x80	600	1500	80
07872028	SC-650x1600x80	650	1600	80
07872030	SC-650x1700x80	650	1700	80
07872032	SC-700x1700x80	700	1700	80
07872034	SC-800x2300x85	800	2300	85
07872036	SC-850x2100x85	850	2100	85
07872038	SC-850x2300x85	850	2300	85
07872040	SC-900x2400x85	900	2400	85
07874002	SH-300x600x70	300	600	70
07874004	SH-350x800x75	350	800	75
07874006	SH-400x950x75	400	950	75
07874008	SH-410x900x75	410	900	75
07874010	SH-450x900x75	450	900	75
07874012	SH-500x1000x75	500	1000	75
07874014	SH-510x850x75	510	850	75
07874016	SH-510x1000x75	510	1000	75
07874018	SH-510x1200x75	510	1200	75
07874020	SH-510x1300x75	510	1300	75
07874022	SH-550x1200x75	550	1200	75
07874024	SH-600x1200x75	600	1200	75
07874026	SH-600x1500x80	600	1500	80
07874028	SH-650x1600x80	650	1600	80
07874030	SH-650x1700x80	650	1700	80
07874032	SH-700x1700x80	700	1700	80
07874034	SH-800x2300x85	800	2300	85
07874036	SH-850x2100x85	850	2100	85
07874038	SH-850x2300x85	850	2300	85
07874040	SH-900x2400x85	900	2400	85
07874042	SH-340x510x30	340	510	30
07874044	SH-340x660x30	340	660	30
07874046	SH-405x600x35	405	600	35
07874048	SH-405x780x35	405	780	35
07874050	SH-495x720x40	495	720	40
07874052	SH-495x940x40	495	940	40

Order references
Code	Model
07870028	ST-650x1600x80
07870030	ST-650x1700x80
07870032	ST-700x1700x80
07870034	ST-800x2300x85
07870036	ST-850x2100x85
07870038	ST-850x2300x85
07870040	ST-900x2400x85
07872002	SC-300x600x70
07872004	SC-350x800x75
07872006	SC-400x950x75
07872008	SC-410x900x75
07872010	SC-450x900x75
07872012	SC-500x1000x75
07872014	SC-510x850x75
07872016	SC-510x1000x75
07872018	SC-510x1200x75
07872020	SC-510x1300x75
07872022	SC-550x1200x75
07872024	SC-600x1200x75
07872026	SC-600x1500x80
07872028	SC-650x1600x80
07872030	SC-650x1700x80
07872032	SC-700x1700x80
07872034	SC-800x2300x85
07872036	SC-850x2100x85
07872038	SC-850x2300x85
07872040	SC-900x2400x85
07874002	SH-300x600x70
07874004	SH-350x800x75
07874006	SH-400x950x75
07874008	SH-410x900x75
07874010	SH-450x900x75
07874012	SH-500x1000x75
07874014	SH-510x850x75
07874016	SH-510x1000x75
07874018	SH-510x1200x75
07874020	SH-510x1300x75
07874022	SH-550x1200x75
07874024	SH-600x1200x75
07874026	SH-600x1500x80
07874028	SH-650x1600x80
07874030	SH-650x1700x80
07874032	SH-700x1700x80
07874034	SH-800x2300x85
07874036	SH-850x2100x85
07874038	SH-850x2300x85
07874040	SH-900x2400x85
07874042	SH-340x510x30
07874044	SH-340x660x30
07874046	SH-405x600x35
07874048	SH-405x780x35
07874050	SH-495x720x40
07874052	SH-495x940x40
07870002	ST-300x600x70
07870004	ST-350x800x75
07870006	ST-400x950x75
07870008	ST-410x900x75
07870010	ST-450x900x75
07870012	ST-500x1000x75
07870014	ST-510x850x75
07870016	ST-510x1000x75
07870018	ST-510x1200x75
07870020	ST-510x1300x75
07870022	ST-550x1200x75
07870024	ST-600x1200x75
07870026	ST-600x1500x80

※Please fill D.E.F.K.PITCH dimension of yourself. ※Accept special order, T-slots as ISO. Diagrams show T-slot type, square-pocket type and tapped-hole type; PITCH:50m/m, K: M16x2Px40L.

MC Sub Plate (SP / SL / SM)

SP / SL / SM · Taiwan

sp_sl_dimensions (mm)
order_no	model	a	b	c	d	f	k
07876002	SP-300x300x40	300	40	240	—	—	—
07876004	SP-400x400x40	400	40	300	—	—	—
07876006	SP-500x500x40	500	40	400	—	—	—
07876008	SP-600x600x45	600	45	500	—	—	—
07876010	SP-630x630x40	630	40	500	—	—	—
07876012	SP-800x800x70	800	70	640	—	—	—
07878002	SL-400x400x70	400	70	300	50	100	18
07878004	SL-500x500x70	500	70	400	50	100	18
07878006	SL-630x630x70	630	70	500	65	100	18
07878008	SL-800x800x70	800	70	640	50	100	18

sm_dimensions (mm)
order_no	model	a	b	c	d	e
07880002	SM-300x300x40	300	40	240	50	50
07880004	SM-400x400x40	400	40	320	50	50
07880006	SM-500x500x40	500	40	400	50	50
07880008	SM-600x600x45	600	45	500	50	50
07880010	SM-630x630x40	630	40	500	50	50
07880012	SM-400x400x70	400	70	320	50	50
07880014	SM-500x500x70	500	70	400	50	50
07880016	SM-630x630x70	630	70	500	50	50
07880018	SM-800x800x70	800	70	640	50	50

Order references
Code	Model
07876002	SP-300x300x40
07876004	SP-400x400x40
07876006	SP-500x500x40
07876008	SP-600x600x45
07876010	SP-630x630x40
07876012	SP-800x800x70
07878002	SL-400x400x70
07878004	SL-500x500x70
07878006	SL-630x630x70
07878008	SL-800x800x70
07880002	SM-300x300x40
07880004	SM-400x400x40
07880006	SM-500x500x40
07880008	SM-600x600x45
07880010	SM-630x630x40
07880012	SM-400x400x70
07880014	SM-500x500x70
07880016	SM-630x630x70
07880018	SM-800x800x70

※Accept special order. SP = plain plate with 4-M16; SL = square-pocket / T-slot type, F=PITCH, K=18; SM = tapped-hole type, M16 x 2P, PITCH 50mm, 4-M16. No printed sub-heading on the page - title inferred from the SP/SL/SM diagram labels.

MC Tooling Blocks (4 / 2 Face Type)

Taiwan

Material: FCD600~60kgs/mm² ductile iron. (High tensile casting)
Heat-Treatment-Annealing.
One piece casting of bed and column.

Banner and dimension diagrams only at the foot of this page (4 FACE TYPE and 2 FACE TYPE, CAP 6-M16, M20, geometric tolerance 0.02/300). Order/model table is not printed on this page - it continues overleaf.
