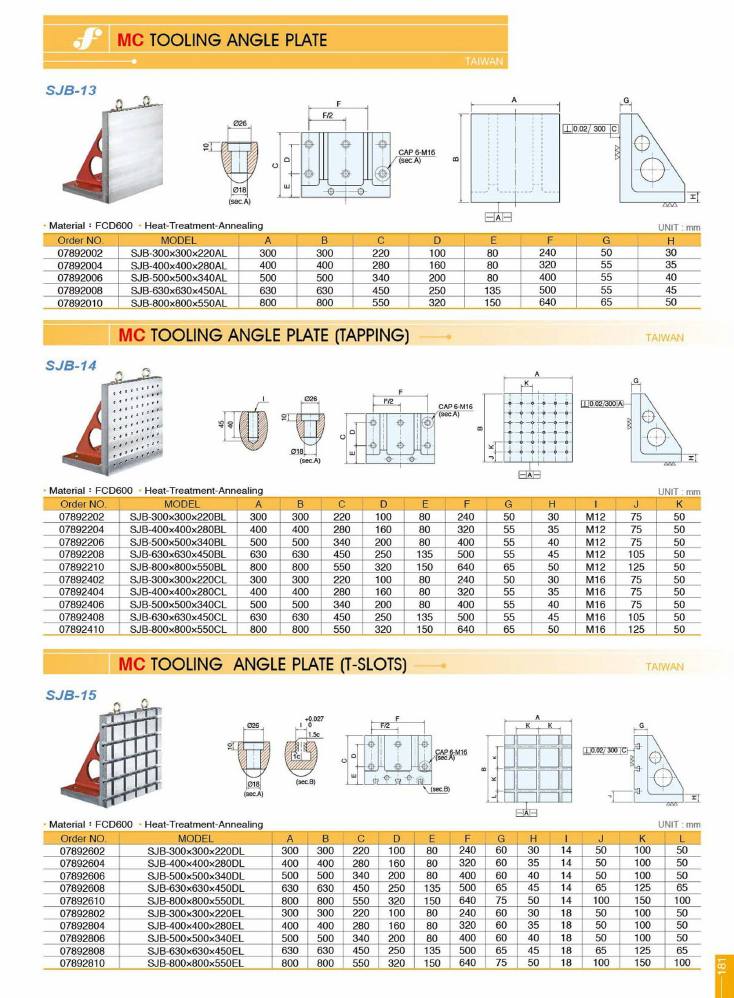

Frejoth accessory catalogue · Page 181
MC Tooling Angle Plate
Models on this page
SJB-300x300x220ALSJB-300x300x220BLSJB-300x300x220CLSJB-300x300x220DLSJB-300x300x220ELSJB-400x400x280ALSJB-400x400x280BLSJB-400x400x280CLSJB-400x400x280DLSJB-400x400x280ELSJB-500x500x340ALSJB-500x500x340BLSJB-500x500x340CLSJB-500x500x340DLSJB-500x500x340ELSJB-630x630x450ALSJB-630x630x450BLSJB-630x630x450CLSJB-630x630x450DLSJB-630x630x450ELSJB-800x800x550ALSJB-800x800x550BLSJB-800x800x550CLSJB-800x800x550DLSJB-800x800x550EL
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
MC Tooling Angle Plate
SJB-13 · Taiwan
| order_no | model | a | b | c | d | e | f | g | h |
|---|---|---|---|---|---|---|---|---|---|
| 07892002 | SJB-300x300x220AL | 300 | 300 | 220 | 100 | 80 | 240 | 50 | 30 |
| 07892004 | SJB-400x400x280AL | 400 | 400 | 280 | 160 | 80 | 320 | 55 | 35 |
| 07892006 | SJB-500x500x340AL | 500 | 500 | 340 | 200 | 80 | 400 | 55 | 40 |
| 07892008 | SJB-630x630x450AL | 630 | 630 | 450 | 250 | 135 | 500 | 55 | 45 |
| 07892010 | SJB-800x800x550AL | 800 | 800 | 550 | 320 | 150 | 640 | 65 | 50 |
| Code | Model |
|---|---|
| 07892002 | SJB-300x300x220AL |
| 07892004 | SJB-400x400x280AL |
| 07892006 | SJB-500x500x340AL |
| 07892008 | SJB-630x630x450AL |
| 07892010 | SJB-800x800x550AL |
Material: FCD600. Heat-Treatment-Annealing. Lifting holes ø26/ø18 (sec.A), CAP 6-M16 (sec.A). Geometric tolerance 0.02/300 C.
MC Tooling Angle Plate (Tapping)
SJB-14 · Taiwan
| order_no | model | a | b | c | d | e | f | g | h | i | j | k |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07892202 | SJB-300x300x220BL | 300 | 300 | 220 | 100 | 80 | 240 | 50 | 30 | M12 | 75 | 50 |
| 07892204 | SJB-400x400x280BL | 400 | 400 | 280 | 160 | 80 | 320 | 55 | 35 | M12 | 75 | 50 |
| 07892206 | SJB-500x500x340BL | 500 | 500 | 340 | 200 | 80 | 400 | 55 | 40 | M12 | 75 | 50 |
| 07892208 | SJB-630x630x450BL | 630 | 630 | 450 | 250 | 135 | 500 | 55 | 45 | M12 | 105 | 50 |
| 07892210 | SJB-800x800x550BL | 800 | 800 | 550 | 320 | 150 | 640 | 65 | 50 | M12 | 125 | 50 |
| 07892402 | SJB-300x300x220CL | 300 | 300 | 220 | 100 | 80 | 240 | 50 | 30 | M16 | 75 | 50 |
| 07892404 | SJB-400x400x280CL | 400 | 400 | 280 | 160 | 80 | 320 | 55 | 35 | M16 | 75 | 50 |
| 07892406 | SJB-500x500x340CL | 500 | 500 | 340 | 200 | 80 | 400 | 55 | 40 | M16 | 75 | 50 |
| 07892408 | SJB-630x630x450CL | 630 | 630 | 450 | 250 | 135 | 500 | 55 | 45 | M16 | 105 | 50 |
| 07892410 | SJB-800x800x550CL | 800 | 800 | 550 | 320 | 150 | 640 | 65 | 50 | M16 | 125 | 50 |
| Code | Model |
|---|---|
| 07892202 | SJB-300x300x220BL |
| 07892204 | SJB-400x400x280BL |
| 07892206 | SJB-500x500x340BL |
| 07892208 | SJB-630x630x450BL |
| 07892210 | SJB-800x800x550BL |
| 07892402 | SJB-300x300x220CL |
| 07892404 | SJB-400x400x280CL |
| 07892406 | SJB-500x500x340CL |
| 07892408 | SJB-630x630x450CL |
| 07892410 | SJB-800x800x550CL |
Material: FCD600. Heat-Treatment-Annealing. Tapped face grid (J x K pitch), tap depth 45/40. Lifting holes ø26/ø18 (sec.A), CAP 6-M16 (sec.A). Geometric tolerance 0.02/300 A.
MC Tooling Angle Plate (T-Slots)
SJB-15 · Taiwan
| order_no | model | a | b | c | d | e | f | g | h | i | j | k | l |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 07892602 | SJB-300x300x220DL | 300 | 300 | 220 | 100 | 80 | 240 | 60 | 30 | 14 | 50 | 100 | 50 |
| 07892604 | SJB-400x400x280DL | 400 | 400 | 280 | 160 | 80 | 320 | 60 | 35 | 14 | 50 | 100 | 50 |
| 07892606 | SJB-500x500x340DL | 500 | 500 | 340 | 200 | 80 | 400 | 60 | 40 | 14 | 50 | 100 | 50 |
| 07892608 | SJB-630x630x450DL | 630 | 630 | 450 | 250 | 135 | 500 | 65 | 45 | 14 | 65 | 125 | 65 |
| 07892610 | SJB-800x800x550DL | 800 | 800 | 550 | 320 | 150 | 640 | 75 | 50 | 14 | 100 | 150 | 100 |
| 07892802 | SJB-300x300x220EL | 300 | 300 | 220 | 100 | 80 | 240 | 60 | 30 | 18 | 50 | 100 | 50 |
| 07892804 | SJB-400x400x280EL | 400 | 400 | 280 | 160 | 80 | 320 | 60 | 35 | 18 | 50 | 100 | 50 |
| 07892806 | SJB-500x500x340EL | 500 | 500 | 340 | 200 | 80 | 400 | 60 | 40 | 18 | 50 | 100 | 50 |
| 07892808 | SJB-630x630x450EL | 630 | 630 | 450 | 250 | 135 | 500 | 65 | 45 | 18 | 65 | 125 | 65 |
| 07892810 | SJB-800x800x550EL | 800 | 800 | 550 | 320 | 150 | 640 | 75 | 50 | 18 | 100 | 150 | 100 |
| Code | Model |
|---|---|
| 07892602 | SJB-300x300x220DL |
| 07892604 | SJB-400x400x280DL |
| 07892606 | SJB-500x500x340DL |
| 07892608 | SJB-630x630x450DL |
| 07892610 | SJB-800x800x550DL |
| 07892802 | SJB-300x300x220EL |
| 07892804 | SJB-400x400x280EL |
| 07892806 | SJB-500x500x340EL |
| 07892808 | SJB-630x630x450EL |
| 07892810 | SJB-800x800x550EL |
Material: FCD600. Heat-Treatment-Annealing. T-slot I +0.027/0, 1.5c/1c chamfer (sec.B). Lifting holes ø26/ø18 (sec.A), CAP 6-M16 (sec.A). Geometric tolerance 0.02/300 C.
