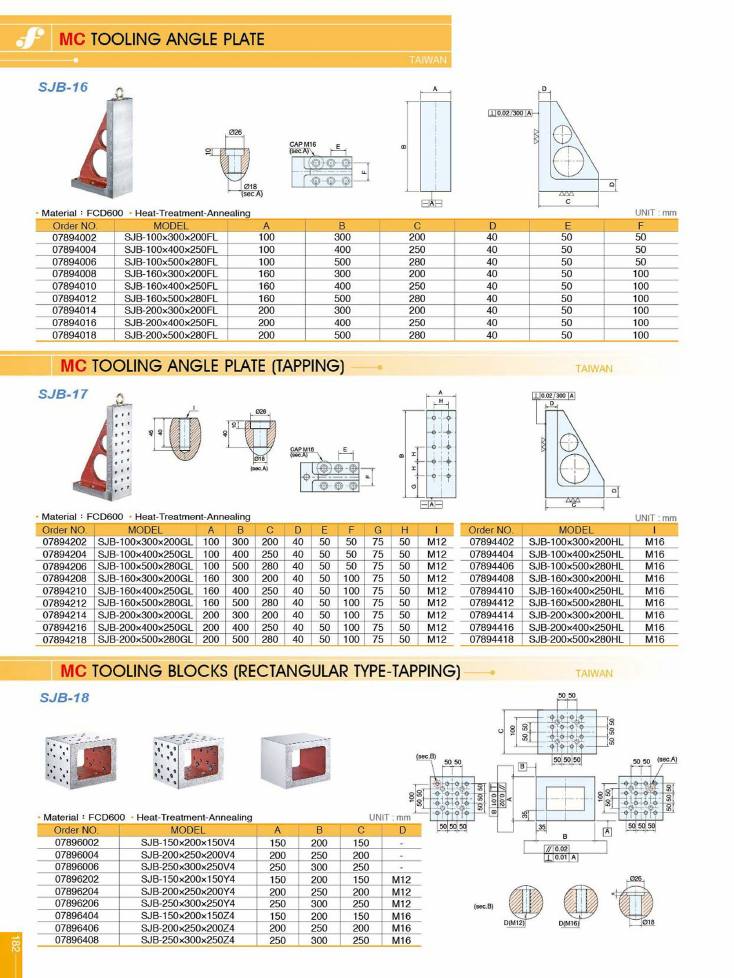

Frejoth accessory catalogue · Page 182
MC Tooling Angle Plate
Models on this page
SJB-100x300x200FLSJB-100x300x200GLSJB-100x300x200HLSJB-100x400x250FLSJB-100x400x250GLSJB-100x400x250HLSJB-100x500x280FLSJB-100x500x280GLSJB-100x500x280HLSJB-150x200x150V4SJB-150x200x150Y4SJB-150x200x150Z4SJB-160x300x200FLSJB-160x300x200GLSJB-160x300x200HLSJB-160x400x250FLSJB-160x400x250GLSJB-160x400x250HLSJB-160x500x280FLSJB-160x500x280GLSJB-160x500x280HLSJB-200x250x200V4SJB-200x250x200Y4SJB-200x250x200Z4SJB-200x300x200FLSJB-200x300x200GLSJB-200x300x200HLSJB-200x400x250FLSJB-200x400x250GLSJB-200x400x250HLSJB-200x500x280FLSJB-200x500x280GLSJB-200x500x280HLSJB-250x300x250V4SJB-250x300x250Y4SJB-250x300x250Z4
Get in touch about this product
Send us your details and we'll come back with pricing, availability and specifications.
MC Tooling Angle Plate
SJB-16 · Taiwan
| order_no | model | a | b | c | d | e | f |
|---|---|---|---|---|---|---|---|
| 07894002 | SJB-100x300x200FL | 100 | 300 | 200 | 40 | 50 | 50 |
| 07894004 | SJB-100x400x250FL | 100 | 400 | 250 | 40 | 50 | 50 |
| 07894006 | SJB-100x500x280FL | 100 | 500 | 280 | 40 | 50 | 50 |
| 07894008 | SJB-160x300x200FL | 160 | 300 | 200 | 40 | 50 | 100 |
| 07894010 | SJB-160x400x250FL | 160 | 400 | 250 | 40 | 50 | 100 |
| 07894012 | SJB-160x500x280FL | 160 | 500 | 280 | 40 | 50 | 100 |
| 07894014 | SJB-200x300x200FL | 200 | 300 | 200 | 40 | 50 | 100 |
| 07894016 | SJB-200x400x250FL | 200 | 400 | 250 | 40 | 50 | 100 |
| 07894018 | SJB-200x500x280FL | 200 | 500 | 280 | 40 | 50 | 100 |
| Code | Model |
|---|---|
| 07894016 | SJB-200x400x250FL |
| 07894018 | SJB-200x500x280FL |
| 07894002 | SJB-100x300x200FL |
| 07894004 | SJB-100x400x250FL |
| 07894006 | SJB-100x500x280FL |
| 07894008 | SJB-160x300x200FL |
| 07894010 | SJB-160x400x250FL |
| 07894012 | SJB-160x500x280FL |
| 07894014 | SJB-200x300x200FL |
Material: FCD600. Heat-Treatment-Annealing. Lifting eye ø26 / ø18 with CAP M16 (sec.A). Geometric tolerance callout 0.02/300 A.
MC Tooling Angle Plate (Tapping)
SJB-17 · Taiwan
| order_no | model | a | b | c | d | e | f | g | h | i |
|---|---|---|---|---|---|---|---|---|---|---|
| 07894202 | SJB-100x300x200GL | 100 | 300 | 200 | 40 | 50 | 50 | 75 | 50 | M12 |
| 07894204 | SJB-100x400x250GL | 100 | 400 | 250 | 40 | 50 | 50 | 75 | 50 | M12 |
| 07894206 | SJB-100x500x280GL | 100 | 500 | 280 | 40 | 50 | 50 | 75 | 50 | M12 |
| 07894208 | SJB-160x300x200GL | 160 | 300 | 200 | 40 | 50 | 100 | 75 | 50 | M12 |
| 07894210 | SJB-160x400x250GL | 160 | 400 | 250 | 40 | 50 | 100 | 75 | 50 | M12 |
| 07894212 | SJB-160x500x280GL | 160 | 500 | 280 | 40 | 50 | 100 | 75 | 50 | M12 |
| 07894214 | SJB-200x300x200GL | 200 | 300 | 200 | 40 | 50 | 100 | 75 | 50 | M12 |
| 07894216 | SJB-200x400x250GL | 200 | 400 | 250 | 40 | 50 | 100 | 75 | 50 | M12 |
| 07894218 | SJB-200x500x280GL | 200 | 500 | 280 | 40 | 50 | 100 | 75 | 50 | M12 |
| order_no | model | i |
|---|---|---|
| 07894402 | SJB-100x300x200HL | M16 |
| 07894404 | SJB-100x400x250HL | M16 |
| 07894406 | SJB-100x500x280HL | M16 |
| 07894408 | SJB-160x300x200HL | M16 |
| 07894410 | SJB-160x400x250HL | M16 |
| 07894412 | SJB-160x500x280HL | M16 |
| 07894414 | SJB-200x300x200HL | M16 |
| 07894416 | SJB-200x400x250HL | M16 |
| 07894418 | SJB-200x500x280HL | M16 |
| Code | Model |
|---|---|
| 07894202 | SJB-100x300x200GL |
| 07894204 | SJB-100x400x250GL |
| 07894206 | SJB-100x500x280GL |
| 07894208 | SJB-160x300x200GL |
| 07894210 | SJB-160x400x250GL |
| 07894212 | SJB-160x500x280GL |
| 07894214 | SJB-200x300x200GL |
| 07894216 | SJB-200x400x250GL |
| 07894218 | SJB-200x500x280GL |
| 07894402 | SJB-100x300x200HL |
| 07894404 | SJB-100x400x250HL |
| 07894406 | SJB-100x500x280HL |
| 07894408 | SJB-160x300x200HL |
| 07894410 | SJB-160x400x250HL |
| 07894412 | SJB-160x500x280HL |
| 07894414 | SJB-200x300x200HL |
| 07894416 | SJB-200x400x250HL |
| 07894418 | SJB-200x500x280HL |
Material: FCD600. Heat-Treatment-Annealing. Two order-number series printed side by side: the GL series is tapped M12 (column I), the HL series is the same plate tapped M16. Geometric tolerance callout 0.02/300 A.
MC Tooling Blocks (Rectangular Type-Tapping)
SJB-18 · Taiwan
| order_no | model | a | b | c | d |
|---|---|---|---|---|---|
| 07896002 | SJB-150x200x150V4 | 150 | 200 | 150 | — |
| 07896004 | SJB-200x250x200V4 | 200 | 250 | 200 | — |
| 07896006 | SJB-250x300x250V4 | 250 | 300 | 250 | — |
| 07896202 | SJB-150x200x150Y4 | 150 | 200 | 150 | M12 |
| 07896204 | SJB-200x250x200Y4 | 200 | 250 | 200 | M12 |
| 07896206 | SJB-250x300x250Y4 | 250 | 300 | 250 | M12 |
| 07896404 | SJB-150x200x150Z4 | 150 | 200 | 150 | M16 |
| 07896406 | SJB-200x250x200Z4 | 200 | 250 | 200 | M16 |
| 07896408 | SJB-250x300x250Z4 | 250 | 300 | 250 | M16 |
| Code | Model |
|---|---|
| 07896002 | SJB-150x200x150V4 |
| 07896004 | SJB-200x250x200V4 |
| 07896006 | SJB-250x300x250V4 |
| 07896202 | SJB-150x200x150Y4 |
| 07896204 | SJB-200x250x200Y4 |
| 07896206 | SJB-250x300x250Y4 |
| 07896404 | SJB-150x200x150Z4 |
| 07896406 | SJB-200x250x200Z4 |
| 07896408 | SJB-250x300x250Z4 |
Material: FCD600. Heat-Treatment-Annealing. Tapping pitch 50/50 on each face; D(M12) and D(M16) counterbore details ø26/ø18. Geometric tolerance callouts 0.02 and 0.01 A.
